Table 135

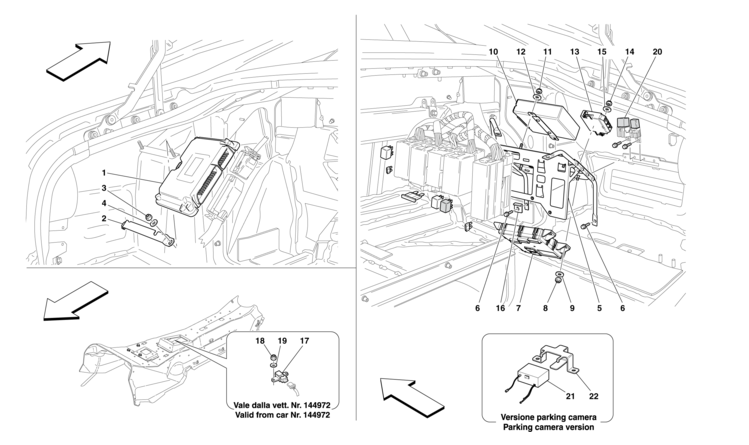

Table 135 - LUGGAGE COMPARTMENT ECUs

Ref.Part#Qty.DescriptionPrice
12136231
ELECTRONICALLY CONTROLLED GEARBOX ECU -Applicable for F1 gearbox- -Applicable up to gearbox No. 197- -Applicable up to engine No. 90177-

Part#: 213623 Qty: 1

12163921
ELECTRONICALLY CONTROLLED GEARBOX ECU -Applicable for F1 gearbox- -Applicable from gearbox No. 3- -Applicable from engine No. 90178- -No longer supplied- -Replaced by 219589-

Part#: 216392 Qty: 1

12195891
ELECTRONICALLY CONTROLLED GEARBOX ECU -Applicable for F1 gearbox- -Applicable from gearbox No. 3 up to gearbox No. 728 - -Applicable from engine No. 90178-

Part#: 219589 Qty: 1

12215011
ELECTRONICALLY CONTROLLED GEARBOX ECU -Applicable for F1 gearbox- -Applicable from gearbox No. 729 up to gearbox No. 1385 -

Part#: 221501 Qty: 1

12349671
ELECTRONICALLY CONTROLLED GEARBOX ECU -Applicable for F1 gearbox- -Applicable from gearbox No. 1386- -Applicable until depletion-

Part#: 234967 Qty: 1

12406681
ELECTRONICALLY CONTROLLED GEARBOX ECU -Applicable for F1 gearbox- -Applicable up to gearbox No. 234967-

Part#: 240668 Qty: 1

12416681
ELECTRONICALLY CONTROLLED GEARBOX ECU -Applicable for enhanced version- -Applicable for ''60

Part#: 241668 Qty: 1

12434751
ELECTRONICALLY CONTROLLED GEARBOX ECU -MY 08- -Applicable for enhanced version- -Applicable for ''60

Part#: 243475 Qty: 1

12447771
ELECTRONICALLY CONTROLLED GEARBOX ECU -MY 08- -Applicable for enhanced version- -Applicable for USA, CDN- -Applicable for F1 gearbox-

Part#: 244777 Qty: 1

12215021
ELECTRONICALLY CONTROLLED GEARBOX ECU -HGTC version- -Optional- -Applicable for F1 gearbox- -Applicable from gearbox No. 729- -No longer supplied- -Replaced by 240673-

Part#: 221502 Qty: 1

12406731
ELECTRONICALLY CONTROLLED GEARBOX ECU -HGTC version- -Optional- -Applicable for F1 gearbox-

Part#: 240673 Qty: 1

12334941
ELECTRONICALLY CONTROLLED GEARBOX ECU -Applicable for Taiwan- -Applicable from MY 07- -Applicable for F1 gearbox- -No longer supplied- -Replaced by 240671-

Part#: 233494 Qty: 1

12406711
ELECTRONICALLY CONTROLLED GEARBOX ECU -Applicable for Taiwan- -Applicable from MY 07- -Applicable for F1 gearbox- -No longer supplied- -Replaced by 241670-

Part#: 240671 Qty: 1

12416701
ELECTRONICALLY CONTROLLED GEARBOX ECU -Applicable for Taiwan- -Applicable for F1 gearbox-

Part#: 241670 Qty: 1

12334931
ELECTRONICALLY CONTROLLED GEARBOX ECU -Applicable for Taiwan- -Applicable from MY 07- -HGTC version- -Optional- -Applicable for F1 gearbox- -No longer supplied- -Replaced by 240675-

Part#: 233493 Qty: 1

12406751
ELECTRONICALLY CONTROLLED GEARBOX ECU -Applicable for Taiwan- -Applicable from MY 07- -HGTC version- -Optional- -Applicable for F1 gearbox-

Part#: 240675 Qty: 1

12349681
ELECTRONICALLY CONTROLLED GEARBOX ECU -Applicable from MY 07- -Applicable for J- -Applicable for F1 gearbox- -No longer supplied- -Replaced by 240669-

Part#: 234968 Qty: 1

12406691
ELECTRONICALLY CONTROLLED GEARBOX ECU -Applicable from MY 07- -Applicable for J- -Applicable for F1 gearbox-

Part#: 240669 Qty: 1

12416691
ELECTRONICALLY CONTROLLED GEARBOX ECU -Applicable for enhanced version- -Applicable for ''60

Part#: 241669 Qty: 1

12434761
ELECTRONICALLY CONTROLLED GEARBOX ECU -Applicable for enhanced version- -Applicable for ''60

Part#: 243476 Qty: 1

12349691
ELECTRONICALLY CONTROLLED GEARBOX ECU -Applicable from MY 07- -HGTC version- -Optional- -Applicable for J- -Applicable for F1 gearbox- -No longer supplied- -Replaced by 240674-

Part#: 234969 Qty: 1

12406741
ELECTRONICALLY CONTROLLED GEARBOX ECU -Applicable from MY 07- -HGTC version- -Optional- -Applicable for J- -Applicable for F1 gearbox-

Part#: 240674 Qty: 1

12372061
ELECTRONICALLY CONTROLLED GEARBOX ECU -Applicable for ''OTO''- -Not for USA, CDN, J- -Applicable for F1 gearbox- -No longer supplied- -Replaced by 237026-

Part#: 237206 Qty: 1

12370261
ELECTRONICALLY CONTROLLED GEARBOX ECU -Applicable for ''OTO''- -Not for USA, CDN, J- -Applicable for F1 gearbox- -Applicable until depletion-

Part#: 237026 Qty: 1

12517311
ELECTRONICALLY CONTROLLED GEARBOX ECU -Applicable for ''OTO''- -Not for USA, CDN, J- -Applicable for F1 gearbox- -Applicable after depletion of 237026-

Part#: 251731 Qty: 1

12372091
ELECTRONICALLY CONTROLLED GEARBOX ECU -Applicable for ''OTO''- -Applicable for J- -Applicable for F1 gearbox- -Applicable until depletion-

Part#: 237209 Qty: 1

12517321
ELECTRONICALLY CONTROLLED GEARBOX ECU -Applicable for ''OTO''- -Applicable for J- -Applicable for F1 gearbox- -Applicable after depletion of 237209-

Part#: 251732 Qty: 1

12372141
ELECTRONICALLY CONTROLLED GEARBOX ECU -Applicable for ''OTO''- -Applicable for USA, CDN- -Applicable for F1 gearbox- -Applicable until depletion-

Part#: 237214 Qty: 1

12517311
ELECTRONICALLY CONTROLLED GEARBOX ECU -Applicable for ''OTO''- -Applicable for USA, CDN- -Applicable for F1 gearbox- -Applicable after depletion of 237214-

Part#: 251731 Qty: 1

21915301
F1 ECU MOUNTING BRACKET -Applicable for F1 gearbox-

Part#: 191530 Qty: 1

3140592142
NUT -Applicable for F1 gearbox-
$0.50

Part#: 14059214 Qty: 2$0.50

4126203742
WASHER -Applicable for F1 gearbox-

Part#: 12620374 Qty: 2

51915171
ECU MOUNTING BRACKET

Part#: 191517 Qty: 1

6162970242
SCREW
$0.50

Part#: 16297024 Qty: 2$0.50

71913601
LUGGAGE COMPARTMENT ECU

Part#: 191360 Qty: 1

72361341
LUGGAGE COMPARTMENT ECU -Enhanced version- -Applicable for version without Bose NIT- -Applicable for J-

Part#: 236134 Qty: 1

81029484
NUT
$2.29

Part#: 102948 Qty: 4$2.29

9126378244
WASHER
$0.50

Part#: 12637824 Qty: 4$0.50

102056201
SKYHOOK ECU -Not for enhanced version- -Applicable up to Ass. No. 70534-

Part#: 205620 Qty: 1

102349251
SKYHOOK ECU -Enhanced version- -Applicable from Ass. No. 70535-

Part#: 234925 Qty: 1

102198801
SKYHOOK ECU -Not for enhanced version- -HGTC version- -Optional- -Applicable up to Ass. No. 70534-

Part#: 219880 Qty: 1

102349261
SKYHOOK ECU -Not for enhanced version- -HGTC version- -Optional- -Applicable from Ass. No. 70535-

Part#: 234926 Qty: 1

111691802
NUT
$0.25

Part#: 169180 Qty: 2$0.25

12126378242
WASHER
$0.50

Part#: 12637824 Qty: 2$0.50

132039631
PARKING SENSOR NODE -Not for front parking sensors-

Part#: 203963 Qty: 1

132215001
PARKING SENSOR NODE -Front parking sensors- -Optional-

Part#: 221500 Qty: 1

14158964111
NUT -Parking sensors-

Part#: 15896411 Qty: 1

15135791011
WASHER -Parking sensors-

Part#: 13579101 Qty: 1

161915222
BRACKET

Part#: 191522 Qty: 2

172060711
ACCELERATION SENSOR

Part#: 206071 Qty: 1

181691802
NUT
$0.25

Part#: 169180 Qty: 2$0.25

19126381242
WASHER
$0.29

Part#: 12638124 Qty: 2$0.29

202331001
50 A RELAY -No longer supplied- -Replaced by 233100-
$45.40

Part#: 233100 Qty: 1$45.40

202331001
F1 PUMP RELAY
$45.40

Part#: 233100 Qty: 1$45.40

212349961
PARKING CAMERA ECU

Part#: 234996 Qty: 1

222215671
ECU FASTENER BRACKET

Part#: 221567 Qty: 1
