Table 129

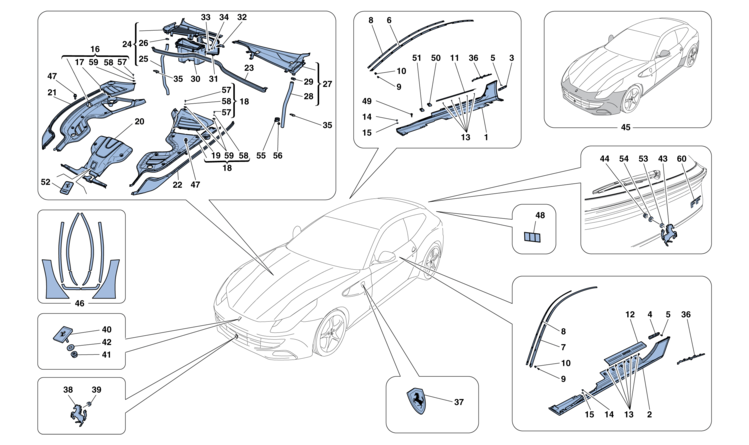

Table 129 - SHIELDS - EXTERNAL TRIM

Ref.Part#Qty.DescriptionPrice
1833422101
RH SILL TRIM LATERAL TRIM -No longer supplied- -Replaced by 83314910-

Part#: 83342210 Qty: 1

1833149101
RH SILL TRIM LATERAL TRIM
$3224.79

Part#: 83314910 Qty: 1$3224.79

2833423101
LH SILL TRIM LATERAL TRIM -No longer supplied- -Replaced by 83315010-

Part#: 83342310 Qty: 1

2833150101
LH SILL TRIM LATERAL TRIM

Part#: 83315010 Qty: 1

3833153001
REAR RH SILL TRIM BRACKET

Part#: 83315300 Qty: 1

4833154001
REAR LH SILL TRIM BRACKET

Part#: 83315400 Qty: 1

5116258246
SCREW -M6 X 18-
$1.49

Part#: 11625824 Qty: 6$1.49

6821697001
RH ROOF GUTTER MOULDING

Part#: 82169700 Qty: 1

7821698001
LH ROOF GUTTER MOULDING

Part#: 82169800 Qty: 1

8840204002
GUTTER RAIL TRIM SEAL

Part#: 84020400 Qty: 2

91608350128
SCREW -No longer supplied- -Replaced by 15538777-
$0.25

Part#: 16083501 Qty: 28$0.25

91553877728
SCREW
$0.75

Part#: 15538777 Qty: 28$0.75

101421548028
BLOCK
$1.00

Part#: 14215480 Qty: 28$1.00

11833151001
RH KICKPLATE

Part#: 83315100 Qty: 1

11840046001
RH KICKPLATE -Carbon-

Part#: 84004600 Qty: 1

11847652001
RH KICKPLATE -Alutex-

Part#: 84765200 Qty: 1

12833152001
LH KICKPLATE

Part#: 83315200 Qty: 1

12840048001
LH KICKPLATE -Carbon-

Part#: 84004800 Qty: 1

12847653001
LH KICKPLATE -Alutex-

Part#: 84765300 Qty: 1

138087490010
SCREW
$1.65

Part#: 80874900 Qty: 10$1.65

14821159006
SCREW -M6 X 12- -No longer supplied- -Replaced by 11625824-
$0.59

Part#: 82115900 Qty: 6$0.59

14116258246
SCREW -M6 X 18-
$1.49

Part#: 11625824 Qty: 6$1.49

14808749002
SCREW
$1.65

Part#: 80874900 Qty: 2$1.65

14808747001
SCREW -No longer supplied- -Replaced by 83442900-
$2.90

Part#: 80874700 Qty: 1$2.90

14834429001
SCREW
$2.25

Part#: 83442900 Qty: 1$2.25

15107324142
WASHER
$9.64

Part#: 10732414 Qty: 2$9.64

16837533001
RH LATERAL ENGINE COMPARTMENT COVER -Not for GD- -Applicable until depletion-

Part#: 83753300 Qty: 1

16849785001
RH LATERAL ENGINE COMPARTMENT COVER -Not for GD- -Applicable after depletion of 83753300-

Part#: 84978500 Qty: 1

16844873001
RH LATERAL ENGINE COMPARTMENT COVER -Applicable for GD-

Part#: 84487300 Qty: 1

17838967001
RH COVER
$569.07

Part#: 83896700 Qty: 1$569.07

18837534001
LH LATERAL ENGINE COMPARTMENT COVER -Applicable until depletion-

Part#: 83753400 Qty: 1

18849786001
LH LATERAL ENGINE COMPARTMENT COVER -Applicable after depletion of 83753400-

Part#: 84978600 Qty: 1

19838968001
LH COVER

Part#: 83896800 Qty: 1

20825027001
CENTRAL ENGINE COMPARTMENT COVER
$223.18

Part#: 82502700 Qty: 1$223.18

21833200001
RH SEAL

Part#: 83320000 Qty: 1

22833201001
LH SEAL

Part#: 83320100 Qty: 1

23833156001
UNDERWINDSCREEN TRAY SEAL

Part#: 83315600 Qty: 1

24837654001
COMPL. RH UNDERWINDSCREEN TRAY -Not for GD-

Part#: 83765400 Qty: 1

24839433001
COMPL. RH UNDERWINDSCREEN TRAY -Applicable for GD-

Part#: 83943300 Qty: 1

25837200001
CORRUGATED PIPE -L. 742 mm- -No longer supplied- -Replaced by 84865400-

Part#: 83720000 Qty: 1

25848654001
CORRUGATED PIPE -L. 792 mm-

Part#: 84865400 Qty: 1

26130004901
SCREW COLLAR
$1.90

Part#: 13000490 Qty: 1$1.90

27837655001
COMPL. LH UNDERWINDSCREEN TRAY -Not for GD-

Part#: 83765500 Qty: 1

27839434001
COMPL. LH UNDERWINDSCREEN TRAY -Applicable for GD-

Part#: 83943400 Qty: 1

28837201001
CORRUGATED PIPE -L. 692 mm- -No longer supplied- -Replaced by 83720000-

Part#: 83720100 Qty: 1

28837200001
CORRUGATED PIPE -L. 742 mm-

Part#: 83720000 Qty: 1

29130004901
SCREW COLLAR
$1.90

Part#: 13000490 Qty: 1$1.90

30840203001
AC UNIT AIR INTAKE TRAY, MOBILE PART -Not for GD-

Part#: 84020300 Qty: 1

30840271001
AC UNIT AIR INTAKE TRAY, MOBILE PART -Applicable for GD-

Part#: 84027100 Qty: 1

31840202001
AC UNIT AIR INTAKE TRAY, FIXED PART -Not for GD-

Part#: 84020200 Qty: 1

31840270001
AC UNIT AIR INTAKE TRAY, FIXED PART -Applicable for GD-

Part#: 84027000 Qty: 1

32840827001
BRACKET

Part#: 84082700 Qty: 1

33162849272
SCREW -M5 X 10- -No longer supplied- -Replaced by 16285127-

Part#: 16284927 Qty: 2

33162851272
SCREW -M5 X 16- -No longer supplied- -Replaced by 85692300-
$1.45

Part#: 16285127 Qty: 2$1.45

33856923002
SCREW -M5 X 20-
$1.75

Part#: 85692300 Qty: 2$1.75

34126381242
WASHER
$0.29

Part#: 12638124 Qty: 2$0.29

352067392
CABLE TIE -No longer supplied-
$6.94

Part#: 206739 Qty: 2$6.94

36816045002
PININFARINA BADGE
$118.74

Part#: 81604500 Qty: 2$118.74

37836281002
SQUADRA CORSE SHIELD BADGE -Version with shields-

Part#: 83628100 Qty: 2

38671652001
CAVALLINO RAMPANTE BADGE
$130.16

Part#: 67165200 Qty: 1$130.16

39161017112
NUT
$0.75

Part#: 16101711 Qty: 2$0.75

40653948001
FRONT BADGE
$344.76

Part#: 65394800 Qty: 1$344.76

411136471
NUT
$0.21

Part#: 113647 Qty: 1$0.21

42126381241
WASHER
$0.29

Part#: 12638124 Qty: 1$0.29

43802144001
CAVALLINO RAMPANTE BADGE
$123.50

Part#: 80214400 Qty: 1$123.50

44627903001
NUT
$0.24

Part#: 62790300 Qty: 1$0.24

45700020761
COMPL. FILM KIT -Not for USA, CDN-

Part#: 70002076 Qty: 1

45700020801
COMPL. FILM KIT -Applicable for USA, CDN-

Part#: 70002080 Qty: 1

45700020771
LH SIDE FILM KIT

Part#: 70002077 Qty: 1

45700020781
RH SIDE FILM KIT

Part#: 70002078 Qty: 1

45700020791
FRONT ADHESIVE FILM KIT -Not for USA, CDN-

Part#: 70002079 Qty: 1

45700020811
FRONT ADHESIVE FILM KIT -Applicable for USA, CDN-

Part#: 70002081 Qty: 1

46700020831
HIGH WEAR FILM KIT

Part#: 70002083 Qty: 1

47143041872
SCREW -M5 X 12-
$0.21

Part#: 14304187 Qty: 2$0.21

4725649021
SCREW
$2.50

Part#: 256490 Qty: 21$2.50

48847063001
ITALIAN FLAG BADGE -Optional-
$645.47

Part#: 84706300 Qty: 1$645.47

49808748002
CLIP
$4.02

Part#: 80874800 Qty: 2$4.02

50808743004
CLIP
$1.49

Part#: 80874300 Qty: 4$1.49

51672784001
BRACKET
$18.61

Part#: 67278400 Qty: 1$18.61

52697144001
SERIAL NUMBER PLATE

Part#: 69714400 Qty: 1

53609951002
RUBBER RING
$3.63

Part#: 60995100 Qty: 2$3.63

54105192242
WASHER
$0.12

Part#: 10519224 Qty: 2$0.12

55104488901
BRACKET WITH SHEATH

Part#: 10448890 Qty: 1

56140591111
NUT

Part#: 14059111 Qty: 1

57849271004
QUARTER TURN SCREW
$21.55

Part#: 84927100 Qty: 4$21.55

58839570004
FASTENING FOR SCREW
$6.75

Part#: 83957000 Qty: 4$6.75

59839143004
CLIP
$14.82

Part#: 83914300 Qty: 4$14.82

60851493001
FF LOGO -Applicable for CINA-

Part#: 85149300 Qty: 1
