Ferrari Philadelphia Parts

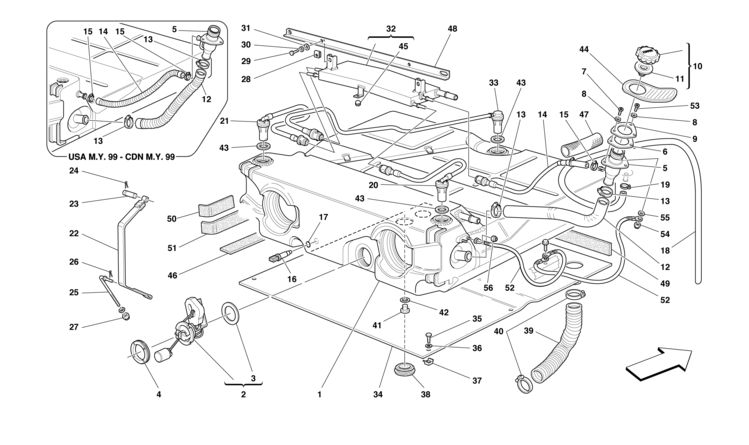

Table 13

Table 13 - FUEL TANK -Valid for USA M.Y. 99, CDN M.Y. 99, USA M.Y. 2000, CDN M.Y. 2000, USA M.Y. 2001 and CDN M.Y. 2001

Ref.Part#Qty.DescriptionPrice
11791781
FUEL TANK -Valid for USA M.Y. 99 and CDN M.Y. 99-

Part#: 179178 Qty: 1

11819261
FUEL TANK -Valid for USA M.Y. 2000 and CDN M.Y. 2000- -Not as spare part now- -Replaced by 186103-

Part#: 181926 Qty: 1

11861031
FUEL TANK -Valid for USA M.Y. 2000, CDN M.Y. 2000, USA M.Y. 2001 and CDN M.Y. 2001-

Part#: 186103 Qty: 1

21682381
COMPLETE FUEL LEVEL INDICATOR CONTROL

Part#: 168238 Qty: 1

31548021
GASKET
$163.28

Part#: 154802 Qty: 1$163.28

41214351
RING NUT
$127.80

Part#: 121435 Qty: 1$127.80

51712781
FILLER -Valid for USA M.Y. 99 and CDN M.Y. 99-

Part#: 171278 Qty: 1

51819321
FILLER -Valid for USA M.Y. 2000, CDN M.Y. 2000, USA M.Y. 2001 and CDN M.Y. 2001-

Part#: 181932 Qty: 1

61740951
GASKET

Part#: 174095 Qty: 1

7629267003
SCREW -For USA M.Y. 2000, CDN M.Y. 2000, USA M.Y. 2001 and CDN M.Y. 2001 q.ty 2-

Part#: 62926700 Qty: 3

8126012743
WASHER
$1.00

Part#: 12601274 Qty: 3$1.00

91740931
FLANGE

Part#: 174093 Qty: 1

102264481
PLUG
$483.72

Part#: 226448 Qty: 1$483.72

111801191
GASKET
$94.56

Part#: 180119 Qty: 1$94.56

121671311
FILLER-TANK CONNECTING PIPE -Valid for USA M.Y. 99 and CDN M.Y. 99-

Part#: 167131 Qty: 1

121819771
FILLER-TANK CONNECTING PIPE -Valid for USA M.Y. 2000, CDN M.Y. 2000, USA M.Y. 2001 and CDN M.Y. 2001-

Part#: 181977 Qty: 1

131701272
SCREW COLLAR

Part#: 170127 Qty: 2

141651321
VENT PIPE FROM TANK TO FILLER -Valid for USA M.Y. 99 and CDN M.Y. 99-
$47.50

Part#: 165132 Qty: 1$47.50

141822651
VENT PIPE FROM VAPOR SEPARATOR TO FILLER -Valid for USA M.Y. 2000, CDN M.Y. 2000, USA M.Y. 2001 and CDN M.Y. 2001-

Part#: 182265 Qty: 1

151640152
SCREW COLLAR -Valid for USA M.Y. 99 and CDN M.Y. 99-

Part#: 164015 Qty: 2

15134320701
COLLAR FOR SLEEVE -Valid for USA M.Y. 2000, CDN M.Y. 2000, USA M.Y. 2001 and CDN M.Y. 2001-
$1.25

Part#: 13432070 Qty: 1$1.25

161257691
TEMPERATURE SENSOR
$71.11

Part#: 125769 Qty: 1$71.11

171793211
GASKET
$19.80

Part#: 179321 Qty: 1$19.80

181798511
RUBBER HOSE

Part#: 179851 Qty: 1

191614901
SCREW COLLAR
$2.25

Part#: 161490 Qty: 1$2.25

201791911
R.H. VALVE COMPLETED WITH PIPING -Valid for USA M.Y. 99 and CDN M.Y. 99-

Part#: 179191 Qty: 1

201819361
R.H. VALVE COMPLETED WITH PIPING -Valid for USA M.Y. 2000, CDN M.Y. 2000, USA M.Y. 2001 and CDN M.Y. 2001-

Part#: 181936 Qty: 1

211791911
L.H. VALVE COMPLETED WITH PIPING -Valid for USA M.Y. 99 and CDN M.Y. 99-

Part#: 179191 Qty: 1

211819351
L.H. VALVE COMPLETED WITH PIPING -Valid for USA M.Y. 2000, CDN M.Y. 2000, USA M.Y. 2001 and CDN M.Y. 2001-

Part#: 181935 Qty: 1

221723402
FUEL TANK FASTENER -Valid for USA M.Y. 99 and CDN M.Y. 99-

Part#: 172340 Qty: 2

221816922
FUEL TANK FASTENER -Valid for USA M.Y. 2000, CDN M.Y. 2000, USA M.Y. 2001 and CDN M.Y. 2001-

Part#: 181692 Qty: 2

231034472
PIN

Part#: 103447 Qty: 2

24107964404
SPLIT PIN
$0.39

Part#: 10796440 Qty: 4$0.39

251275292
THREADED TIE ROD

Part#: 127529 Qty: 2

26107964402
SPLIT PIN
$0.39

Part#: 10796440 Qty: 2$0.39

271040302
NUT
$0.48

Part#: 104030 Qty: 2$0.48

28627663002
CLIP
$0.70

Part#: 62766300 Qty: 2$0.70

29109022242
SCREW -Valid for USA M.Y. 99 and CDN M.Y. 99-
$0.95

Part#: 10902224 Qty: 2$0.95

29109021242
SCREW -Valid for USA M.Y. 2000, CDN M.Y. 2000, USA M.Y. 2001 and CDN M.Y. 2001-
$0.65

Part#: 10902124 Qty: 2$0.65

301274942
WASHER -Valid for USA M.Y. 99 and CDN M.Y. 99-
$0.65

Part#: 127494 Qty: 2$0.65

30126397242
WASHER -Valid for USA M.Y. 2000, CDN M.Y. 2000, USA M.Y. 2001 and CDN M.Y. 2001-
$0.50

Part#: 12639724 Qty: 2$0.50

31105194242
WASHER -Valid for USA M.Y. 99 and CDN M.Y. 99-
$0.39

Part#: 10519424 Qty: 2$0.39

311274942
WASHER -Valid for USA M.Y. 2000, CDN M.Y. 2000, USA M.Y. 2001 and CDN M.Y. 2001-
$0.65

Part#: 127494 Qty: 2$0.65

321788661
DISAREATOR -Valid for USA M.Y. 99 and CDN M.Y. 99-

Part#: 178866 Qty: 1

321819311
DISAREATOR -Valid for USA M.Y. 2000, CDN M.Y. 2000, USA M.Y. 2001 and CDN M.Y. 2001-

Part#: 181931 Qty: 1

331699371
VALVE COMPLETED WITH PIPING -Valid for USA M.Y. 99 and CDN M.Y. 99-
$256.79

Part#: 169937 Qty: 1$256.79

331804691
VALVE COMPLETED WITH PIPING -Valid for USA M.Y. 2000, CDN M.Y. 2000, USA M.Y. 2001 and CDN M.Y. 2001-

Part#: 180469 Qty: 1

34650838001
UNDER TANK SHIELD

Part#: 65083800 Qty: 1

35109024244
SCREW
$1.00

Part#: 10902424 Qty: 4$1.00

36126437244
WASHER
$0.29

Part#: 12643724 Qty: 4$0.29

37606591004
NUT WITH CAGE

Part#: 60659100 Qty: 4

38647836001
RUBBER PLUG
$4.75

Part#: 64783600 Qty: 1$4.75

39650845002
AIR DELIVERY TUBE TO TANK

Part#: 65084500 Qty: 2

40130007904
SCREW COLLAR
$1.75

Part#: 13000790 Qty: 4$1.75

411480451
THREADED PLUG
$25.50

Part#: 148045 Qty: 1$25.50

421236221
O.R. GASKET
$1.90

Part#: 123622 Qty: 1$1.90

431699383
GASKET

Part#: 169938 Qty: 3

44629432001
RUBBER PROTECTION
$36.50

Part#: 62943200 Qty: 1$36.50

45146223871
PLUG -Valid for USA M.Y. 2000, CDN M.Y. 2000, USA M.Y. 2001 and CDN M.Y. 2001-

Part#: 14622387 Qty: 1

461566822
LOWER THICKNESS

Part#: 156682 Qty: 2

471711631
PROTECTION SHEATH -Valid for USA M.Y. 2000, CDN M.Y. 2000, USA M.Y. 2001 and CDN M.Y. 2001-

Part#: 171163 Qty: 1

481838501
BRACKET -Valid for USA M.Y. 2000, CDN M.Y. 2000, USA M.Y. 2001 and CDN M.Y. 2001-

Part#: 183850 Qty: 1

491670251
FRONT THICKNESS

Part#: 167025 Qty: 1

501836852
REAR THICKNESS -Valid for USA M.Y. 2000, CDN M.Y. 2000, USA M.Y. 2001 and CDN M.Y. 2001-

Part#: 183685 Qty: 2

511574112
REAR THICKNESS -Valid for USA M.Y. 99 and CDN M.Y. 99-

Part#: 157411 Qty: 2

511833872
REAR THICKNESS -Valid for USA M.Y. 2000, CDN M.Y. 2000, USA M.Y. 2001 and CDN M.Y. 2001-

Part#: 183387 Qty: 2

521842062
GROUND CABLE -Valid for USA M.Y. 2000, CDN M.Y. 2000, USA M.Y. 2001 and CDN M.Y. 2001-

Part#: 184206 Qty: 2

53147784181
SCREW -Valid for USA M.Y. 2000, CDN M.Y. 2000, USA M.Y. 2001 and CDN M.Y. 2001-
$1.25

Part#: 14778418 Qty: 1$1.25

541029481
NUT -Valid for USA M.Y. 2000, CDN M.Y. 2000, USA M.Y. 2001 and CDN M.Y. 2001-
$2.29

Part#: 102948 Qty: 1$2.29

55126482771
WASHER -Valid for USA M.Y. 2000, CDN M.Y. 2000, USA M.Y. 2001 and CDN M.Y. 2001-

Part#: 12648277 Qty: 1

561029481
NUT -Valid for USA M.Y. 2000, CDN M.Y. 2000, USA M.Y. 2001 and CDN M.Y. 2001-
$2.29

Part#: 102948 Qty: 1$2.29
