Table 5

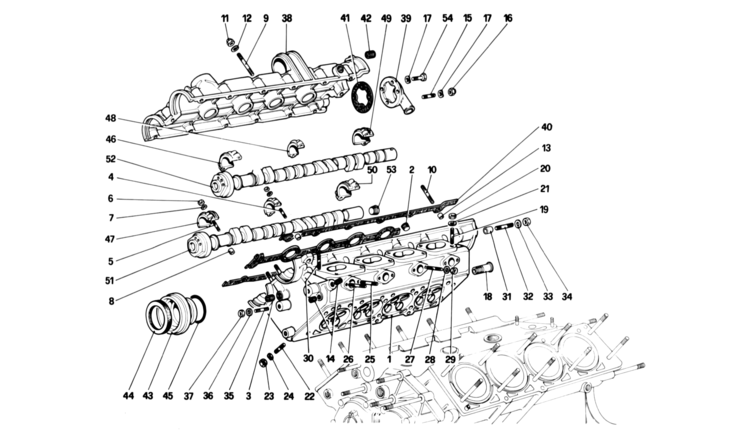

Table 5 - Cylinder head (Right)

Ref.Part#Qty.DescriptionPrice
1217081
Right cylinder head, complete

Part#: 121708 Qty: 1

11217091
Right cylinder head With assembly no. 121708

Part#: 121709 Qty: 1

2102697505
Plug
$2.25

Part#: 10269750 Qty: 5$2.25

3135260701
Heli-coil

Part#: 13526070 Qty: 1

410273512
Stud for intermediate caps
$39.80

Part#: 102735 Qty: 12$39.80

51027548
Stud for outer caps
$9.21

Part#: 102754 Qty: 8$9.21

61589621120
Nut

Part#: 15896211 Qty: 20

71119777320
Washer

Part#: 11197773 Qty: 20

810272520
Dowel
$2.25

Part#: 102725 Qty: 20$2.25

91354162112
Stud

Part#: 13541621 Qty: 12

10135417212
Stud

Part#: 13541721 Qty: 2

1110004414
Selflocking nut
$1.25

Part#: 100044 Qty: 14$1.25

121119777114
Washer

Part#: 11197771 Qty: 14

131027252
Dowel
$2.25

Part#: 102725 Qty: 2$2.25

14143261503
Plug
$1.25

Part#: 14326150 Qty: 3$1.25

15115005212
Stud

Part#: 11500521 Qty: 2

16125754112
Nut

Part#: 12575411 Qty: 2

17126012714
Washer

Part#: 12601271 Qty: 4

181062271
Nipple for heater
$22.50

Part#: 106227 Qty: 1$22.50

19135433219
Stud

Part#: 13543321 Qty: 9

201610081110
Nut

Part#: 16100811 Qty: 10

211119807110
Washer

Part#: 11198071 Qty: 10

22123545218
Stud securing exhaust manifold

Part#: 12354521 Qty: 8

231059388
Nut

Part#: 105938 Qty: 8

24105166718
Washer

Part#: 10516671 Qty: 8

25135416213
Short stud

Part#: 13541621 Qty: 3

26135417214
Long stud

Part#: 13541721 Qty: 4

27135418211
Stud for water manifold (cylinder no. 3)
$1.25

Part#: 13541821 Qty: 1$1.25

28111977738
Washer

Part#: 11197773 Qty: 8

29158962118
Nut

Part#: 15896211 Qty: 8

30135435211
Stud for fixing suction manifold (front part)

Part#: 13543521 Qty: 1

311027252
Dowel
$2.25

Part#: 102725 Qty: 2$2.25

32115004212
Stud for fixing calotte support

Part#: 11500421 Qty: 2

33111977732
Washer

Part#: 11197773 Qty: 2

34158962112
Nut

Part#: 15896211 Qty: 2

35135433213
Stud

Part#: 13543321 Qty: 3

36126013713
Washer

Part#: 12601371 Qty: 3

37161044113
Nut
$0.50

Part#: 16104411 Qty: 3$0.50

1115641
Head cover, complete with complete cylinder

Part#: 111564 Qty: 1

381172201
Right head cover with complete cover

Part#: 117220 Qty: 1

391038081
End cover with blow by inlet

Part#: 103808 Qty: 1

401172631
Gasket

Part#: 117263 Qty: 1

411190671
Gasket

Part#: 119067 Qty: 1

42135254703
Heli-coil
$2.50

Part#: 13525470 Qty: 3$2.50

431172571
Front cover

Part#: 117257 Qty: 1

441053892
Sealing ring

Part#: 105389 Qty: 2

451172752
Sealing ring
$8.65

Part#: 117275 Qty: 2$8.65

461170391
Front cap inlet side With complete cylinder head

Part#: 117039 Qty: 1

471170401
Front cap exhaust side With complete cylinder head

Part#: 117040 Qty: 1

481170436
Intermediate cap With complete cylinder head

Part#: 117043 Qty: 6

491170441
Rear cap inlet side With complete cylinder head

Part#: 117044 Qty: 1

501170451
Rear cap exhaust side With complete cylinder head

Part#: 117045 Qty: 1

1172351
Right exhaust camshaft, complete

Part#: 117235 Qty: 1

511171251
Right exhaust camshaft With assembly no. 117235

Part#: 117125 Qty: 1

1179331
Right intake camshaft complete

Part#: 117933 Qty: 1

521179331
Right intake camshaft - With assembly no. 117933

Part#: 117933 Qty: 1

53102697501
Plug
$2.25

Part#: 10269750 Qty: 1$2.25

54109022212
Screw
$3.25

Part#: 10902221 Qty: 2$3.25
