Table 40

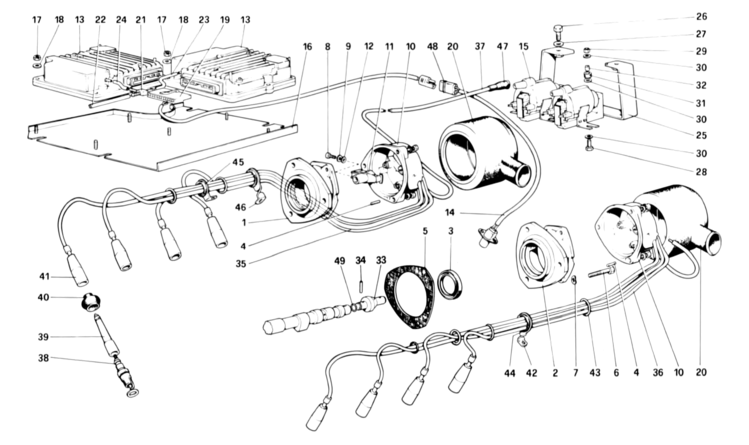

Table 40 - Engine ignition

Ref.Part#Qty.DescriptionPrice
11155781
Cap support, right

Part#: 115578 Qty: 1

21155791
Cap support, left

Part#: 115579 Qty: 1

31155742
Sealing ring
$19.50

Part#: 115574 Qty: 2$19.50

4103311112
Dowel
$0.75

Part#: 10331111 Qty: 2$0.75

51038152
Gasket

Part#: 103815 Qty: 2

61155774
Screw for cylinder head
$2.50

Part#: 115577 Qty: 4$2.50

1184562
Screw for head cover

Part#: 118456 Qty: 2

7126013716
Washer

Part#: 12601371 Qty: 6

81156702
Screw for rotor arm (only for rotor arm n 115520)

Part#: 115670 Qty: 2

9126040712
Spring washer (only for rotor arm n 115520)

Part#: 12604071 Qty: 2

101155182
Distributor cap
$413.40

Part#: 115518 Qty: 2$413.40

111193962
Rotor aim On exhaustion use n. 118030
$240.39

Part#: 119396 Qty: 2$240.39

12144962012
Washer
$0.95

Part#: 14496201 Qty: 2$0.95

131157472
Electronic ignition module
$1464.27

Part#: 115747 Qty: 2$1464.27

141190523
Electromagnetic sensor
$185.00

Part#: 119052 Qty: 3$185.00

151150132
Coils
$325.76

Part#: 115013 Qty: 2$325.76

161155971
Plate

Part#: 115597 Qty: 1

17125754116
Nut

Part#: 12575411 Qty: 6

18126012716
Washer

Part#: 12601271 Qty: 6

191155982
11 way block
$22.13

Part#: 115598 Qty: 2$22.13

201106262
Distributor boot

Part#: 110626 Qty: 2

211074401
3 way union

Part#: 107440 Qty: 1

221156651
Tube from 3 way union to air delivery body

Part#: 115665 Qty: 1

231156661
Rubber hose

Part#: 115666 Qty: 1

241151491
Rubber hose

Part#: 115149 Qty: 1

251156461
Bracket for coil

Part#: 115646 Qty: 1

26160431212
Screw

Part#: 16043121 Qty: 2

27105717712
Washer

Part#: 10571771 Qty: 2

28109026213
Screw
$0.21

Part#: 10902621 Qty: 3$0.21

29125754113
Nut

Part#: 12575411 Qty: 3

30126437019
Washer

Part#: 12643701 Qty: 9

311035492
Bush, vibration damping
$1.80

Part#: 103549 Qty: 2$1.80

321035503
Spacer
$3.25

Part#: 103550 Qty: 3$3.25

33117342R2
Coupling (only for rotor arm n 115520)
$60.00

Part#: 117342R Qty: 2$60.00

33117342R2
Coupling (only for rotor arm n 118030)
$60.00

Part#: 117342R Qty: 2$60.00

341002792
Pin (only for rotor arm n 115520)
$35.08

Part#: 100279 Qty: 2$35.08

34139048702
Pin (only for rotor arm n 118030)

Part#: 13904870 Qty: 2

351144741
Cables, left spark plugs

Part#: 114474 Qty: 1

361144731
Cables, right spark plugs

Part#: 114473 Qty: 1

371211752
Cable, distributor-coil
$48.20

Part#: 121175 Qty: 2$48.20

381156428
Spark plug CHAMPION N 7 GY

Part#: 115642 Qty: 8

391156478
Extension
$28.10

Part#: 115647 Qty: 8$28.10

401083338
Boot for spark plug
$24.75

Part#: 108333 Qty: 8$24.75

41120568868
Spark plug terminal

Part#: 12056886 Qty: 8

421073611
Bracket
$30.50

Part#: 107361 Qty: 1$30.50

431037023
Sealing ring
$2.72

Part#: 103702 Qty: 3$2.72

441002863
Fair lead

Part#: 100286 Qty: 3

451002891
Bracket
$32.13

Part#: 100289 Qty: 1$32.13

461059031
Bracket

Part#: 105903 Qty: 1

47120569862
Boot
$2.26

Part#: 12056986 Qty: 2$2.26

481174291
Cover (red) for sensor P.M. 5 8

Part#: 117429 Qty: 1

491174301
Cover (white) for sensor P.M. 14

Part#: 117430 Qty: 1

501094782
Sealing ring
$6.03

Part#: 109478 Qty: 2$6.03
