Table 9

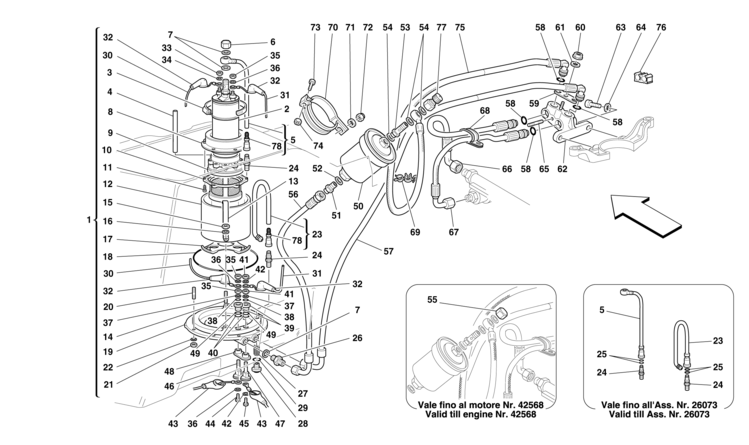

Table 9 - FUEL PUMP AND PIPES

Ref.Part#Qty.DescriptionPrice
11652671
COMPLETE FUEL PUMP

Part#: 165267 Qty: 1

21403171
FUEL PUMP
$490.50

Part#: 140317 Qty: 1$490.50

3130008901
SCREW COLLAR
$1.25

Part#: 13000890 Qty: 1$1.25

41392051
VENT PIPE
$100.75

Part#: 139205 Qty: 1$100.75

51339671
FUEL PIPE -Valid till Ass. Nr. 26073-

Part#: 133967 Qty: 1

51749041
FUEL PIPE -Valid from Ass. Nr. 26074-

Part#: 174904 Qty: 1

6101832171
PLUG FOR UNION

Part#: 10183217 Qty: 1

71139104
GASKET
$1.45

Part#: 113910 Qty: 4$1.45

81688801
FUEL FILTER COVER

Part#: 168880 Qty: 1

91268091
GASKET
$94.25

Part#: 126809 Qty: 1$94.25

101268081
FILTER INSIDE CHAMBER
$143.34

Part#: 126808 Qty: 1$143.34

11156711016
SCREW

Part#: 15671101 Qty: 6

121531891
PAN

Part#: 153189 Qty: 1

131375772
BRACKET

Part#: 137577 Qty: 2

14110009242
STUD

Part#: 11000924 Qty: 2

15136779112
NUT

Part#: 13677911 Qty: 2

16107300142
WASHER

Part#: 10730014 Qty: 2

171268071
ANTI-VIBRATIONS
$33.95

Part#: 126807 Qty: 1$33.95

181384531
O.R. GASKET
$43.02

Part#: 138453 Qty: 1$43.02

191394541
FUEL PUMP COVER

Part#: 139454 Qty: 1

20115002248
STUD

Part#: 11500224 Qty: 8

211027418
NUT
$0.75

Part#: 102741 Qty: 8$0.75

22126012748
WASHER
$1.00

Part#: 12601274 Qty: 8$1.00

231654891
FUEL FLOWING BACK PIPE -Valid till Ass. Nr. 26073-

Part#: 165489 Qty: 1

231749051
FUEL FLOWING BACK PIPE -Valid from Ass. Nr. 26074-

Part#: 174905 Qty: 1

241339502
UNION -Valid till Ass. Nr. 26073-

Part#: 133950 Qty: 2

241749072
UNION -Valid from Ass. Nr. 26074-

Part#: 174907 Qty: 2

251339564
O.R. GASKET -Valid till Ass. Nr. 26073-
$1.49

Part#: 133956 Qty: 4$1.49

261097972
UNION
$59.22

Part#: 109797 Qty: 2$59.22

271033881
THREADED INSERT
$21.61

Part#: 103388 Qty: 1$21.61

281347131
PLUG
$9.87

Part#: 134713 Qty: 1$9.87

291342331
O.R. GASKET
$1.96

Part#: 134233 Qty: 1$1.96

301395191
POSITIVE CABLE

Part#: 139519 Qty: 1

311466601
NEGATIVE CABLE

Part#: 146660 Qty: 1

321301464
BOOT
$12.87

Part#: 130146 Qty: 4$12.87

33107940141
NUT

Part#: 10794014 Qty: 1

34106152741
WASHER
$0.15

Part#: 10615274 Qty: 1$0.15

35158964703
NUT
$2.27

Part#: 15896470 Qty: 3$2.27

361499513
WASHER

Part#: 149951 Qty: 3

37105194242
WASHER
$0.39

Part#: 10519424 Qty: 2$0.39

381347012
O.R. GASKET

Part#: 134701 Qty: 2

391346722
BUSHING

Part#: 134672 Qty: 2

401347052
O.R. GASKET
$1.20

Part#: 134705 Qty: 2$1.20

41158962142
NUT
$0.75

Part#: 15896214 Qty: 2$0.75

42106154742
WASHER
$0.23

Part#: 10615474 Qty: 2$0.23

431376122
BOOT

Part#: 137612 Qty: 2

44108568211
SCREW

Part#: 10856821 Qty: 1

45116357211
SCREW

Part#: 11635721 Qty: 1

461376111
MASS PIN

Part#: 137611 Qty: 1

471376101
MASS PIN

Part#: 137610 Qty: 1

481376131
OUTER FLANGE

Part#: 137613 Qty: 1

49144568802
O.R. GASKET

Part#: 14456880 Qty: 2

501177921
FUEL FILTER
$81.87

Part#: 117792 Qty: 1$81.87

511098891
UNION

Part#: 109889 Qty: 1

52102800601
GASKET
$1.00

Part#: 10280060 Qty: 1$1.00

531582251
UNION

Part#: 158225 Qty: 1

541139103
GASKET
$1.45

Part#: 113910 Qty: 3$1.45

55101832171
PLUG FOR UNION -Valid till engine Nr. 42568-

Part#: 10183217 Qty: 1

561713421
FUEL PIPE FROM PUMP TO FILTER -Not as spare part for F355 replaced by 171342-

Part#: 171342 Qty: 1

561713421
FUEL PIPE FROM PUMP TO FILTER -Substitutes 165564-

Part#: 171342 Qty: 1

571713461
FUEL PIPE FROM REFLOW BLOCK TO PUMP -Not as spare part for F355 replaced by 171346-

Part#: 171346 Qty: 1

571713461
FUEL PIPE FROM REFLOW BLOCK TO PUMP -Substitutes 165566-

Part#: 171346 Qty: 1

581278166
GASKET
$4.49

Part#: 127816 Qty: 6$4.49

591293163
PLATE

Part#: 129316 Qty: 3

60140842113
NUT
$0.66

Part#: 14084211 Qty: 3$0.66

61126012743
WASHER
$1.00

Part#: 12601274 Qty: 3$1.00

621651921
FUEL DIVIDER -Not as spare part now- -Replaced by 178937-

Part#: 165192 Qty: 1

621789371
FUEL DIVIDER

Part#: 178937 Qty: 1

63144331742
SCREW

Part#: 14433174 Qty: 2

641533662
WASHER

Part#: 153366 Qty: 2

65135407243
STUD
$0.80

Part#: 13540724 Qty: 3$0.80

661713442
FUEL PIPE FROM DELIVERY BLOCK TO FLUTE -Not as spare part for F355 replaced by 171344-

Part#: 171344 Qty: 2

661713442
FUEL PIPE FROM DELIVERY BLOCK TO FLUTE -Substitutes 165533-

Part#: 171344 Qty: 2

671713452
FUEL PIPE FROM REGULATOR TO DIVIDER BLOCK -Not as spare part for F355 replaced by 171345-

Part#: 171345 Qty: 2

671713452
FUEL PIPE FROM REGULATOR TO DIVIDER BLOCK -Substitutes 165534-

Part#: 171345 Qty: 2

68104420901
BRACKET WITH SHEATH

Part#: 10442090 Qty: 1

691666771
CLIP

Part#: 166677 Qty: 1

701263521
BRACKET
$9.70

Part#: 126352 Qty: 1$9.70

71135503011
WASHER
$0.14

Part#: 13550301 Qty: 1$0.14

721040301
NUT
$0.48

Part#: 104030 Qty: 1$0.48

73109023241
SCREW
$0.50

Part#: 10902324 Qty: 1$0.50

741027411
NUT
$0.75

Part#: 102741 Qty: 1$0.75

751655651
FUEL PIPE FROM REGULATOR TO DIVIDER BLOCK

Part#: 165565 Qty: 1

761407272
CLIP
$1.25

Part#: 140727 Qty: 2$1.25

771717521
NUT -Valid from engine Nr. 42569-
$22.50

Part#: 171752 Qty: 1$22.50

781749062
FAST COUPLING -Valid from Ass. Nr. 26074-

Part#: 174906 Qty: 2
