Ferrari Philadelphia Parts

Table 101

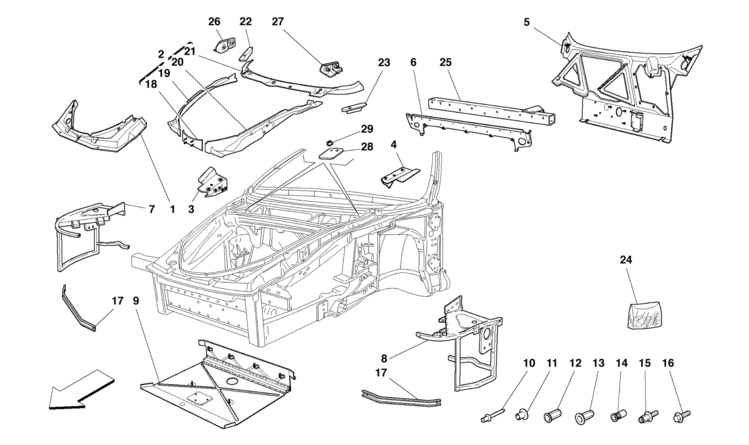

Table 101 - FRAME - COMPLETE FRONT PART STRUCTURES AND PLATES

Ref.Part#Qty.DescriptionPrice
1653936111
COMPLETE FRONT CROSS MEMBER

Part#: 65393611 Qty: 1

2653931111
COMPLETE FRONT MOULDING -Not for USA and CDN from car 129895- -See Table 102 Pos. 1-

Part#: 65393111 Qty: 1

2675046001
COMPLETE FRONT MOULDING -Valid only for USA and CDN from car 129895- -See Table 102 Pos. 1-

Part#: 67504600 Qty: 1

3653172111
R.H. PLATE FOR FRONT HOOD BONNET HINGE -Not as spare part- -Replaced by 65393800-

Part#: 65317211 Qty: 1

3653938001
R.H. PLATE FOR FRONT HOOD BONNET HINGE

Part#: 65393800 Qty: 1

4653173111
L.H. PLATE FOR FRONT HOOD BONNET HINGE -Not as spare part- -Replaced by 65393900-

Part#: 65317311 Qty: 1

4653939001
L.H. PLATE FOR FRONT HOOD BONNET HINGE

Part#: 65393900 Qty: 1

51757391
COMPLETE FRONT SHIELD -Not for GD-

Part#: 175739 Qty: 1

51777211
COMPLETE FRONT SHIELD -Valid for GD-

Part#: 177721 Qty: 1

6648559001
TRUNK COMPARTMENT UPPER REAR PANEL -Not as spare part- -Replaced by 65152300-

Part#: 64855900 Qty: 1

6651523001
TRUNK COMPARTMENT UPPER REAR PANEL

Part#: 65152300 Qty: 1

7632666001
COMPLETE R.H. FRONT SIDE FRAME -Not as spare part replaced by 66202300-

Part#: 63266600 Qty: 1

7662023111
COMPLETE R.H. FRONT SIDE FRAME

Part#: 66202311 Qty: 1

8632667001
COMPLETE L.H. FRONT SIDE FRAME -Not as spare part replaced by 66202400-

Part#: 63266700 Qty: 1

8662024111
COMPLETE L.H. FRONT SIDE FRAME

Part#: 66202411 Qty: 1

9651525001
COMPLETE COMPARTPMENT BOTTOM PLATE

Part#: 65152500 Qty: 1

10662922000
STANDARD HEAD POP RIVET
$2.45

Part#: 66292200$2.45

10662923000
HALF REPOTTED HEAD POP RIVET

Part#: 66292300

10146428910
POP RIVET L. 14 mm

Part#: 14642891

11651338000
RIVET L. 6,4 mm
$0.27

Part#: 65133800$0.27

12156242110
ESAGONAL RIVET M4

Part#: 15624211

12151804110
BLIND ESAGONAL RIVET

Part#: 15180411

12156245110
ESAGONAL RIVET M8

Part#: 15624511

12156244110
ESAGONAL RIVET M6

Part#: 15624411

12156243110
ESAGONAL RIVET M5

Part#: 15624311

13651512000
RIVET M6

Part#: 65151200

141661010
RIVET M4

Part#: 166101

14651350000
RIVET M8

Part#: 65135000

14659304000
RIVET M6

Part#: 65930400

14653198000
RIVET M8 BLIND

Part#: 65319800

141792990
RIVET M10 BLIND

Part#: 179299

15650654000
STUD ESAGONAL HEAD M6

Part#: 65065400

16138369710
SCREW
$0.35

Part#: 13836971$0.35

17648744112
R.H. AND L.H. LOWER CARPET SHIELD

Part#: 64874411 Qty: 2

18662198001
TRUNK COMPARTMENT UPPER MOULDING INSERT

Part#: 66219800 Qty: 1

19657511001
R.H. FENDER SUPPORT WALL

Part#: 65751100 Qty: 1

20657512001
L.H. FENDER SUPPORT WALL

Part#: 65751200 Qty: 1

21661203111
UINDER WINDSCREED FRAME

Part#: 66120311 Qty: 1

22653174001
R.H. BRACKET

Part#: 65317400 Qty: 1

23653175001
L.H. BRACKET

Part#: 65317500 Qty: 1

24700009501
INSERTS KIT FOR REPAIR

Part#: 70000950 Qty: 1

25668467001
COMPLETE FRONT SUSPENSION UPPER CONNECTION CROSS MEMBER -Not for GD-

Part#: 66846700 Qty: 1

25668452001
COMPLETE FRONT SUSPENSION UPPER CONNECTION CROSS MEMBER -Valid for GD-

Part#: 66845200 Qty: 1

26657098001
R.H. BRACKET FOR FIXED HINGE

Part#: 65709800 Qty: 1

27657099001
L.H. BRACKET FOR FIXED HINGE

Part#: 65709900 Qty: 1

28655488002
SEAL

Part#: 65548800 Qty: 2

29658972004
NUT

Part#: 65897200 Qty: 4
