Ferrari Philadelphia Parts

Table 108

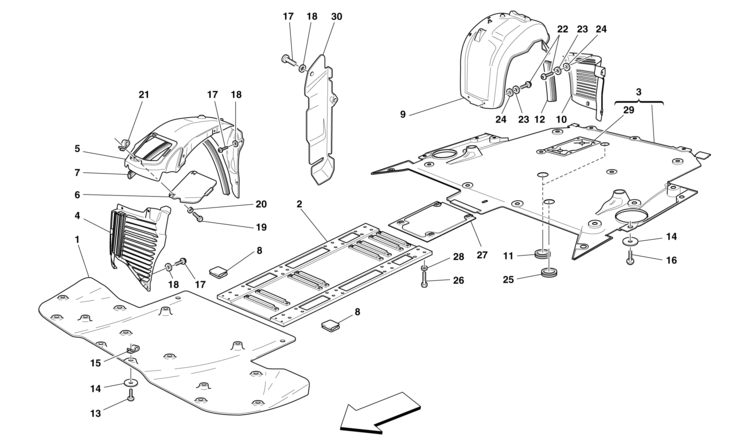

Table 108 - FLAT UNDERTRAY AND WHEELHOUSES

Ref.Part#Qty.DescriptionPrice
1804995001
FRONT UNDERBODY GUARD

Part#: 80499500 Qty: 1

21986421
CENTRE CONSOLE REINFORCEMENT

Part#: 198642 Qty: 1

3808969001
REAR UNDERBODY GUARD

Part#: 80896900 Qty: 1

4802558001
RH. WHEEL FRONT GRAVEL GUARD

Part#: 80255800 Qty: 1

4802559001
LH. WHEEL FRONT GRAVEL GUARD
$121.41

Part#: 80255900 Qty: 1$121.41

5679574001
RH. FRONT WHEELHOUSE EXTERNAL FAIRING

Part#: 67957400 Qty: 1

5679649001
LH. FRONT WHEELHOUSE EXTERNAL FAIRING

Part#: 67964900 Qty: 1

6655223001
RH. WHEELHOUSE COVER PLATE

Part#: 65522300 Qty: 1

6655224001
LH. WHEELHOUSE COVER PLATE

Part#: 65522400 Qty: 1

7680364002
GASKET
$14.70

Part#: 68036400 Qty: 2$14.70

8811311002
BRACKET -Applicable from Ass. No. 72116 up to Ass. No. 77234-

Part#: 81131100 Qty: 2

9679573001
RH. REAR WHEELHOUSE -Front part-
$635.09

Part#: 67957300 Qty: 1$635.09

9679572001
LH. REAR WHEELHOUSE -Front part-

Part#: 67957200 Qty: 1

10802560001
RH. REAR WHEEL GRAVEL GUARD
$158.61

Part#: 80256000 Qty: 1$158.61

10802561001
LH. REAR WHEEL GRAVEL GUARD
$169.89

Part#: 80256100 Qty: 1$169.89

11639658002
CAP
$9.36

Part#: 63965800 Qty: 2$9.36

12680349001
RH. GASKET

Part#: 68034900 Qty: 1

12807800001
LH.GASKET

Part#: 80780000 Qty: 1

131090242416
SCREW
$1.00

Part#: 10902424 Qty: 16$1.00

146612140034
WASHER
$16.06

Part#: 66121400 Qty: 34$16.06

15141890716
BRACKET
$1.49

Part#: 14189071 Qty: 6$1.49

161090242423
SCREW
$1.00

Part#: 10902424 Qty: 23$1.00

171327647712
SCREW
$1.50

Part#: 13276477 Qty: 12$1.50

181119777712
WASHER

Part#: 11197777 Qty: 12

19109778874
SCREW
$1.00

Part#: 10977887 Qty: 4$1.00

20126381774
WASHER

Part#: 12638177 Qty: 4

21669277004
BRACKET

Part#: 66927700 Qty: 4

221327647718
SCREW
$1.50

Part#: 13276477 Qty: 18$1.50

231119777718
WASHER

Part#: 11197777 Qty: 18

241264377818
WASHER -6.45 X 18 X 1.5-
$0.30

Part#: 12643778 Qty: 18$0.30

25131415871
PROTECTIVE CAP

Part#: 13141587 Qty: 1

2621024632
SCREW -M8 X 25-
$1.20

Part#: 210246 Qty: 32$1.20

2620537016
SCREW -M6 X 25-
$1.00

Part#: 205370 Qty: 16$1.00

27680233001
CENTRAL UNDERBODY GUARD

Part#: 68023300 Qty: 1

281264672732
WASHER -8.45 X 20 X 2-

Part#: 12646727 Qty: 32

281263972716
WASHER -6.45 X 11 X 1-

Part#: 12639727 Qty: 16

29683726001
OIL FILTER ACCESS HATCH -No longer supplied- -Replaced by 81061600-

Part#: 68372600 Qty: 1

29810616001
OIL FILTER ACCESS HATCH

Part#: 81061600 Qty: 1

30809613001
RH. WHEELHOUSE SHIELD -Not for GD-

Part#: 80961300 Qty: 1

30812843001
LH. WHEELHOUSE SHIELD -Applicable for GD-

Part#: 81284300 Qty: 1
