Table 20

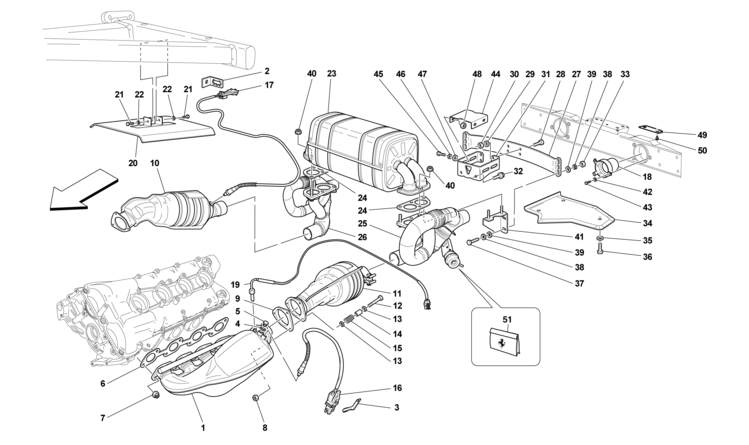

Table 20 - RACING EXHAUST SYSTEM

Ref.Part#Qty.DescriptionPrice
12387061
LH. EXHAUST MANIFOLD

Part#: 238706 Qty: 1

12387051
RH. EXHAUST MANIFOLD

Part#: 238705 Qty: 1

21783662
CONNECTOR FASTENER BRACKET

Part#: 178366 Qty: 2

31758562
CONNECTOR FASTENER BRACKET

Part#: 175856 Qty: 2

4102984602
GASKET
$1.00

Part#: 10298460 Qty: 2$1.00

51108602
THREADED PLUG
$16.50

Part#: 110860 Qty: 2$16.50

62114042
GASKET
$35.06

Part#: 211404 Qty: 2$35.06

721097116
NUT
$2.50

Part#: 210971 Qty: 16$2.50

82121916
NUT
$5.98

Part#: 212191 Qty: 6$5.98

91549852
GASKET
$24.39

Part#: 154985 Qty: 2$24.39

102378161
RH. CATALYTIC CONVERTER

Part#: 237816 Qty: 1

112378171
LH. CATALYTIC CONVERTER

Part#: 237817 Qty: 1

12160445246
SCREW
$2.00

Part#: 16044524 Qty: 6$2.00

131264677812
WASHER
$0.98

Part#: 12646778 Qty: 12$0.98

141147496
SHIM
$3.63

Part#: 114749 Qty: 6$3.63

151117436
SPRING
$41.43

Part#: 111743 Qty: 6$41.43

161828372
FRONT LAMBDA SENSOR
$369.73

Part#: 182837 Qty: 2$369.73

171809152
REAR LAMBDA SENSOR
$213.53

Part#: 180915 Qty: 2$213.53

182365292
TAILPIPE

Part#: 236529 Qty: 2

192009342
THERMOCOUPLE
$220.66

Part#: 200934 Qty: 2$220.66

20806974001
RH. CATALYTIC CONVERTER SHIELD

Part#: 80697400 Qty: 1

20806975001
LH. CATALYTIC CONVERTER SHIELD

Part#: 80697500 Qty: 1

21162970244
SCREW
$0.50

Part#: 16297024 Qty: 4$0.50

22126204744
WASHER
$0.15

Part#: 12620474 Qty: 4$0.15

232382691
COMPLETE EXHAUST SILENCER

Part#: 238269 Qty: 1

241776122
GASKET
$118.20

Part#: 177612 Qty: 2$118.20

252378191
LH. COMPLETE OUTPUT PIPE -Applicable until depletion-

Part#: 237819 Qty: 1

252507251
LH. COMPLETE OUTPUT PIPE -Applicable after depletion of 237819-

Part#: 250725 Qty: 1

262378181
RH. COMPLETE OUTPUT PIPE -Applicable until depletion-

Part#: 237818 Qty: 1

262507241
RH. COMPLETE OUTPUT PIPE -Applicable after depletion of 237818-

Part#: 250724 Qty: 1

272400681
EXHAUST SIDE SILENCER MOUNTING

Part#: 240068 Qty: 1

28160433244
SCREW -M8 X 18-
$1.05

Part#: 16043324 Qty: 4$1.05

291274964
WASHER
$0.50

Part#: 127496 Qty: 4$0.50

30161008244
NUT

Part#: 16100824 Qty: 4

312126911
GEARBOX SIDE SILENCER MOUNTING
$347.48

Part#: 212691 Qty: 1$347.48

32160434344
SCREW
$0.50

Part#: 16043434 Qty: 4$0.50

33161008244
NUT

Part#: 16100824 Qty: 4

342388111
LH. REAR SHIELD -No longer supplied-

Part#: 238811 Qty: 1

342387601
RH. REAR SHIELD

Part#: 238760 Qty: 1

35126437242
WASHER
$0.29

Part#: 12643724 Qty: 2$0.29

35126252244
WASHER
$0.25

Part#: 12625224 Qty: 4$0.25

36109023242
SCREW -M6 X 18-
$0.50

Part#: 10902324 Qty: 2$0.50

36160433244
SCREW -M8 X 18-
$1.05

Part#: 16043324 Qty: 4$1.05

37160435344
SCREW
$0.20

Part#: 16043534 Qty: 4$0.20

38126467788
WASHER
$0.98

Part#: 12646778 Qty: 8$0.98

391274968
WASHER
$0.50

Part#: 127496 Qty: 8$0.50

401798088
NUT
$1.25

Part#: 179808 Qty: 8$1.25

412108931
LH. BRACKET
$242.00

Part#: 210893 Qty: 1$242.00

412108921
RH. BRACKET
$255.54

Part#: 210892 Qty: 1$255.54

42126241246
WASHER

Part#: 12624124 Qty: 6

43109778146
SCREW

Part#: 10977814 Qty: 6

442219091
REINFORCEMENT

Part#: 221909 Qty: 1

45160433244
SCREW -M8 X 18-
$1.05

Part#: 16043324 Qty: 4$1.05

46126467244
WASHER
$0.25

Part#: 12646724 Qty: 4$0.25

47126013794
WASHER
$0.49

Part#: 12601379 Qty: 4$0.49

48161008244
NUT

Part#: 16100824 Qty: 4

49804254001
RH. HEAT SHIELD

Part#: 80425400 Qty: 1

49805030001
LH HEAT SHIELD

Part#: 80503000 Qty: 1

50160828704
SCREW

Part#: 16082870 Qty: 4

51700015881
BYPASS VALVE ACTUATOR KIT

Part#: 70001588 Qty: 1
