Ferrari Philadelphia Parts

Table 5

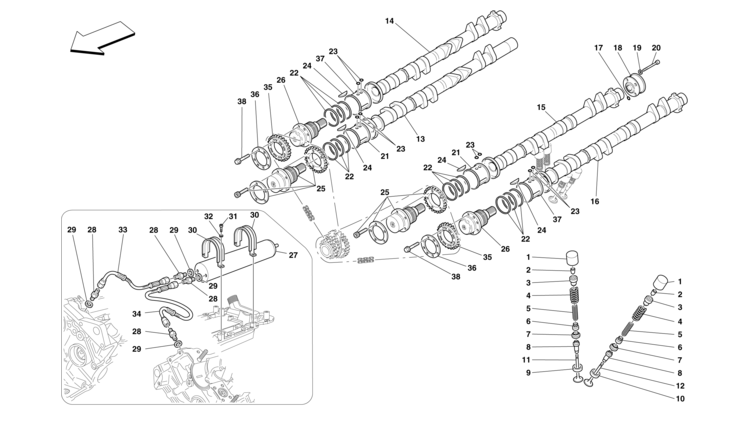

Table 5 - TIMING SYSTEM - TAPPETS

Ref.Part#Qty.DescriptionPrice
119470032
TAPPET
$133.66

Part#: 194700 Qty: 32$133.66

217976364
VALVE SPRING HALF-CONE
$0.90

Part#: 179763 Qty: 64$0.90

319471332
UPPER STOP CAP

Part#: 194713 Qty: 32

419790032
EXTERNAL VALVE RETURN SPRING
$11.38

Part#: 197900 Qty: 32$11.38

519790132
INTERNAL VALVE RETURN SPRING
$7.80

Part#: 197901 Qty: 32$7.80

614815332
OIL SEAL -No longer supplied- -Replaced by 221473-
$4.65

Part#: 148153 Qty: 32$4.65

622147332
OIL SEAL
$2.60

Part#: 221473 Qty: 32$2.60

719471832
LOWER STOP CAP

Part#: 194718 Qty: 32

8617232832
INTAKE AND EXHAUST VALVE GUIDES -No longer supplied- -Replaced by 6213498-

Part#: 6172328 Qty: 32

8621349832
INTAKE AND EXHAUST VALVE GUIDES
$4.42

Part#: 6213498 Qty: 32$4.42

9617538116
INTAKE VALVE SEAT -No longer supplied- -Replaced by 6213496-

Part#: 6175381 Qty: 16

9621349616
INTAKE VALVE SEAT -Applicable up to Ass. No. 71273- -Applicable until depletion-

Part#: 6213496 Qty: 16

9622284716
INTAKE VALVE SEAT -Applicable from Ass. No. 71274- -Applicable after depletion of 6213496-

Part#: 6222847 Qty: 16

10617995916
EXHAUST VALVE SEAT -No longer supplied- -Replaced by 6213497-

Part#: 6179959 Qty: 16

10621349716
EXHAUST VALVE SEAT -Applicable up to Ass. No. 71273- -Applicable until depletion-

Part#: 6213497 Qty: 16

10622284816
EXHAUST VALVE SEAT -Applicable from Ass. No. 71274- -Applicable after depletion of 6213497-

Part#: 6222848 Qty: 16

1117539516
INTAKE VALVE -No longer supplied- -Replaced by 198581-

Part#: 175395 Qty: 16

1119858116
INTAKE VALVE
$24.44

Part#: 198581 Qty: 16$24.44

1218935116
EXHAUST VALVE -No longer supplied- -Replaced by 198582-

Part#: 189351 Qty: 16

1219858216
EXHAUST VALVE
$58.73

Part#: 198582 Qty: 16$58.73

132114141
RH INTAKE CAMSHAFT -Applicable up to engine No. 97780-

Part#: 211414 Qty: 1

132001441
RH INTAKE CAMSHAFT -Applicable from engine No. 97781-

Part#: 200144 Qty: 1

142114161
RH EXHAUST CAMSHAFT -Applicable up to engine No. 97780-

Part#: 211416 Qty: 1

142001461
RH EXHAUST CAMSHAFT -Applicable from engine No. 97781-

Part#: 200146 Qty: 1

152114151
LH INTAKE CAMSHAFT -Applicable up to engine No. 97780-

Part#: 211415 Qty: 1

152001451
LH INTAKE CAMSHAFT -Applicable from engine No. 97781-
$895.74

Part#: 200145 Qty: 1$895.74

162114181
LH EXHAUST CAMSHAFT -Applicable up to engine No. 97780-

Part#: 211418 Qty: 1

162001471
LH EXHAUST CAMSHAFT -Applicable from engine No. 97781-

Part#: 200147 Qty: 1

171347012
O-RING
$0.50

Part#: 134701 Qty: 2$0.50

181975581
VARIABLE VALVE TIMING ADJUSTER OIL PUMP

Part#: 197558 Qty: 1

191847314
WASHER

Part#: 184731 Qty: 4

20143036234
SCREW -No longer supplied- -Replaced by 252305-

Part#: 14303623 Qty: 4

202523054
SCREW

Part#: 252305 Qty: 4

211994402
MOUNTING BUSHING FOR INTAKE VARIABLE VALVE TIMING ADJUSTER -Applicable up to engine No. 91153-

Part#: 199440 Qty: 2

212068042
MOUNTING BUSHING FOR INTAKE VARIABLE VALVE TIMING ADJUSTER -Applicable from engine No. 91154 up to engine No. 144864- -Applicable until depletion-
$510.04

Part#: 206804 Qty: 2$510.04

212187352
MOUNTING BUSHING FOR INTAKE VARIABLE VALVE TIMING ADJUSTER -Applicable from engine No. 144865- -Applicable after depletion of 206804-

Part#: 218735 Qty: 2

2217992612
RING -Applicable up to engine No. 144864- -Applicable until depletion-

Part#: 179926 Qty: 12

2222849712
RING -Applicable from engine No. 144865- -Applicable after depletion of 179926-
$128.65

Part#: 228497 Qty: 12$128.65

231347014
O-RING
$0.50

Part#: 134701 Qty: 4$0.50

24106181204
TAB

Part#: 10618120 Qty: 4

251937792
VARIABLE VALVE TIMING ADJUSTER FOR INTAKE CAMSHAFT
$3612.26

Part#: 193779 Qty: 2$3612.26

261994382
VARIABLE VALVE TIMING ADJUSTER FOR EXHAUST CAMSHAFT
$2917.61

Part#: 199438 Qty: 2$2917.61

271970621
OIL ACCUMULATOR FOR VARIABLE VALVE TIMING ADJUSTER
$1151.71

Part#: 197062 Qty: 1$1151.71

281950564
THREADED CONNECTOR

Part#: 195056 Qty: 4

29102610604
GASKET
$0.50

Part#: 10261060 Qty: 4$0.50

301971512
BRACKET

Part#: 197151 Qty: 2

31143051244
SCREW

Part#: 14305124 Qty: 4

32111977744
WASHER
$0.49

Part#: 11197774 Qty: 4$0.49

331984631
ACCUMULATOR TO RH HEAD CYLINDERS TUBE

Part#: 198463 Qty: 1

341984641
PIPE FROM ACCUMULATOR TO LH CYLINDER

Part#: 198464 Qty: 1

351941922
GEAR WHEEL

Part#: 194192 Qty: 2

361956492
WASHER

Part#: 195649 Qty: 2

371994392
MOUNTING BUSHING FOR EXHAUST VARIABLE VALVE TIMING ADJUSTER -Applicable up to engine No. 91153-

Part#: 199439 Qty: 2

372068052
MOUNTING BUSHING FOR EXHAUST VARIABLE VALVE TIMING ADJUSTER -Applicable from engine No. 91154 up to engine No. 144864- -Applicable until depletion-

Part#: 206805 Qty: 2

372187342
MOUNTING BUSHING FOR EXHAUST VARIABLE VALVE TIMING ADJUSTER -Applicable from engine No. 144865- -Applicable after depletion of 206805-
$270.31

Part#: 218734 Qty: 2$270.31

3819497716
SCREW
$10.75

Part#: 194977 Qty: 16$10.75
