Ferrari Philadelphia Parts

Table 7

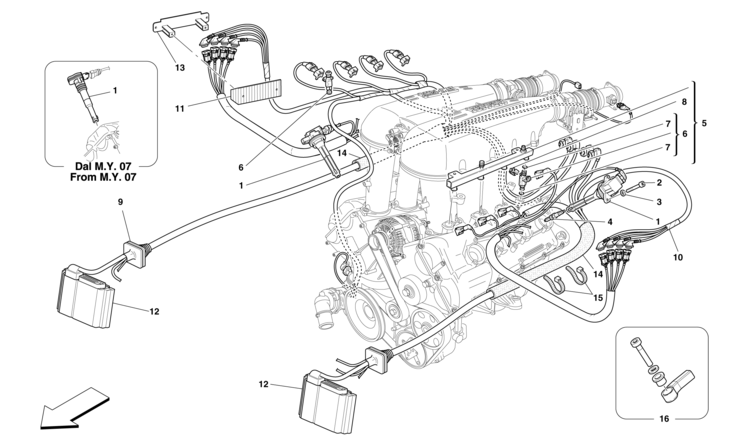

Table 7 - INJECTION - IGNITION SYSTEM

Ref.Part#Qty.DescriptionPrice
11885044
SINGLE IGNITION COIL -For cylinders 1,2,7,8- -Applicable for USA, CDN- -Applicable up to Ass. No. 67970-
$829.25

Part#: 188504 Qty: 4$829.25

11885044
SINGLE IGNITION COIL -For cylinders 1,2,7,8- -Not for USA, CDN- -Applicable up to Ass. No. 69638-
$829.25

Part#: 188504 Qty: 4$829.25

11869144
SINGLE IGNITION COIL -For cylinders 3,4,5,6- -Applicable for USA, CDN- -Applicable up to Ass. No. 67970-
$311.81

Part#: 186914 Qty: 4$311.81

11869144
SINGLE IGNITION COIL -For cylinders 3,4,5,6- -Not for USA, CDN- -Applicable up to Ass. No. 69638-
$311.81

Part#: 186914 Qty: 4$311.81

12278768
SINGLE IGNITION COIL -Applicable from MY 07- -Applicable for USA, CDN- -Applicable from Ass. No. 68460- -No longer supplied- -Replaced by 248404-

Part#: 227876 Qty: 8

12278768
SINGLE IGNITION COIL -Applicable from MY 07- -Not for USA, CDN- -Applicable from Ass. No. 69639- -No longer supplied- -Replaced by 248404-

Part#: 227876 Qty: 8

12484048
SINGLE IGNITION COIL -Applicable from MY 07- -Applicable for USA, CDN- -Applicable from Ass. No. 67971-

Part#: 248404 Qty: 8

12484048
SINGLE IGNITION COIL -Applicable from MY 07- -Not for USA, CDN- -Applicable from Ass. No. 69639-

Part#: 248404 Qty: 8

220159916
SCREW -Not for USA, CDN-

Part#: 201599 Qty: 16

220159916
SCREW -Applicable for USA, CDN- -Applicable up to Ass. No. 67970-

Part#: 201599 Qty: 16

31119777416
WASHER -Not for USA, CDN-
$0.49

Part#: 11197774 Qty: 16$0.49

31119777416
WASHER -Applicable for USA, CDN- -Applicable up to Ass. No. 67970-
$0.49

Part#: 11197774 Qty: 16$0.49

41926378
SPARK PLUG
$28.57

Part#: 192637 Qty: 8$28.57

51913921
COMPLETE RH FUEL PIPE WITH ELECTROINJECTORS -Applicable up to MY 06- -Applicable up to engine No. 99607-

Part#: 191392 Qty: 1

52165421
COMPLETE RH FUEL PIPE WITH ELECTROINJECTORS -Applicable from MY 06- -Applicable from engine No. 99608-

Part#: 216542 Qty: 1

51913901
COMPLETE LH FUEL PIPE WITH ELECTROINJECTORS -Applicable up to MY 06- -Applicable up to engine No. 99607-

Part#: 191390 Qty: 1

52165431
COMPLETE LH FUEL PIPE WITH ELECTROINJECTORS -Applicable from MY 06- -Applicable from engine No. 99608-

Part#: 216543 Qty: 1

61913938
ELECTRO-INJECTOR -Applicable up to MY 06- -Applicable up to engine No. 99607-

Part#: 191393 Qty: 8

62136358
ELECTRO-INJECTOR -Applicable from MY 06- -Applicable from engine No. 99608-

Part#: 213635 Qty: 8

71339024
GASKET
$5.95

Part#: 133902 Qty: 4$5.95

81447308
INJECTORS RETENTION CLIP
$4.00

Part#: 144730 Qty: 8$4.00

92029741
RH CYLINDER BANK INJECTION CONNECTOR CABLES -Not for USA, CDN- -No longer supplied- -Replaced by 215268-

Part#: 202974 Qty: 1

92152681
RH CYLINDER BANK INJECTION CONNECTOR CABLES -Not for USA, CDN- -Applicable up to Ass. No. 69638-

Part#: 215268 Qty: 1

92213381
RH CYLINDER BANK INJECTION CONNECTOR CABLES -Not for USA, CDN- -Applicable from Ass. No. 69639-

Part#: 221338 Qty: 1

92094381
RH CYLINDER BANK INJECTION CONNECTOR CABLES -Applicable for USA, CDN- -Applicable up to Ass. No. 67970-

Part#: 209438 Qty: 1

92199041
RH CYLINDER BANK INJECTION CONNECTOR CABLES -Applicable from MY 07- -Applicable for USA, CDN- -Applicable from Ass. No. 67971-

Part#: 219904 Qty: 1

102044271
LH CYLINDER BANK INJECTION CONNECTOR CABLES -Not for USA, CDN- -No longer supplied- -Replaced by 215269-

Part#: 204427 Qty: 1

102152691
LH CYLINDER BANK INJECTION CONNECTOR CABLES -Not for USA, CDN- -Applicable up to Ass. No. 69638-

Part#: 215269 Qty: 1

102213391
LH CYLINDER BANK INJECTION CONNECTOR CABLES -Applicable for USA, CDN- -Applicable from Ass. No. 69639-

Part#: 221339 Qty: 1

102094371
LH CYLINDER BANK INJECTION CONNECTOR CABLES -Applicable for USA, CDN- -Applicable up to Ass. No. 67970-

Part#: 209437 Qty: 1

102199051
LH CYLINDER BANK INJECTION CONNECTOR CABLES -Applicable from MY 07- -Applicable for USA, CDN- -Applicable from Ass. No. 67971-

Part#: 219905 Qty: 1

112017321
RH REAR SHIELD -Applicable until depletion-

Part#: 201732 Qty: 1

112243831
RH REAR SHIELD -Applicable after depletion of 201732-
$61.72

Part#: 224383 Qty: 1$61.72

112017331
LH REAR SHIELD -Applicable until depletion-
$142.91

Part#: 201733 Qty: 1$142.91

112243841
LH REAR SHIELD -Applicable after depletion of 201733-
$61.72

Part#: 224384 Qty: 1$61.72

121992172
IGNITION ECU -Not for USA, CDN- -Applicable up to Ass. No. 57595- -Not for F1 gearbox-

Part#: 199217 Qty: 2

122179872
IGNITION ECU -Not for USA, CDN- -Applicable from Ass. No. 57596 up to Ass. No. 62225- -Not for F1 gearbox-

Part#: 217987 Qty: 2

122163902
IGNITION ECU -Applicable up to MY 06- -Applicable for USA, CDN- -Not for F1 gearbox-

Part#: 216390 Qty: 2

121992152
IGNITION ECU -Not for USA, CDN- -Applicable up to Ass. No. 57595- -Applicable for F1 gearbox-

Part#: 199215 Qty: 2

122179862
IGNITION ECU -Not for USA, CDN- -Applicable from Ass. No. 57596 up to Ass. No. 62225- -Applicable for F1 gearbox-

Part#: 217986 Qty: 2

122222642
IGNITION ECU -Not for USA, CDN- -Applicable from Ass. No. 62226 up to Ass. No. 69627-

Part#: 222264 Qty: 2

122163912
IGNITION ECU -Applicable up to MY 06- -Applicable for USA, CDN- -Applicable for F1 gearbox-

Part#: 216391 Qty: 2

122222512
IGNITION ECU -Applicable from MY 06- -Applicable for USA, CDN- -Applicable up to Ass. No. 67970-

Part#: 222251 Qty: 2

122310422
IGNITION ECU -Applicable from MY 07- -Applicable for USA, CDN- -Applicable up to Ass. No. 71293-

Part#: 231042 Qty: 2

122368372
IGNITION ECU -Applicable from MY 07- -No temperature sensors- -Applicable up to MY 08- -Applicable for USA, CDN- -Applicable from Ass. No. 71294 up to Ass. No. 74556-

Part#: 236837 Qty: 2

122417652
IGNITION ECU -Applicable from MY 08- -Applicable for USA, CDN- -Applicable from Ass. No. 74557-

Part#: 241765 Qty: 2

122273922
IGNITION ECU -Taiwan- -Applicable from MY 06- -Applicable up to Ass. No. 69627-

Part#: 227392 Qty: 2

122352222
IGNITION ECU -Taiwan- -Applicable from Ass. No. 69628 up to Ass. No. 73459-

Part#: 235222 Qty: 2

122407912
IGNITION ECU -Taiwan- -Applicable from Ass. No. 73460-

Part#: 240791 Qty: 2

122247512
IGNITION ECU -Germany- -Applicable from MY 06- -Applicable for sound kit-

Part#: 224751 Qty: 2

122303862
IGNITION ECU -Not applicable for sound kit- -Not for USA, CDN- -Applicable up to Ass. No. 69627-

Part#: 230386 Qty: 2

122352202
IGNITION ECU -Not for USA, CDN- -Applicable from Ass. No. 69628 up to Ass. No. 73459-

Part#: 235220 Qty: 2

121042842
IGNITION ECU -Applicable up to MY 08- -Not for USA, CDN- -Applicable from Ass. No. 73460 up to Ass. No. 74556-

Part#: 104284 Qty: 2

122417642
IGNITION ECU -Applicable from MY 08- -Not for USA, CDN, J- -Applicable from Ass. No. 74557-

Part#: 241764 Qty: 2

122467472
IGNITION ECU -Applicable from MY 08- -Applicable for J-

Part#: 246747 Qty: 2

122509222
IGNITION ECU -Applicable from MY 09- -Applicable for USA, CDN-

Part#: 250922 Qty: 2

131925351
RH BRACKET
$47.99

Part#: 192535 Qty: 1$47.99

132001631
LH BRACKET
$185.96

Part#: 200163 Qty: 1$185.96

142165452
PROTECTIVE PIPE

Part#: 216545 Qty: 2

152067394
CABLE TIE
$6.94

Part#: 206739 Qty: 4$6.94

162279418
COMPL. COIL SHIELD -Applicable for CINA, USA, CDN-
$16.50

Part#: 227941 Qty: 8$16.50
