Ferrari Philadelphia Parts

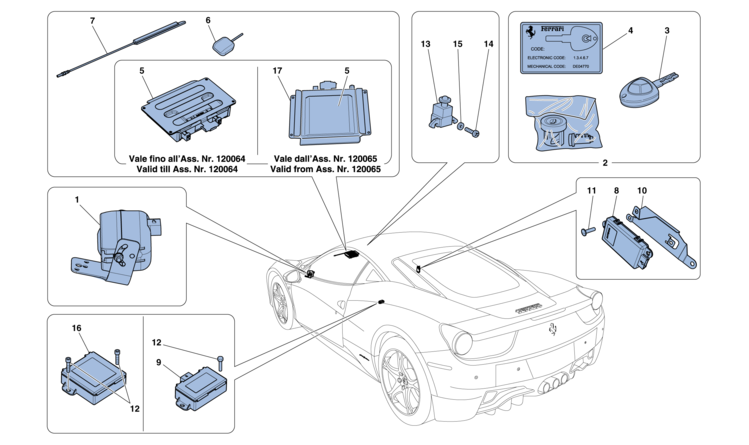

Table 134

Table 134 - ANTITHEFT SYSTEM

Ref.Part#Qty.DescriptionPrice
12015411
ANTI-THEFT SYSTEM SIREN -No longer supplied- -Replaced by 285149-

Part#: 201541 Qty: 1

12851491
ANTI-THEFT SYSTEM SIREN -No longer supplied- -Replaced by 294965-

Part#: 285149 Qty: 1

12949651
ANTI-THEFT SYSTEM SIREN
$174.89

Part#: 294965 Qty: 1$174.89

22635271
KEY AND BLOCK KIT -Contains 2 keys, 2 ignition switch blocks and 1 code card-

Part#: 263527 Qty: 1

32666491
UNCODED KEY

Part#: 266649 Qty: 1

41536031
FERRARI CODE CARD

Part#: 153603 Qty: 1

52555411
SATELLITE ANTI-THEFT SYSTEM ECU -Applicable for vehicles with ADR card- -Applicable until depletion-

Part#: 255541 Qty: 1

52772051
SATELLITE ANTI-THEFT SYSTEM ECU -Applicable for vehicles with ADR card- -Applicable up to Ass. No. 120064- -Applicable after depletion of 255541-

Part#: 277205 Qty: 1

52772051
SATELLITE ANTI-THEFT SYSTEM ECU -Applicable for vehicles without ADR card- -Applicable up to Ass. No. 120064-

Part#: 277205 Qty: 1

52937791
SATELLITE ANTI-THEFT SYSTEM ECU -Applicable from Ass. No. 120065-

Part#: 293779 Qty: 1

62261301
GPS ANTENNA -No longer supplied- -Replaced by 278513-

Part#: 226130 Qty: 1

62785131
GPS ANTENNA

Part#: 278513 Qty: 1

72261311
GSM ANTENNA -No longer supplied- -Replaced by 278514-

Part#: 226131 Qty: 1

72785141
GSM ANTENNA

Part#: 278514 Qty: 1

82612181
RH MASTER HYPERFREQUENCY VOLUMETRIC SENSORS -Applicable up to Ass. No. 92281-

Part#: 261218 Qty: 1

82677441
MASTER HYPERFREQUENCY VOLUMETRIC SENSOR -Applicable for version with centre tunnel console in carbon fibre- -Applicable from Ass. No. 92282-

Part#: 267744 Qty: 1

82677441
MASTER HYPERFREQUENCY VOLUMETRIC SENSOR -Not for version with centre tunnel console in carbon fibre- -Applicable from Ass. No. 92282 up to Ass. No. 117749-

Part#: 267744 Qty: 1

82612191
LH SLAVE HYPERFREQUENCY VOLUMETRIC SENSORS -Applicable up to Ass. No. 92281-

Part#: 261219 Qty: 1

82177271
SLAVE HYPERFREQUENCY VOLUMETRIC SENSOR -Applicable for version with centre tunnel console in carbon fibre- -Applicable from Ass. No. 92282-

Part#: 217727 Qty: 1

82177271
SLAVE HYPERFREQUENCY VOLUMETRIC SENSOR -Not for version with centre tunnel console in carbon fibre- -Applicable from Ass. No. 92282 up to Ass. No. 117749-

Part#: 217727 Qty: 1

92389351
ANTI-LIFT SENSOR -Applicable for version with centre tunnel console in carbon fibre-

Part#: 238935 Qty: 1

92389351
ANTI-LIFT SENSOR -Not for version with centre tunnel console in carbon fibre- -Applicable up to Ass. No. 117749-

Part#: 238935 Qty: 1

10834438001
RH HYPERFREQUENCY SENSOR BRACKET -Applicable from Ass. No. 91503-

Part#: 83443800 Qty: 1

10834439001
LH HYPERFREQUENCY SENSOR BRACKET -Applicable from Ass. No. 91503-

Part#: 83443900 Qty: 1

111698154
SCREW -M5 X 20- -Applicable up to Ass. No. 91502-
$2.50

Part#: 169815 Qty: 4$2.50

11143040244
SCREW -Applicable from Ass. No. 91503-

Part#: 14304024 Qty: 4

12104447112
SCREW -No longer supplied- -Replaced by 14304624-

Part#: 10444711 Qty: 2

12143046242
SCREW -Applicable for version with centre tunnel console in carbon fibre-
$0.21

Part#: 14304624 Qty: 2$0.21

12143046242
SCREW -Not for version with centre tunnel console in carbon fibre- -Applicable up to Ass. No. 117749-
$0.21

Part#: 14304624 Qty: 2$0.21

12143052242
SCREW -Not for version with centre tunnel console in carbon fibre- -Applicable from Ass. No. 117750-
$0.60

Part#: 14305224 Qty: 2$0.60

132397441
TWO-TONE INFOLED

Part#: 239744 Qty: 1

14156888012
SCREW

Part#: 15688801 Qty: 2

15126378012
WASHER

Part#: 12637801 Qty: 2

162934161
MASTER DIPOLE ANTI-LIFT SENSOR -Not for version with centre tunnel console in carbon fibre- -Applicable from Ass. No. 117750-

Part#: 293416 Qty: 1

172971791
BRACKET -Applicable from Ass. No. 120065-

Part#: 297179 Qty: 1
