Ferrari Philadelphia Parts

Table 16

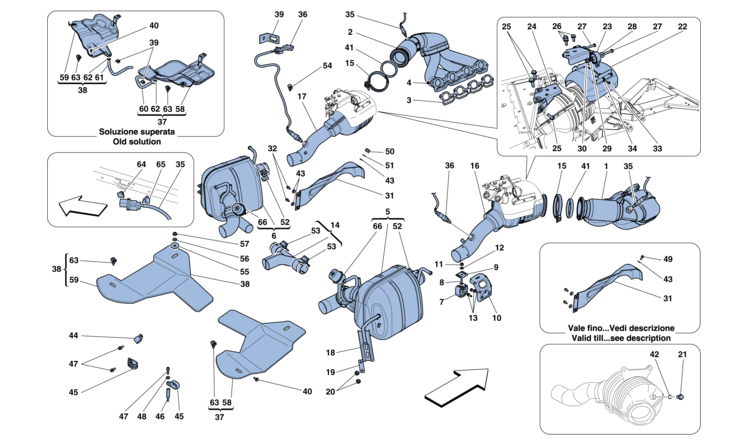

Table 16 - EXHAUST SYSTEM

Ref.Part#Qty.DescriptionPrice
12643901
COMPL. RH EXHAUST MANIFOLD -No longer supplied- -Replaced by 279322-

Part#: 264390 Qty: 1

12793221
COMPL. RH EXHAUST MANIFOLD

Part#: 279322 Qty: 1

22643911
COMPL. LH EXHAUST MANIFOLD -No longer supplied- -Replaced by 279323-

Part#: 264391 Qty: 1

22793231
COMPL. LH EXHAUST MANIFOLD

Part#: 279323 Qty: 1

32682562
GASKET
$35.56

Part#: 268256 Qty: 2$35.56

421097116
NUT
$2.50

Part#: 210971 Qty: 16$2.50

52749571
REAR RH SILENCER
$3954.50

Part#: 274957 Qty: 1$3954.50

62749591
REAR LH SILENCER
$3954.50

Part#: 274959 Qty: 1$3954.50

72397986
FLEXIBLE SILENCER MOUNTING BUSH
$97.63

Part#: 239798 Qty: 6$97.63

82502226
SQUARE HEADED SCREW -No longer supplied- -Replaced by 283425-
$2.75

Part#: 250222 Qty: 6$2.75

82834256
SQUARE HEADED SCREW
$2.37

Part#: 283425 Qty: 6$2.37

92405986
PLATE
$24.35

Part#: 240598 Qty: 6$24.35

102527644
SILENCER MOUNTING BRACKET
$277.08

Part#: 252764 Qty: 4$277.08

102527652
OUTER REAR SILENCER BRACKET
$292.92

Part#: 252765 Qty: 2$292.92

11140592146
NUT
$0.50

Part#: 14059214 Qty: 6$0.50

12126204746
WASHER
$0.15

Part#: 12620474 Qty: 6$0.15

12135784054
WASHER
$0.88

Part#: 13578405 Qty: 4$0.88

131158502418
SCREW -M5 X 14-
$0.31

Part#: 11585024 Qty: 18$0.31

142581081
CENTRAL OUTLET PIPE
$271.38

Part#: 258108 Qty: 1$271.38

152568842
RING CLAMP

Part#: 256884 Qty: 2

162616861
RH CATALYTIC CONVERTER

Part#: 261686 Qty: 1

172616871
LH CATALYTIC CONVERTER

Part#: 261687 Qty: 1

182538571
RH SILENCER BRACKET
$80.93

Part#: 253857 Qty: 1$80.93

182538581
LH SILENCER BRACKET
$80.93

Part#: 253858 Qty: 1$80.93

192405972
PLATE
$15.04

Part#: 240597 Qty: 2$15.04

20140593114
NUT
$1.49

Part#: 14059311 Qty: 4$1.49

211108602
THREADED PLUG
$16.50

Part#: 110860 Qty: 2$16.50

222635881
RH CATALYTIC CONVERTER SHIELD

Part#: 263588 Qty: 1

222635891
LH CATALYTIC CONVERTER SHIELD

Part#: 263589 Qty: 1

232605611
RH BRACKET COMPL. WITH BUSHES

Part#: 260561 Qty: 1

232605621
LH BRACKET COMPL. WITH BUSHES

Part#: 260562 Qty: 1

242605591
RH CATALYTIC CONVERTER BRACKET

Part#: 260559 Qty: 1

242605601
LH CATALYTIC CONVERTER BRACKET

Part#: 260560 Qty: 1

25116281268
SCREW

Part#: 11628126 Qty: 8

26116278266
SCREW

Part#: 11627826 Qty: 6

27160443214
SCREW
$3.00

Part#: 16044321 Qty: 4$3.00

28126013748
WASHER
$0.49

Part#: 12601374 Qty: 8$0.49

29126013744
WASHER
$0.49

Part#: 12601374 Qty: 4$0.49

30140593114
NUT
$1.49

Part#: 14059311 Qty: 4$1.49

312673321
SHIELD

Part#: 267332 Qty: 1

322316202
SCREW -M6 X 25-
$1.25

Part#: 231620 Qty: 2$1.25

33143040214
SCREW

Part#: 14304021 Qty: 4

34144466244
WASHER

Part#: 14446624 Qty: 4

352174472
FRONT OXYGEN SENSOR
$276.37

Part#: 217447 Qty: 2$276.37

361809152
REAR OXYGEN SENSOR
$213.53

Part#: 180915 Qty: 2$213.53

372717071
COMPL. RH SHIELD -Applicable up to Ass. No. 103617-

Part#: 271707 Qty: 1

372839201
COMPL. RH SHIELD -Applicable from Ass. No. 103618-

Part#: 283920 Qty: 1

382717081
COMPL. LH SHIELD -Applicable up to Ass. No. 103617-

Part#: 271708 Qty: 1

382839191
COMPL. LH SHIELD -Applicable from Ass. No. 103618-

Part#: 283919 Qty: 1

391783662
CONNECTOR FASTENER BRACKET -No longer supplied- -Replaced by 185408-

Part#: 178366 Qty: 2

391854082
CONNECTOR FASTENER BRACKET

Part#: 185408 Qty: 2

40116258242
SCREW -M6 X 18-
$1.49

Part#: 11625824 Qty: 2$1.49

412573602
GASKET
$40.87

Part#: 257360 Qty: 2$40.87

42102984602
GASKET
$1.00

Part#: 10298460 Qty: 2$1.00

43126477043
WASHER

Part#: 12647704 Qty: 3

442644091
BRACKET WITH SHEATH

Part#: 264409 Qty: 1

452639012
BRACKET WITH SHEATH

Part#: 263901 Qty: 2

461823631
STUD BOLT
$34.55

Part#: 182363 Qty: 1$34.55

472483343
SCREW

Part#: 248334 Qty: 3

48126204771
WASHER

Part#: 12620477 Qty: 1

492316201
SCREW -M6 X 25- -Applicable up to Ass. No. 104675-
$1.25

Part#: 231620 Qty: 1$1.25

50158962141
NUT -Applicable from Ass. No. 104676-
$0.75

Part#: 15896214 Qty: 1$0.75

51126012741
WASHER -Applicable from Ass. No. 104676-
$1.00

Part#: 12601274 Qty: 1$1.00

521853072
RING CLAMP
$34.92

Part#: 185307 Qty: 2$34.92

532920912
RING CLAMP

Part#: 292091 Qty: 2

54104412902
BRACKET WITH SHEATH
$1.96

Part#: 10441290 Qty: 2$1.96

55135784054
WASHER
$0.88

Part#: 13578405 Qty: 4$0.88

56126204744
WASHER
$0.15

Part#: 12620474 Qty: 4$0.15

57140592144
NUT
$0.50

Part#: 14059214 Qty: 4$0.50

582717041
RH SHIELD -Applicable up to Ass. No. 103617-

Part#: 271704 Qty: 1

582817621
RH SHIELD -Applicable from Ass. No. 103618-

Part#: 281762 Qty: 1

592717061
LH SHIELD -Applicable up to Ass. No. 103617-

Part#: 271706 Qty: 1

592817611
LH SHIELD -Applicable from Ass. No. 103618-

Part#: 281761 Qty: 1

602718981
RUBBER PIPE FOR RH SHIELD -Applicable up to Ass. No. 103617-

Part#: 271898 Qty: 1

612719001
RUBBER PIPE FOR LH SHIELD -Applicable up to Ass. No. 103617-

Part#: 271900 Qty: 1

62131259702
CLAMP -Applicable up to Ass. No. 103617-

Part#: 13125970 Qty: 2

631919042
CLIP

Part#: 191904 Qty: 2

642912832
CLIP

Part#: 291283 Qty: 2

651995892
CLIP

Part#: 199589 Qty: 2

66700031332
BYPASS VALVE ACTUATOR KIT -Also order collar, part number 241986-

Part#: 70003133 Qty: 2
