Table 102

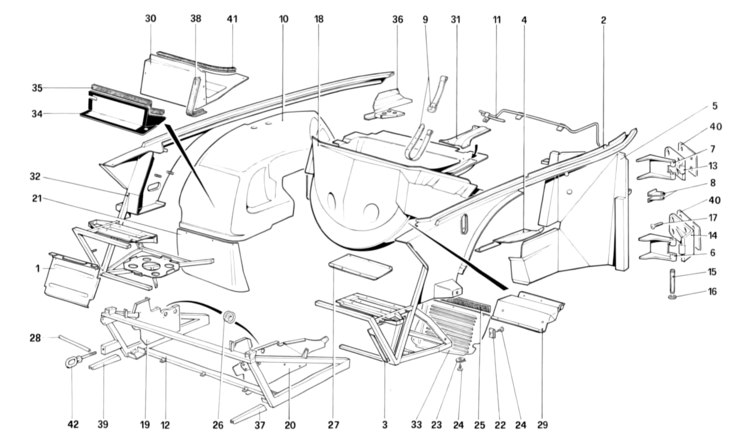

Table 102 - Body shell - Inner elements without antiskid

Ref.Part#Qty.DescriptionPrice
1606404001
Protection for battery -Not for US - SA

Part#: 60640400 Qty: 1

606373001
Protection for battery - US - SA

Part#: 60637300 Qty: 1

2616987001
Front L.H. panel work

Part#: 61698700 Qty: 1

3616983001
L.H. shieldpanel for A C condenser

Part#: 61698300 Qty: 1

4609025001
Plate for L H. wheelhouse - LHD

Part#: 60902500 Qty: 1

609034001
Plate for L.H. wheelhouse - RHD

Part#: 60903400 Qty: 1

51204591
Front R.H. shield LHD

Part#: 120459 Qty: 1

1204651
Front R.H, shield RHD

Part#: 120465 Qty: 1

1166461
Front L.H. shield - LHD

Part#: 116646 Qty: 1

1204681
Front L H. shield RHD

Part#: 120468 Qty: 1

6605473002
(1) Lower hinge for door

Part#: 60547300 Qty: 2

613408001
(2) Lower for R.H. door

Part#: 61340800 Qty: 1

612128001
(2) Lower hinge for L.H. door

Part#: 61212800 Qty: 1

7605470002
Upper hinge for door

Part#: 60547000 Qty: 2

5605491004
Bracket

Part#: 60549100 Qty: 4

9607173001
Belt -Not for US - SA
$72.45

Part#: 60717300 Qty: 1$72.45

10606157001
Wheelhouse. front R H

Part#: 60615700 Qty: 1

606158001
Wheelhouse. front L H

Part#: 60615800 Qty: 1

11607874001
Cable duct for front bonnet - LHD

Part#: 60787400 Qty: 1

608965001
Cable duct for front bonnet RHD

Part#: 60896500 Qty: 1

121264591
Front frame -Not for US - SA - AUS

Part#: 126459 Qty: 1

1266301
Front frame US - SA

Part#: 126630 Qty: 1

1280121
Front frame AUS

Part#: 128012 Qty: 1

13605472002
Upper mobile hinge for door

Part#: 60547200 Qty: 2

14605475002
Lower mobile hinge for door
$42.00

Part#: 60547500 Qty: 2$42.00

15605476004
Pin for door hinge
$10.50

Part#: 60547600 Qty: 4$10.50

16161609768
Seeger ring

Part#: 16160976 Qty: 8

176012720616
Screw
$1.05

Part#: 60127206 Qty: 16$1.05

18611085001
Spare wheel carrier -Not for RHD - US - SA

Part#: 61108500 Qty: 1

610302001
Spare wheel carrier US SA

Part#: 61030200 Qty: 1

618348001
Spare wheel carrier RHD

Part#: 61834800 Qty: 1

19612904001
R.H. shieldpanel for radiator

Part#: 61290400 Qty: 1

61963900
R.H. shieldpanel for radiator SA-US only -From 10-3-86

Part#: 61963900

20606658001
L.H. shieldpanel for radiator

Part#: 60665800 Qty: 1

619368001
L.H. shieldpanel for radiator -US-SA only- -From 10-3-86
$110.00

Part#: 61936800 Qty: 1$110.00

21617322006
R.H. front gravel guard

Part#: 61732200 Qty: 6

22606963006
Upper clip

Part#: 60696300 Qty: 6

236064690012
Lower clip

Part#: 60646900 Qty: 12

24156441012
Screw
$0.29

Part#: 15644101 Qty: 2$0.29

25606965002
Gasket

Part#: 60696500 Qty: 2

26103964801
Fair - laid
$2.82

Part#: 10396480 Qty: 1$2.82

27606433001
Upper shieldpanel for A C condenser

Part#: 60643300 Qty: 1

28618945001
Reinforcement

Part#: 61894500 Qty: 1

29606435001
Upper rear panel for A C condenser

Part#: 60643500 Qty: 1

30609485001
Front shieldpanel for water bag

Part#: 60948500 Qty: 1

31607415001
Cable shieldpanel on wheel carrier

Part#: 60741500 Qty: 1

32616986001
Front R.H. panel work
$638.43

Part#: 61698600 Qty: 1$638.43

33617323001
Gravel, guard front L.H

Part#: 61732300 Qty: 1

34606415001
Lid for battery inspection

Part#: 60641500 Qty: 1

35606416001
Gasket

Part#: 60641600 Qty: 1

36610888001
Plate for front R.H. wheelhouse

Part#: 61088800 Qty: 1

371249741
LH bracket-Not for US-SA

Part#: 124974 Qty: 1

1266141
L.H. bracket - US - SA

Part#: 126614 Qty: 1

38609205001
Gasket
$13.66

Part#: 60920500 Qty: 1$13.66

391249741
RH bracket-Not for US-SA

Part#: 124974 Qty: 1

1266141
R.H. bracket US SA

Part#: 126614 Qty: 1

40607320001
Zincofil

Part#: 60732000 Qty: 1

41609202001
Gasket

Part#: 60920200 Qty: 1

42608711001
Eyebolt US - SA

Part#: 60871100 Qty: 1
