Ferrari Philadelphia Parts

Table 50

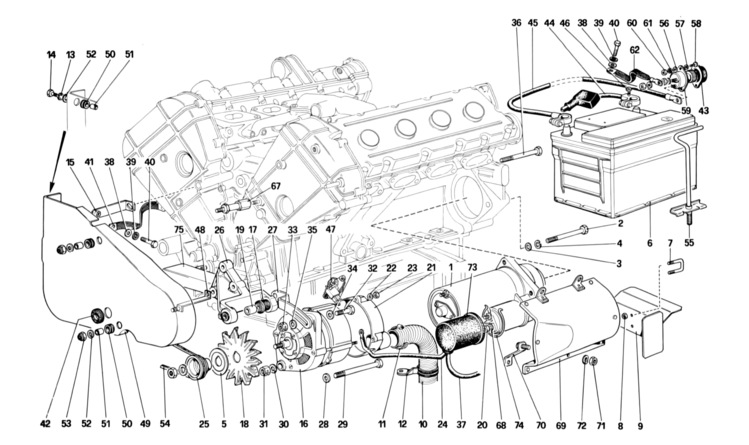

Table 50 - Electric generation system

Ref.Part#Qty.DescriptionPrice
11209671
Starter motor (BOSCH)

Part#: 120967 Qty: 1

2160451212
Fixing bolt
$11.00

Part#: 16045121 Qty: 2$11.00

3111980713
Washer

Part#: 11198071 Qty: 3

4105196213
Washer

Part#: 10519621 Qty: 3

51143051
Washer

Part#: 114305 Qty: 1

61180601
Battery 12V-66AH-300A

Part#: 118060 Qty: 1

6619339001
Battery 12V-70AH- 380 A In alternative (Not for US)

Part#: 61933900 Qty: 1

71165911
Fixing plate

Part#: 116591 Qty: 1

8125740112
Nut

Part#: 12574011 Qty: 2

91204511
Metal shield for protection

Part#: 120451 Qty: 1

101211901
Pipe

Part#: 121190 Qty: 1

11121800901
Clamp
$3.75

Part#: 12180090 Qty: 1$3.75

121218391
Clamp

Part#: 121839 Qty: 1

131068501
Washer

Part#: 106850 Qty: 1

14109024211
Screw

Part#: 10902421 Qty: 1

151216211
Bracket

Part#: 121621 Qty: 1

161217611
Alternator BOSCH 85A

Part#: 121761 Qty: 1

171179692
Elastic bush

Part#: 117969 Qty: 2

181188021
Fan

Part#: 118802 Qty: 1

191246781
Bush

Part#: 124678 Qty: 1

20161008111
Nut

Part#: 16100811 Qty: 1

211218371
Air conveyor

Part#: 121837 Qty: 1

22126011714
Washer

Part#: 12601171 Qty: 4

23158964214
Nut

Part#: 15896421 Qty: 4

241211881
Generator connecting cables

Part#: 121188 Qty: 1

251237081
Pulley

Part#: 123708 Qty: 1

261246551
Support for alternator

Part#: 124655 Qty: 1

271179371
Plate for regulation

Part#: 117937 Qty: 1

28135504211
Washer

Part#: 13550421 Qty: 1

29159729211
Bolt
$5.89

Part#: 15972921 Qty: 1$5.89

30126014711
Washer

Part#: 12601471 Qty: 1

311177021
Nut

Part#: 117702 Qty: 1

32113438211
Screw

Part#: 11343821 Qty: 1

331177021
Nut

Part#: 117702 Qty: 1

34135504211
Washer

Part#: 13550421 Qty: 1

351053911
Washer

Part#: 105391 Qty: 1

361280091
Fixing bolt
$32.45

Part#: 128009 Qty: 1$32.45

371164151
Cable starter to engine connector

Part#: 116415 Qty: 1

38105196012
Washer

Part#: 10519601 Qty: 2

39106156792
Washer

Part#: 10615679 Qty: 2

40160431212
Bolt

Part#: 16043121 Qty: 2

411156681
Earth cable for engine

Part#: 115668 Qty: 1

42615055001
Cap
$1.75

Part#: 61505500 Qty: 1$1.75

431194411
Cover for switch

Part#: 119441 Qty: 1

441164141
(B) Cable from battery to connector engine side

Part#: 116414 Qty: 1

441236741
(A) Cable from battery to connector engine side

Part#: 123674 Qty: 1

451167541
Cable from battery to battery switch connector or to ground

Part#: 116754 Qty: 1

46125754111
Nut-For cable no. 116414

Part#: 12575411 Qty: 1

46161044111
Nut-For cable no 123674
$0.50

Part#: 16104411 Qty: 1$0.50

471218401
Voltage regulator
$85.00

Part#: 121840 Qty: 1$85.00

481233311
Bracket

Part#: 123331 Qty: 1

491242621
Protection plate for alternator belt

Part#: 124262 Qty: 1

501035493
Anti vibration rubber
$1.80

Part#: 103549 Qty: 3$1.80

511035503
Bush
$3.25

Part#: 103550 Qty: 3$3.25

52126437013
Washer

Part#: 12643701 Qty: 3

53125754112
Nut

Part#: 12575411 Qty: 2

541237091
Control belt alternator After exhaustion use no 130493

Part#: 123709 Qty: 1

55606411001
Bolt assembly holding battery

Part#: 60641100 Qty: 1

56144985011
Washer

Part#: 14498501 Qty: 1

57126394012
Washer

Part#: 12639401 Qty: 2

58103734112
Screw

Part#: 10373411 Qty: 2

591236771
Battery switch

Part#: 123677 Qty: 1

60161017112
Nut

Part#: 16101711 Qty: 2

61106151712
Washer

Part#: 10615171 Qty: 2

621167531
Copper braid from battery terminal hearth chassis

Part#: 116753 Qty: 1

631194411
Cover for switch

Part#: 119441 Qty: 1

66125754111
Nut

Part#: 12575411 Qty: 1

671242631
Stud bolt

Part#: 124263 Qty: 1

68105166701
Washer
$1.25

Part#: 10516670 Qty: 1$1.25

691070381
Shield panel Not for US-CH-Cabriolet-SA

Part#: 107038 Qty: 1

701070391
g racket Not for US - CH - Cabriolet - SA

Part#: 107039 Qty: 1

71158962111
Nut -Not for US - CH - Cabriolet - SA

Part#: 15896211 Qty: 1

72126437011
Washer -Not for US - CH - Cabriolet - SA

Part#: 12643701 Qty: 1

731139901
Cover

Part#: 113990 Qty: 1

741055501
Stop ring

Part#: 105550 Qty: 1

751083041
Shield panel - For US - SA

Part#: 108304 Qty: 1
