Ferrari Philadelphia Parts

Table 45

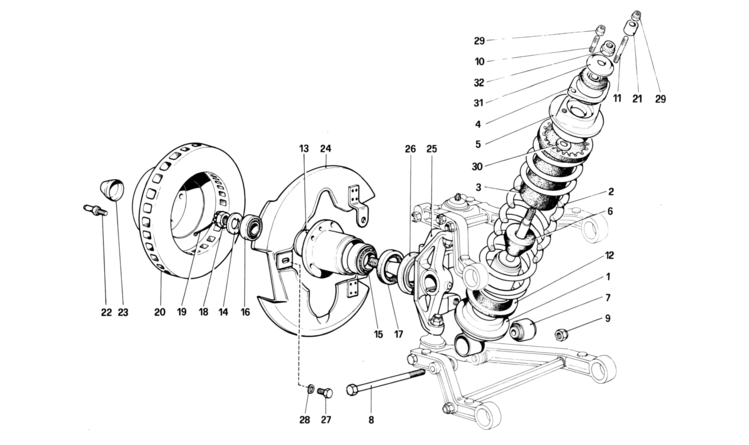

Table 45 - Front suspension - Shock absorber and brake disc

Ref.Part#Qty.DescriptionPrice
11177182
Shock absorber
$410.00

Part#: 117718 Qty: 2$410.00

21051032
Spring

Part#: 105103 Qty: 2

31009802
Upper spacer for spring
$104.92

Part#: 100980 Qty: 2$104.92

41177202
Hyperblock
$306.61

Part#: 117720 Qty: 2$306.61

51177192
Cup

Part#: 117719 Qty: 2

61177172
Rebound bumper

Part#: 117717 Qty: 2

71056342
Estenblock
$187.32

Part#: 105634 Qty: 2$187.32

81032412
Bolt
$132.07

Part#: 103241 Qty: 2$132.07

9161051212
Nut

Part#: 16105121 Qty: 2

10135461212
Short stud

Part#: 13546121 Qty: 2

11135467212
Long stud

Part#: 13546721 Qty: 2

121009882
Lower spacer for spring
$56.08

Part#: 100988 Qty: 2$56.08

131159702
Front hub

Part#: 115970 Qty: 2

141014462
Washer
$25.09

Part#: 101446 Qty: 2$25.09

151013632
Inner bearing
$35.54

Part#: 101363 Qty: 2$35.54

161045882
Outer bearing
$62.30

Part#: 104588 Qty: 2$62.30

171159692
Sealing ring
$50.07

Part#: 115969 Qty: 2$50.07

18107246211
RH castellated nut
$4.00

Part#: 10724621 Qty: 1$4.00

116380211
LH castellated nut
$37.21

Part#: 11638021 Qty: 1$37.21

19107338012
Split pin

Part#: 10733801 Qty: 2

201105852
Disk brake

Part#: 110585 Qty: 2

211177212
Spacer

Part#: 117721 Qty: 2

221043704
Centering screw (wheel to hub)
$1.50

Part#: 104370 Qty: 4$1.50

231111942
Cup for front wheel hub

Part#: 111194 Qty: 2

241105731
Guard for RH brake disk

Part#: 110573 Qty: 1

1105741
Guard for LH brake disk

Part#: 110574 Qty: 1

251105811
RH stub axle
$1402.00

Part#: 110581 Qty: 1$1402.00

1105821
LH stub axle

Part#: 110582 Qty: 1

261101502
Ring, complete, for hub protection
$182.00

Part#: 110150 Qty: 2$182.00

27160432212
Bolt
$0.10

Part#: 16043221 Qty: 2$0.10

28105166712
Washer

Part#: 10516671 Qty: 2

29125756214
Nut

Part#: 12575621 Qty: 4

301177302
Lower washer

Part#: 117730 Qty: 2

311177652
Upper washer

Part#: 117765 Qty: 2

32161051212
Nut

Part#: 16105121 Qty: 2
