Table 54

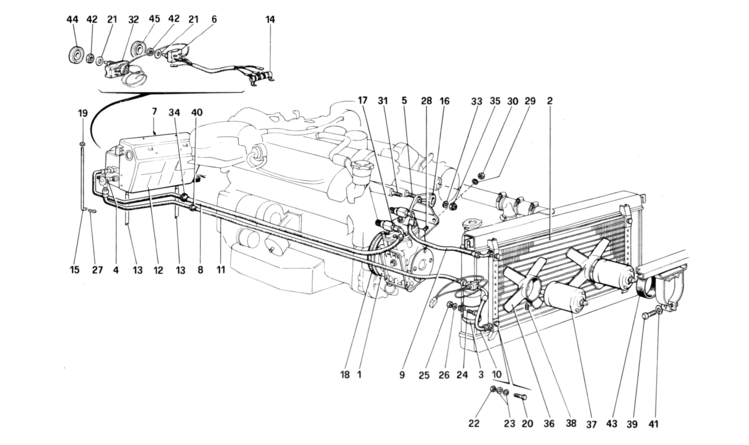

Table 54 - Air conditioning system

Ref.Part#Qty.DescriptionPrice
11043281
Joint, anticlockwise rotation (12V - 6'')

Part#: 104328 Qty: 1

21019881
Condenser
$360.90

Part#: 101988 Qty: 1$360.90

31147301
Drier with pressure switches

Part#: 114730 Qty: 1

4609296001
Expansion valve
$265.00

Part#: 60929600 Qty: 1$265.00

1072161
Sealing ring for valve

Part#: 107216 Qty: 1

5134501211
Stud

Part#: 13450121 Qty: 1

61019901
Commutator

Part#: 101990 Qty: 1

71019831
Fan unit

Part#: 101983 Qty: 1

81071361
Tube for Freon D. 5/8'' for LHD

Part#: 107136 Qty: 1

81113361
Tube for Freon D. 5/8'' for RHD

Part#: 111336 Qty: 1

91071371
Tube for Freon D. 1/2''

Part#: 107137 Qty: 1

101071341
Tube for Freon D. 3/8''

Part#: 107134 Qty: 1

111147291
Tube for Freon D. 3/8'' for LHD

Part#: 114729 Qty: 1

111147501
Tube for Freon D. 3/8'' for RHD

Part#: 114750 Qty: 1

1195731
Air conditioning unit, complete

Part#: 119573 Qty: 1

121203451
Air conditioner (with unit no. 119573)

Part#: 120345 Qty: 1

131019962
Tube, condensate drainage

Part#: 101996 Qty: 2

141071421
Resistance for commutator

Part#: 107142 Qty: 1

151015682
Tie rod, securing evaporator unit

Part#: 101568 Qty: 2

161004591
Support for compressor

Part#: 100459 Qty: 1

171157761
Compressor
$550.00

Part#: 115776 Qty: 1$550.00

181004752
Compressor belt
$40.00

Part#: 100475 Qty: 2$40.00

19125742112
Nut

Part#: 12574211 Qty: 2

20109030214
Bolt

Part#: 10903021 Qty: 4

211071442
Washer

Part#: 107144 Qty: 2

22125742114
Nut

Part#: 12574211 Qty: 4

23126437018
Washer

Part#: 12643701 Qty: 8

24109026211
Bolt
$0.21

Part#: 10902621 Qty: 1$0.21

25158962111
Nut

Part#: 15896211 Qty: 1

261068501
Washer
$0.65

Part#: 106850 Qty: 1$0.65

27107957012
Split pin

Part#: 10795701 Qty: 2

281004723
Stud
$13.95

Part#: 100472 Qty: 3$13.95

29126386013
Washer
$1.00

Part#: 12638601 Qty: 3$1.00

30125745213
Nut
$2.00

Part#: 12574521 Qty: 3$2.00

31134500212
Stud
$3.16

Part#: 13450021 Qty: 2$3.16

321092531
Thermostat

Part#: 109253 Qty: 1

33135504213
Washer

Part#: 13550421 Qty: 3

341022501
Boot on flame guard for evaporator -compressor tube

Part#: 102250 Qty: 1

35125745213
Selflocking nut
$2.00

Part#: 12574521 Qty: 3$2.00

361194482
4-blade fan
$64.41

Part#: 119448 Qty: 2$64.41

371194472
Electric fan motor
$461.27

Part#: 119447 Qty: 2$461.27

38138045212
Dowel

Part#: 13804521 Qty: 2

39109026212
Bolt
$0.21

Part#: 10902621 Qty: 2$0.21

401022511
Boot on flame guard for drier - evaporator tube

Part#: 102251 Qty: 1

411068502
Washer
$0.65

Part#: 106850 Qty: 2$0.65

421059112
Nut

Part#: 105911 Qty: 2

431118722
Vibration-damping ring

Part#: 111872 Qty: 2

441195751
Knob for thermostat
$14.69

Part#: 119575 Qty: 1$14.69

45611124001
Knob for commutator
$93.95

Part#: 61112400 Qty: 1$93.95
