Ferrari Philadelphia Parts

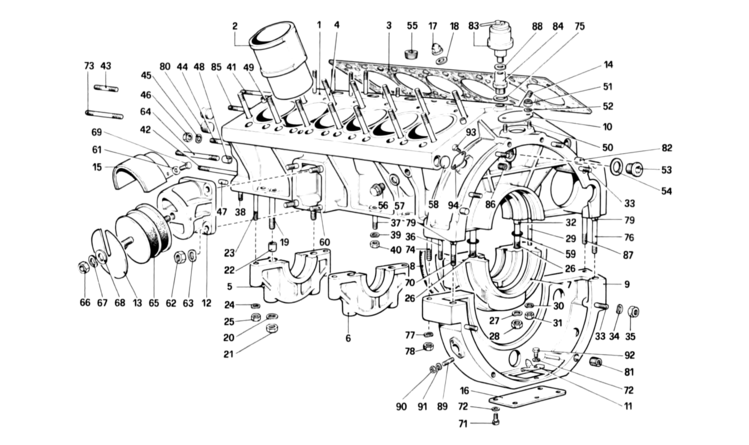

Table 1

Table 1 - Crankcase

Ref.Part#Qty.DescriptionPrice
1260781
Crankcase complete

Part#: 126078 Qty: 1

11260771
Crankcase With unit no 126078

Part#: 126077 Qty: 1

212661612
Cylinder barrel

Part#: 126616 Qty: 12

31000962
Gasket
$450.00

Part#: 100096 Qty: 2$450.00

410009827
Stud securing heads
$102.00

Part#: 100098 Qty: 27$102.00

51088291
Front support With complete crankcase

Part#: 108829 Qty: 1

61088275
Intermediate support With complete crankcase

Part#: 108827 Qty: 5

71088281
Rear support With complete crankcase

Part#: 108828 Qty: 1

81000661
Gasket

Part#: 100066 Qty: 1

1266291
Flange for clutch complete

Part#: 126629 Qty: 1

91260791
Flange for clutch

Part#: 126079 Qty: 1

101029021
Inspection cover
$14.95

Part#: 102902 Qty: 1$14.95

111262061
Timing reference bracket

Part#: 126206 Qty: 1

121062632
Support for crankcase

Part#: 106263 Qty: 2

131000844
Shim for buffer
$70.84

Part#: 100084 Qty: 4$70.84

141000991
Stud, securing head
$42.50

Part#: 100099 Qty: 1$42.50

151062662
Guard for buffer
$168.75

Part#: 106266 Qty: 2$168.75

161001831
Plate on rear flange

Part#: 100183 Qty: 1

1710010128
Nut, securing heads
$50.29

Part#: 100101 Qty: 28$50.29

1810010028
Washer
$8.65

Part#: 100100 Qty: 28$8.65

1910001212
Long stud

Part#: 100012 Qty: 12

201119867312
Washer
$2.10

Part#: 11198673 Qty: 12$2.10

211610162112
Nut

Part#: 16101621 Qty: 12

2210001312
Dowel
$2.23

Part#: 100013 Qty: 12$2.23

2310318312
Short stud
$12.00

Part#: 103183 Qty: 12$12.00

2410318012
Washer
$0.49

Part#: 103180 Qty: 12$0.49

2510318112
Nut
$0.87

Part#: 103181 Qty: 12$0.87

261041702
Long stud

Part#: 104170 Qty: 2

27126016712
Washer

Part#: 12601671 Qty: 2

28161016212
Nut

Part#: 16101621 Qty: 2

291031792
Short stud
$17.02

Part#: 103179 Qty: 2$17.02

301031802
Washer
$0.49

Part#: 103180 Qty: 2$0.49

311031812
Nut
$0.87

Part#: 103181 Qty: 2$0.87

321000132
Dowel
$2.23

Part#: 100013 Qty: 2$2.23

33136439216
Stud For 412 M

Part#: 13643921 Qty: 6

34111980716
Washer For 412 M

Part#: 11198071 Qty: 6

35161008216
Nut

Part#: 16100821 Qty: 6

361000202
Stud, securing sump

Part#: 100020 Qty: 2

371351732110
Mean stud

Part#: 13517321 Qty: 10

38135168212
Stud

Part#: 13516821 Qty: 2

391119807114
Washer

Part#: 11198071 Qty: 14

401610082114
Nut

Part#: 16100821 Qty: 14

411000362
Stud

Part#: 100036 Qty: 2

421000371
Stud

Part#: 100037 Qty: 1

43135174211
Stud
$36.85

Part#: 13517421 Qty: 1$36.85

441000381
Stud

Part#: 100038 Qty: 1

45111980716
Washer

Part#: 11198071 Qty: 6

46161008215
Nut

Part#: 16100821 Qty: 5

1012401
Selflocking nut

Part#: 101240 Qty: 1

471000401
Dowel

Part#: 100040 Qty: 1

481000411
Dowel

Part#: 100041 Qty: 1

491000974
Dowel
$18.70

Part#: 100097 Qty: 4$18.70

50115000212
Stud

Part#: 11500021 Qty: 2

511012392
Nut
$3.50

Part#: 101239 Qty: 2$3.50

52104141701
Washer

Part#: 10414170 Qty: 1

53102750401
Plug

Part#: 10275040 Qty: 1

54102634601
Gasket
$1.00

Part#: 10263460 Qty: 1$1.00

55143255402
Conical plug
$8.95

Part#: 14325540 Qty: 2$8.95

56103007402
Water drain plug
$31.95

Part#: 10300740 Qty: 2$31.95

57102570602
Gasket
$1.00

Part#: 10257060 Qty: 2$1.00

58105188014
Expansion plug

Part#: 10518801 Qty: 4

591000152
Seal ring
$2.50

Part#: 100015 Qty: 2$2.50

60134495218
Stud

Part#: 13449521 Qty: 8

61126011714
Washer

Part#: 12601171 Qty: 4

62121647218
Nut
$1.65

Part#: 12164721 Qty: 8$1.65

63111983718
Washer

Part#: 11198371 Qty: 8

641000362
Stud

Part#: 100036 Qty: 2

651049562
Buffer for engine Until exhaustion

Part#: 104956 Qty: 2

651312522
Buffer for engine After exhaustion
$302.00

Part#: 131252 Qty: 2$302.00

66121647212
Nut
$1.65

Part#: 12164721 Qty: 2$1.65

671068532
Washer

Part#: 106853 Qty: 2

68107305142
Washer
$0.89

Part#: 10730514 Qty: 2$0.89

69109776242
Screw, hexagonal head

Part#: 10977624 Qty: 2

701028101
Stud

Part#: 102810 Qty: 1

711001844
Screw

Part#: 100184 Qty: 4

721397215
Washer

Part#: 139721 Qty: 5

731000391
Stud

Part#: 100039 Qty: 1

741028101
Stud

Part#: 102810 Qty: 1

75102570602
Gasket
$1.00

Part#: 10257060 Qty: 2$1.00

76134506211
Stud

Part#: 13450621 Qty: 1

77111983714
Washer

Part#: 11198371 Qty: 4

78121647214
Nut
$1.65

Part#: 12164721 Qty: 4$1.65

791000522
Dowel

Part#: 100052 Qty: 2

80102684502
Plug

Part#: 10268450 Qty: 2

81135258702
Heli-coil

Part#: 13525870 Qty: 2

82108399102
Reference dowel

Part#: 10839910 Qty: 2

831225921
Sender
$265.00

Part#: 122592 Qty: 1$265.00

841182611
Union for sender

Part#: 118261 Qty: 1

851041871
Stud

Part#: 104187 Qty: 1

86102683502
Plug
$6.55

Part#: 10268350 Qty: 2$6.55

871041861
Stud
$27.86

Part#: 104186 Qty: 1$27.86

88102599601
Gasket
$1.00

Part#: 10259960 Qty: 1$1.00

89135390214
Stud

Part#: 13539021 Qty: 4

90158964114
Nut

Part#: 15896411 Qty: 4

911068494
Washer

Part#: 106849 Qty: 4

92109775211
Screw

Part#: 10977521 Qty: 1

93109775214
Screw

Part#: 10977521 Qty: 4

941284391
Cover

Part#: 128439 Qty: 1

1284401
Cover

Part#: 128440 Qty: 1
