Ferrari Philadelphia Parts

Table 118

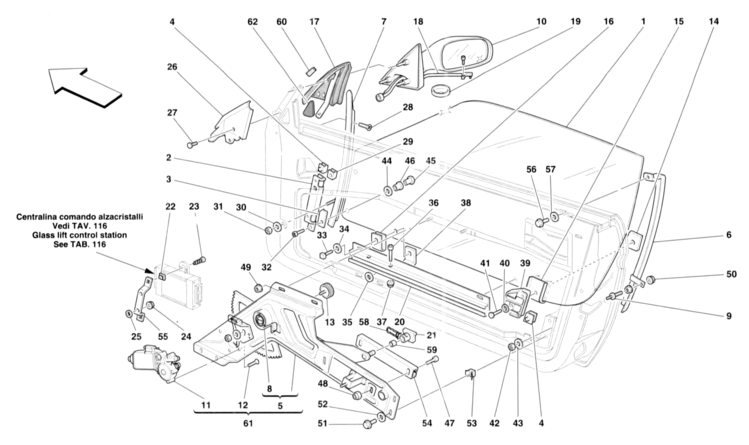

Table 118 - Doors - Power window and rearview mirror

Ref.Part#Qty.DescriptionPrice
1631637001
R.H. DOOR GLASS With 8 mm. D. fixing holes-

Part#: 63163700 Qty: 1

631638001
L.H. DOOR GLASS -With 8 mm. D. fixing holes-

Part#: 63163800 Qty: 1

2637681001
R.H. GUIDE SHOE
$65.89

Part#: 63768100 Qty: 1$65.89

637682001
L.H. GUIDE SHOE

Part#: 63768200 Qty: 1

3634869002
GASKET

Part#: 63486900 Qty: 2

4637679008
CLIP
$23.54

Part#: 63767900 Qty: 8$23.54

5635802001
R.H. GLASS LIFT DEVICE -Not as spare part nowReplaced by 64092000

Part#: 63580200 Qty: 1

640920001
R.H. GLASS LIFT DEVICE Substitutes 63209400

Part#: 64092000 Qty: 1

635801001
L.H. GLASS LIFT DEVICE -Not as spare part nowReplaced by 64092100
$2088.95

Part#: 63580100 Qty: 1$2088.95

640921001
L.H. GLASS LIFT DEVICE -Substitutes 63209500

Part#: 64092100 Qty: 1

6637865001
R.H. REAR GLASS GUIDE

Part#: 63786500 Qty: 1

637866001
L.H. REAR GLASS GUIDE

Part#: 63786600 Qty: 1

7631966001
R.H. FRONT GLASS GUIDE -Valid till stock exhaustion-

Part#: 63196600 Qty: 1

656432001
R.H. FRONT GLASS GUIDE -Valid after stock exhaustion of 63196600

Part#: 65643200 Qty: 1

631967001
L.H. FRONT GLASS GUIDE -Valid till stock exhaustion-

Part#: 63196700 Qty: 1

656434001
L.H. FRONT GLASS GUIDE -Valid after stock exhaustion of 63196700

Part#: 65643400 Qty: 1

8638963002
HELICOIDAL SPRING

Part#: 63896300 Qty: 2

9627713002
STUD Not as spare part now Replaced by 65224500-
$14.72

Part#: 62771300 Qty: 2$14.72

652245002
DOUBLE THREADED SCREW -Substitutes 62771300

Part#: 65224500 Qty: 2

10640570001
R.H. EXTERNAL REAR MIRROR -Not for USA CDN and GO

Part#: 64057000 Qty: 1

640784001
R.H. EXTERNAL REAR MIRROR -Valid for USA and CDN-

Part#: 64078400 Qty: 1

640779001
R.H. EXTERNAL REAR MIRROR -Valid for GD-

Part#: 64077900 Qty: 1

637147001
L.H. EXTERNAL REAR MIRROR -Not for GB. ZA and AUS

Part#: 63714700 Qty: 1

640780001
L.H. EXTERNAL REAR MIRROR -Valid for GB and ZA

Part#: 64078000 Qty: 1

640809001
L.H. EXTERNAL REAR MIRROR -Valid for AUS

Part#: 64080900 Qty: 1

11632118001
R.H. GLASS LIFTING MOTOR
$977.96

Part#: 63211800 Qty: 1$977.96

632119001
L.H. GLASS LIFTING MOTOR

Part#: 63211900 Qty: 1

12159179048
SCREW

Part#: 15917904 Qty: 8

13638964002
STOP BUFFER

Part#: 63896400 Qty: 2

14637680002
FIXING PLATE

Part#: 63768000 Qty: 2

15631688002
PRELOADING REGULATOR

Part#: 63168800 Qty: 2

16631201004
PLATE GASKET
$4.53

Part#: 63120100 Qty: 4$4.53

17637158001
R.H. OUTER MIRROR GASKET

Part#: 63715800 Qty: 1

637159001
L.H. OUTER MIRROR GASKET

Part#: 63715900 Qty: 1

18638936001
OUTER TEMPERATURE SENSOR

Part#: 63893600 Qty: 1

19637151001
L.H. PLUG (with sensor hole)

Part#: 63715100 Qty: 1

637150001
R.H. PLUG (without sensor hole)

Part#: 63715000 Qty: 1

20632102001
R.H. GUIDE

Part#: 63210200 Qty: 1

632103001
L.H. GUIDE

Part#: 63210300 Qty: 1

21640811006
GUIDE SHOE -Not as spare nowReplaced by 64081100

Part#: 64081100 Qty: 6

640811006
SMALL BLOCK FOR GUIDES Substitutes 63486200

Part#: 64081100 Qty: 6

22142154804
NUT SCREW
$1.00

Part#: 14215480 Qty: 4$1.00

23156888144
SCREW

Part#: 15688814 Qty: 4

24140841114
NUT

Part#: 14084111 Qty: 4

25126381774
WASHER

Part#: 12638177 Qty: 4

26637869001
R.H. MIRROR INNER MOLDING

Part#: 63786900 Qty: 1

637870001
L.H. MIRROR INNER MOLDING
$38.10

Part#: 63787000 Qty: 1$38.10

27615686002
FIXING BUTTON
$1.25

Part#: 61568600 Qty: 2$1.25

28642222004
SCREW

Part#: 64222200 Qty: 4

29638901008
GASKET
$8.91

Part#: 63890100 Qty: 8$8.91

30126437244
WASHER
$0.29

Part#: 12643724 Qty: 4$0.29

31125754114
NUT

Part#: 12575411 Qty: 4

32132719144
SCREW

Part#: 13271914 Qty: 4

33159658144
SCREW
$6.99

Part#: 15965814 Qty: 4$6.99

34105194018
WASHER

Part#: 10519401 Qty: 8

35638966002
RUBBER

Part#: 63896600 Qty: 2

36143037244
SCREW

Part#: 14303724 Qty: 4

37125740114
NUT

Part#: 12574011 Qty: 4

38632104004
GLASS FIXING PLATE

Part#: 63210400 Qty: 4

39638536001
R.H. MOVING GUIDE
$12.87

Part#: 63853600 Qty: 1$12.87

638537001
L.H. MOVING GUIDE

Part#: 63853700 Qty: 1

40144964012
WASHER

Part#: 14496401 Qty: 2

41109032242
SCREW
$0.30

Part#: 10903224 Qty: 2$0.30

42125754112
NUT

Part#: 12575411 Qty: 2

43126437012
WASHER

Part#: 12643701 Qty: 2

44627980004
WASHER -For 5,5 mm. D. fixing holes-

Part#: 62798000 Qty: 4

45627982004
BUSHING For 5.5 mm. O fixing holes-

Part#: 62798200 Qty: 4

629328004
BUSHING -For 8 mm. D. fixing holes-
$1.22

Part#: 62932800 Qty: 4$1.22

46629329004
BUSH -For 8 mm. D. fixing holes-
$4.29

Part#: 62932900 Qty: 4$4.29

47143037244
SCREW

Part#: 14303724 Qty: 4

48125740114
NUT

Part#: 12574011 Qty: 4

49140396144
NUT

Part#: 14039614 Qty: 4

50140397142
NUT

Part#: 14039714 Qty: 2

51116126244
SCREW

Part#: 11612624 Qty: 4

52126437244
WASHER
$0.29

Part#: 12643724 Qty: 4$0.29

53606591004
NUT WITH CAGE

Part#: 60659100 Qty: 4

54632050001
R.H. SUPPORT -Valid till Ass. Nr. 22893-

Part#: 63205000 Qty: 1

658364001
R.H. SUPPORT -Valid from Ass. Nr. 22894
$47.37

Part#: 65836400 Qty: 1$47.37

632051001
L.H. SUPPORT -Valid till Ass. Nr. 22893

Part#: 63205100 Qty: 1

640916001
L.H. SUPPORT -Valid from Ass. Nr. 22894

Part#: 64091600 Qty: 1

55634813002
BRACKET FOR CONTROL UNIT FIXING

Part#: 63481300 Qty: 2

56116126242
SCREW

Part#: 11612624 Qty: 2

57126437012
WASHER

Part#: 12643701 Qty: 2

58640812006
CLIP FOR SCREW

Part#: 64081200 Qty: 6

59640813004
BUSHING -Valid till Ass. Nr. 22893

Part#: 64081300 Qty: 4

640919004
BUSHING Valid from Ass. Nr. 22894

Part#: 64091900 Qty: 4

60141843742
CLIP

Part#: 14184374 Qty: 2

61662190001
COMPLETE R.H. GLASS LIFT DEVICE

Part#: 66219000 Qty: 1

662191001
COMPLETE L.H. GLASS LIFT DEVICE

Part#: 66219100 Qty: 1

62650931004
SEALING

Part#: 65093100 Qty: 4
