Ferrari Philadelphia Parts

Table 14

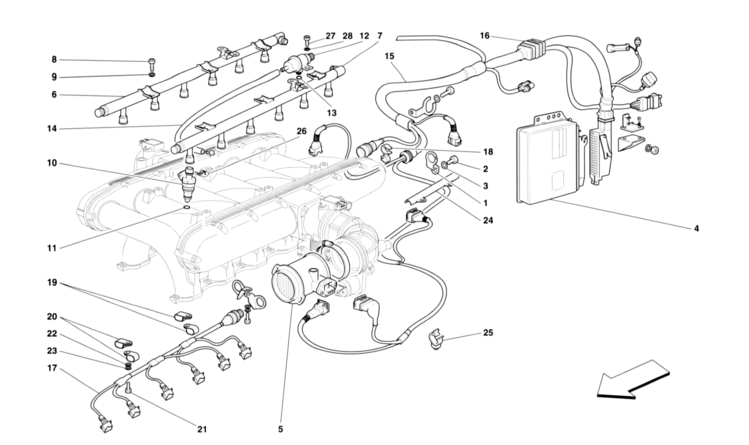

Table 14 - Injection device

Ref.Part#Qty.DescriptionPrice
11553272
BRACKET

Part#: 155327 Qty: 2

2160431242
SCREW

Part#: 16043124 Qty: 2

31274962
WASHER
$0.50

Part#: 127496 Qty: 2$0.50

41649222
ELECTRONIC CONTROL STATION -Valid for MOTRONIC 2.7- -Not for 456 GTA-

Part#: 164922 Qty: 2

1688922
ELECTRONIC CONTROL STATION PROGRAMMED -Valid for MOTRONIC 5.2- -Not for 456 GTA- -Valid for catalyzed cars- -Not for USA CDN and AUS-

Part#: 168892 Qty: 2

1701342
ELECTRONIC CONTROL STATION PROGRAMMED -Valid for MOTRONIC 5.2-Valid for 456 GTA -Valid for catalyzed carsNot for USA CDN and AUS

Part#: 170134 Qty: 2

1688932
ELECTRONIC CONTROL STATION PROGRAMMED -Valid for MOTRONIC 5.2-Not for 456 GTAValid for USA CDN and AUS

Part#: 168893 Qty: 2

1701352
ELECTRONIC CONTROL STATION PROGRAMMED -Valid for MOTRONIC 5.2- -Valid for 456 GTA- -Valid for USA CDN and AUS-

Part#: 170135 Qty: 2

1701332
ELECTRONIC CONTROL STATION PROGRAMMED -Valid for MOTRONIC 5.2-Not for 456 GTA -Valid for not catalyzed cars-

Part#: 170133 Qty: 2

1719692
ELECTRONIC CONTROL STATION PROGRAMMED -Valid for MOTRONIC 5.2-Valid for 456 GTA-Valid for not catalyzed cars-

Part#: 171969 Qty: 2

51549162
AIR INDICATOR -Valid for MOTRONIC 2.7-

Part#: 154916 Qty: 2

1625302
AIR INDICATOR -Valid for MOTRONIC 5.2-
$1672.27

Part#: 162530 Qty: 2$1672.27

61610191
R.H. INJECTORS COMPLETE TUBE -Valid for MOTRONIC 2.7-Valid till engine Nr. 35662

Part#: 161019 Qty: 1

1493741
R.H. INJECTORS COMPLETE TUBE -Valid for MOTRONIC 2.7-Valid from engine Nr. 35663-

Part#: 149374 Qty: 1

1537471
R.H. INJECTORS COMPLETE TUBE -Valid for MOTRONIC 5.2- -Valid till engine Nr. 43160- -Substituted by 173751-

Part#: 153747 Qty: 1

1718411
R.H. INJECTORS COMPLETE TUBE -Valid for MOTRONIC 5.2- -Valid till engine Nr. 43161 and till engine Nr. 47018- -Substituted by 173751-

Part#: 171841 Qty: 1

1737511
R.H. INJECTORS COMPLETE TUBE -Valid for MOTRONIC 5.2 -Valid till engine Nr 47019-11- -Substitutes 153747 and 171841-

Part#: 173751 Qty: 1

71610201
L.H. INJECTORS COMPLETE TUBE -Valid for MOTRONIC 2.7- -Valid till engine Nr. 35662-

Part#: 161020 Qty: 1

1493751
L.H. INJECTORS COMPLETE TUBE -Valid for MOTRONIC 2.7-Valid from engine Nr. 35663-

Part#: 149375 Qty: 1

1537481
L.H. INJECTORS COMPLETE TUBE -Valid for MOTRONIC 5.2- -Valid till engine Nr. 43160- -Substituted by 173745-

Part#: 153748 Qty: 1

1718421
L.H. INJECTORS COMPLETE TUBE -Valid for MOTRONIC 5.2Valid from engine Nr. 43161 and till engine Nr. 47018-Substituted by 173745-

Part#: 171842 Qty: 1

1737451
L.H. INJECTORS COMPLETE TUBE -Valid for MOTRONIC 5.2- -Valid till engine Nr. 47019-

Part#: 173745 Qty: 1

814305246
SCREW

Part#: 1430524 Qty: 6

9126012746
WASHER
$1.00

Part#: 12601274 Qty: 6$1.00

1014389112
ELECTRO-INJECTOR -Valid for MOTRONIC 2.7-

Part#: 143891 Qty: 12

16261312
ELECTRO-INJECTOR -Valid for MOTRONIC 5.2-
$358.38

Part#: 162613 Qty: 12$358.38

1113390212
O.R. GASKET
$5.95

Part#: 133902 Qty: 12$5.95

121482542
PRESSURE REGULATOR

Part#: 148254 Qty: 2

131522112
SEAL RING

Part#: 152211 Qty: 2

141189012
RUBBER HOSE

Part#: 118901 Qty: 2

151524701
CABLES FOR L.H. MAIN BEARINGS CONNECTION -Valid for MOTRONIC 2.7Not for USA CON CH and GD-

Part#: 152470 Qty: 1

1581161
CABLES FOR L.H. MAIN BEARINGS CONNECTION -Valid for MOTRONIC 2.7-Valid for USA CDN and CH-

Part#: 158116 Qty: 1

1565771
CABLES FOR LH MAIN BEARINGS CONNECTION -Valid for MOTRONIC 2.7- -Valid for GD-

Part#: 156577 Qty: 1

1693461
CABLES FOR L.H. MAIN BEARINGS CONNECTION Valid for MOTRONIC 5.2456 GT-Not for GD-

Part#: 169346 Qty: 1

1693471
CABLES FOR L.H. MAIN BEARINGS CONNECTION -Valid for MOTRONIC 5.2 456 GT- -Valid for GD- -Valid till engine Nr. 44749-

Part#: 169347 Qty: 1

1727641
CABLES FOR L.H. MAIN BEARINGS CONNECTION -Valid for MOTRONIC 5.2- -456 GT- -Valid for GD- -Valid from engine Nr. 44750-

Part#: 172764 Qty: 1

1689071
CABLES FOR L.H. MAIN BEARINGS CONNECTION -Valid for MOTRONIC 5.2- -456 GTA- -Not for GD-

Part#: 168907 Qty: 1

1689441
CABLES FOR L.H. MAIN BEARINGS CONNECTION -Valid for MOTRONIC 5.2- -456 GTA- -Valid for GD- -Valid till engine Nr. 44629-

Part#: 168944 Qty: 1

1727621
CABLES FOR L.H. MAIN BEARINGS CONNECTION -Valid for MOTRONIC 5.2- -456 GTA- -Valid for GD- -Valid from engine Nr. 44630-

Part#: 172762 Qty: 1

1524691
CABLES FOR R.H. MAIN BEARINGS CONNECTION -Valid for MOTRONIC 2.7- -Not for USA CDN CH and GD- -Valid till Ass. Nr. 20878-

Part#: 152469 Qty: 1

1673811
CABLES FOR R.H. MAIN BEARINGS CONNECTION -Valid for MOTRONIC 2.7- -Not for USA CDN CH and GD- -Valid from Ass. Nr. 20879-

Part#: 167381 Qty: 1

1581171
CABLES FOR R.H. MAIN BEARINGS CONNECTION -Valid for MOTRONIC 2.7- -Valid for USA CDN and CH- -Valid till Ass. Nr. 20878-

Part#: 158117 Qty: 1

1673821
CABLES FOR R.H. MAIN BEARINGS CONNECTION -Valid for MOTRONIC 2.7-Valid for USA. CDN and CHValid from Ass. Nr. 20879
$1781.04

Part#: 167382 Qty: 1$1781.04

1565761
CABLES FOR R.H. MAIN BEARINGS CONNECTION -Valid for MOTRONIC 2.7-Valid for GD -Valid till Ass. Nr. 20878

Part#: 156576 Qty: 1

1673831
CABLES FOR R.H. MAIN BEARINGS CONNECTION -Valid for MOTRONIC 2.7- -Valid for GD- -Valid from Ass. Nr. 20879-

Part#: 167383 Qty: 1

1689081
CABLES FOR R.H. MAIN BEARINGS CONNECTION -Valid for MOTRONIC 5.2- -Not for GD-

Part#: 168908 Qty: 1

1689431
CABLES FOR R.H. MAIN BEARINGS CONNECTION -Valid for MOTRONIC 5.2 -Valid for GD -Valid till engine Nr. 44749 for 456 GT -Valid till engine Nr. 44629 for 456 GTA

Part#: 168943 Qty: 1

1727611
CABLES FOR R.H. MAIN BEARINGS CONNECTION -Valid for MOTRONIC 5.2- -Valid for GD- -Valid from engine Nr. 44750 for 456 GT- -Valid from engine Nr. 44630 for 456 GTA-

Part#: 172761 Qty: 1

161394652
BELLOWS FOR CABLE BUSHING
$245.00

Part#: 139465 Qty: 2$245.00

171547872
INJECTORS CONNECTION CABLES -Valid till stock exhaustion-

Part#: 154787 Qty: 2

1685292
INJECTORS CONNECTION CABLES -Valid after stock exhaustion of 154787

Part#: 168529 Qty: 2

181455452
SPRINGS

Part#: 145545 Qty: 2

19104188012
FIXING BRACKET

Part#: 10418801 Qty: 2

20104186012
FIXING BRACKET

Part#: 10418601 Qty: 2

21109020242
SCREW
$0.90

Part#: 10902024 Qty: 2$0.90

22126397242
WASHER
$0.50

Part#: 12639724 Qty: 2$0.50

231274942
WASHER
$0.65

Part#: 127494 Qty: 2$0.65

241547722
BRACKET FOR CABLES FIXING

Part#: 154772 Qty: 2

251597401
CLIP
$0.30

Part#: 159740 Qty: 1$0.30

2614476312
INJECTORS RETAINING CLIP

Part#: 144763 Qty: 12

271727634
SCREW

Part#: 172763 Qty: 4

281274944
WASHER
$0.65

Part#: 127494 Qty: 4$0.65
