Ferrari Philadelphia Parts

Table 26

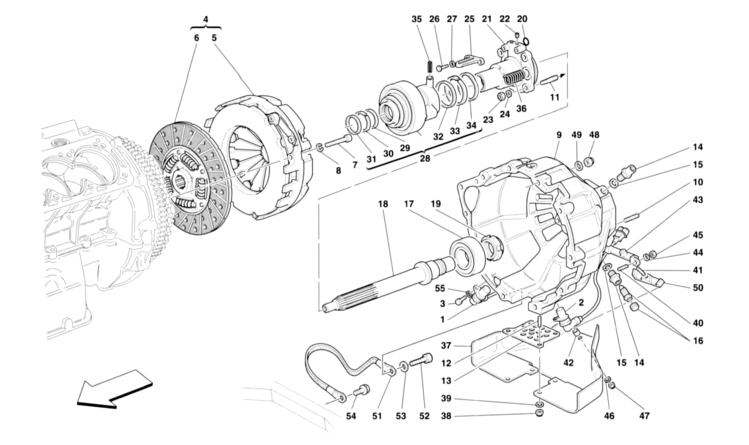

Table 26 - Clutch - Controls -Not for 456 GTA-

Ref.Part#Qty.DescriptionPrice
11640821
R.H. SIDE ANGULAR SPEED SENSOR -Valid for MOTRONIC 2.7-
$215.45

Part#: 164082 Qty: 1$215.45

1640821
R.H. SIDE ANGULAR SPEED SENSOR -Valid for MOTRONIC 5.2-
$215.45

Part#: 164082 Qty: 1$215.45

21640831
L.H. SIDE ANGULAR SPEED SENSOR -Valid for MOTRONIC 2.7-
$215.35

Part#: 164083 Qty: 1$215.35

1640831
L.H. SIDE ANGULAR SPEED SENSOR -Valid for MOTRONIC 5.2-
$215.35

Part#: 164083 Qty: 1$215.35

3143051242
SCREW

Part#: 14305124 Qty: 2

41537241
COMPLETE CLUTCH

Part#: 153724 Qty: 1

51947751
PRESSURE PLATE Not as spare partWith complete clutch 153724
$3158.08

Part#: 194775 Qty: 1$3158.08

61537211
CLUTCH DISC

Part#: 153721 Qty: 1

7143059349
SCREW
$1.55

Part#: 14305934 Qty: 9$1.55

81274949
WASHER
$0.65

Part#: 127494 Qty: 9$0.65

1532011
COMPLETE CLUTCH HOUSING
$837.75

Part#: 153201 Qty: 1$837.75

91532011
CLUTCH HOUSING -Not as spare part-With complete clutch housing-
$837.75

Part#: 153201 Qty: 1$837.75

10135463348
STUD

Part#: 13546334 Qty: 8

11135431244
STUD

Part#: 13543124 Qty: 4

12110010244
STUD
$2.37

Part#: 11001024 Qty: 4$2.37

131444411
CLUTCH HOUSING COVER
$12.50

Part#: 144441 Qty: 1$12.50

141264962
UNION

Part#: 126496 Qty: 2

15102570602
GASKET
$1.00

Part#: 10257060 Qty: 2$1.00

161216991
BLEEDER SCREW
$44.35

Part#: 121699 Qty: 1$44.35

171458051
BEARING
$144.20

Part#: 145805 Qty: 1$144.20

181546011
CLUTCH SHAFT

Part#: 154601 Qty: 1

191530001
RING NUT
$190.70

Part#: 153000 Qty: 1$190.70

201218132
GASKET
$1.90

Part#: 121813 Qty: 2$1.90

211749381
FLANGE WITH SLEEVE

Part#: 174938 Qty: 1

22102675502
THREADED PLUG

Part#: 10267550 Qty: 2

231339894
NUT
$0.50

Part#: 133989 Qty: 4$0.50

241274964
WASHER
$0.50

Part#: 127496 Qty: 4$0.50

251516411
PLATE -Valid till engine Nr. 36799

Part#: 151641 Qty: 1

1516931
PLATE -Valid from engine Nr. 36800

Part#: 151693 Qty: 1

26109775242
SCREW

Part#: 10977524 Qty: 2

271274932
WASHER
$0.10

Part#: 127493 Qty: 2$0.10

281772011
COMPLETE THRUST BEARING -Valid till engine Nr. 36799-Valid till stock exhaust-After stock exhaustion replace: 160852+151693+13904970
$2130.35

Part#: 177201 Qty: 1$2130.35

1608521
COMPLETE THRUST BEARING -Valid from engine Nr. 36800 -Valid till stock exhaustion-

Part#: 160852 Qty: 1

1772011
COMPLETE THRUST BEARING -Valid after stock exhaustion of 160852
$2130.35

Part#: 177201 Qty: 1$2130.35

291545051
SEAL RING
$18.10

Part#: 154505 Qty: 1$18.10

301545041
RING
$5.97

Part#: 154504 Qty: 1$5.97

311545501
SCRAPER RING
$21.30

Part#: 154550 Qty: 1$21.30

321545081
SEAL RING
$58.07

Part#: 154508 Qty: 1$58.07

331545071
RING
$5.50

Part#: 154507 Qty: 1$5.50

341545511
SCRAPER RING
$31.97

Part#: 154551 Qty: 1$31.97

35141639701
FLEXIBLE PIN -Valid till engine Nr. 36799
$1.90

Part#: 14163970 Qty: 1$1.90

139049701
FLEXIBLE PIN -Valid from engine Nr. 36800
$0.90

Part#: 13904970 Qty: 1$0.90

361552072
PRELOAD SPRING
$8.42

Part#: 155207 Qty: 2$8.42

371544851
SHIELD FOR FASE SENSOR PROTECTION

Part#: 154485 Qty: 1

38158964704
NUT
$2.27

Part#: 15896470 Qty: 4$2.27

39126011794
WASHER

Part#: 12601179 Qty: 4

40135408242
STUD

Part#: 13540824 Qty: 2

411551771
STUD
$15.00

Part#: 155177 Qty: 1$15.00

421551751
SPACER
$1.58

Part#: 155175 Qty: 1$1.58

431544641
SUPPORT

Part#: 154464 Qty: 1

44126397242
WASHER
$0.50

Part#: 12639724 Qty: 2$0.50

45125754112
NUT

Part#: 12575411 Qty: 2

46111992742
WASHER

Part#: 11199274 Qty: 2

47158964702
NUT
$2.27

Part#: 15896470 Qty: 2$2.27

48161008119
NUT -From engine Nr. 36183 qty 5-

Part#: 16100811 Qty: 9

49126013749
WASHER -From engine Nr. 36183 q.ty 5-
$0.49

Part#: 12601374 Qty: 9$0.49

501466541
SUPPORT

Part#: 146654 Qty: 1

511559181
CABLE FOR ENGINE

Part#: 155918 Qty: 1

52143068244
SCREW -Valid from engine Nr. 36183-

Part#: 14306824 Qty: 4

53111938744
WASHER -Valid from engine Nr. 36183-
$0.10

Part#: 11193874 Qty: 4$0.10

54162964211
SCREW

Part#: 16296421 Qty: 1

55126012742
WASHER
$1.00

Part#: 12601274 Qty: 2$1.00
