Table 27

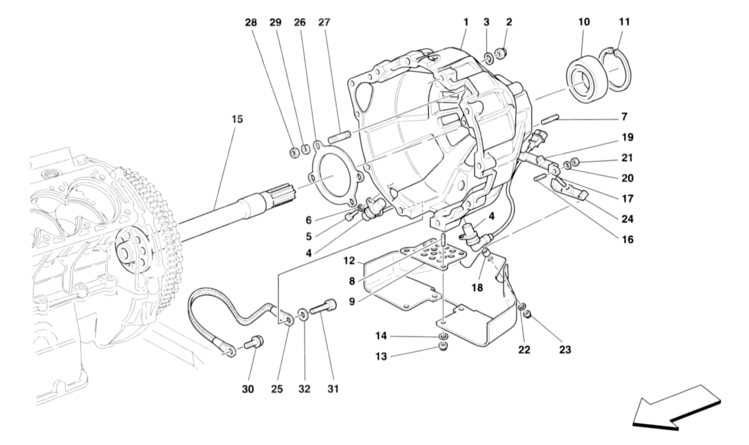

Table 27 - Clutch housing -Valid for 456 GTA-

Ref.Part#Qty.DescriptionPrice
1736221
COMPLETE CLUTCH HOUSING -Valid till Ass. Nr. 27197

Part#: 173622 Qty: 1

1788701
COMPLETE CLUTCH HOUSING -Valid from Ass. Nr. 27198-

Part#: 178870 Qty: 1

11696391
CLUTCH HOUSING -Not as spare part- -With the complete clutch housing 173622- -Valid till Ass. Nr. 27197-

Part#: 169639 Qty: 1

1744671
CLUTCH HOUSING -Not as spare part- -With the complete clutch housing 178870- -Valid from Ass. Nr. 27198

Part#: 174467 Qty: 1

2161008149
NUT
$0.45

Part#: 16100814 Qty: 9$0.45

3126013749
WASHER
$0.49

Part#: 12601374 Qty: 9$0.49

41640821
ANGULAR SPEED SENSOR
$215.45

Part#: 164082 Qty: 1$215.45

1640831
COMPLETE ANGULAR SPEED SENSOR
$215.35

Part#: 164083 Qty: 1$215.35

5143051242
SCREW

Part#: 14305124 Qty: 2

6126012742
WASHER
$1.00

Part#: 12601274 Qty: 2$1.00

7135463348
STUD

Part#: 13546334 Qty: 8

8110010244
STUD
$2.37

Part#: 11001024 Qty: 4$2.37

91444411
CLUTCH HOUSING COVER
$12.50

Part#: 144441 Qty: 1$12.50

101458051
BEARING -Valid till Ass. Nr. 27197-
$144.20

Part#: 145805 Qty: 1$144.20

1744701
BEARING -Valid from Ass. Nr. 27198-

Part#: 174470 Qty: 1

111445111
STOP RING

Part#: 144511 Qty: 1

121544851
SHIELD

Part#: 154485 Qty: 1

13158964704
NUT
$2.27

Part#: 15896470 Qty: 4$2.27

14126011744
WASHER
$0.26

Part#: 12601174 Qty: 4$0.26

151618391
PROPELLER SHAFT WITH FLANGE -Valid till Ass. Nr. 28850

Part#: 161839 Qty: 1

1742161
PROPELLER SHAFT WITH FLANGE -Valid from Ass. Nr. 28851-

Part#: 174216 Qty: 1

16135408242
STUD

Part#: 13540824 Qty: 2

171551771
STUD
$15.00

Part#: 155177 Qty: 1$15.00

181551751
SPACER
$1.58

Part#: 155175 Qty: 1$1.58

191544641
SUPPORT

Part#: 154464 Qty: 1

20126397242
WASHER
$0.50

Part#: 12639724 Qty: 2$0.50

211027412
NUT
$0.75

Part#: 102741 Qty: 2$0.75

22111992741
WASHER

Part#: 11199274 Qty: 1

23158964701
NUT
$2.27

Part#: 15896470 Qty: 1$2.27

241466541
SUPPORT

Part#: 146654 Qty: 1

251559181
CABLE FOR ENGINE

Part#: 155918 Qty: 1

261746431
FLANGE -Valid from Ass. Nr. 27198

Part#: 174643 Qty: 1

27135431244
STUD -Valid from Ass. Nr. 27198

Part#: 13543124 Qty: 4

281339894
NUT -Valid from Ass. Nr. 27198
$0.50

Part#: 133989 Qty: 4$0.50

291274964
WASHER -Valid from Ass. Nr. 27198
$0.50

Part#: 127496 Qty: 4$0.50

30162964211
SCREW

Part#: 16296421 Qty: 1

31143068244
SCREW

Part#: 14306824 Qty: 4

32111938744
WASHER
$0.10

Part#: 11193874 Qty: 4$0.10
