Table 25

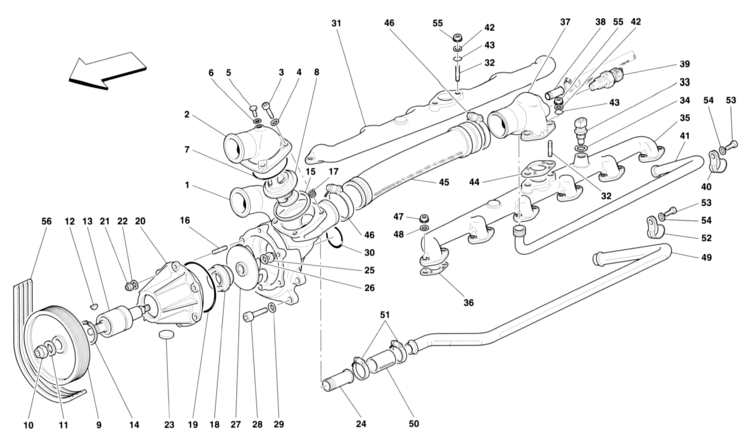

Table 25 - Water pump

Ref.Part#Qty.DescriptionPrice
1837601
COMPLETE WATER PUMP Not for 456M GTA-

Part#: 183760 Qty: 1

1699231
COMPLETE WATER PUMP -Valid for 456M GTA

Part#: 169923 Qty: 1

11531991
WATER PUMP BODY COMPLETED WITH STUDS

Part#: 153199 Qty: 1

1560811
WATER PUMP BODY Not as spare part- With complete pump body-

Part#: 156081 Qty: 1

21639521
THERMOSTATIC VALVE

Part#: 163952 Qty: 1

COVER

Part#:

3144322244
SCREW
$0.25

Part#: 14432224 Qty: 4$0.25

4126012744
WASHER
$1.00

Part#: 12601274 Qty: 4$1.00

51302821
UNION
$9.50

Part#: 130282 Qty: 1$9.50

6102977601
GASKET
$1.00

Part#: 10297760 Qty: 1$1.00

71492791
O R GASKET
$7.50

Part#: 149279 Qty: 1$7.50

81837581
THERMOSTAT
$69.50

Part#: 183758 Qty: 1$69.50

91664541
PULLEY -Not for 456M GTA-
$451.49

Part#: 166454 Qty: 1$451.49

1699241
PULLEY -Valid for 456M GTA-

Part#: 169924 Qty: 1

101027421
NUT
$3.25

Part#: 102742 Qty: 1$3.25

11126468241
WASHER
$0.75

Part#: 12646824 Qty: 1$0.75

12102023201
DISC KEY
$1.00

Part#: 10202320 Qty: 1$1.00

131437421
BEARING WITH SHAFT
$242.46

Part#: 143742 Qty: 1$242.46

14110599761
SEEGER RING
$1.50

Part#: 11059976 Qty: 1$1.50

151378731
GASKET
$7.55

Part#: 137873 Qty: 1$7.55

16135409246
STUD
$36.67

Part#: 13540924 Qty: 6$36.67

17135254704
THREADED INSERT
$2.50

Part#: 13525470 Qty: 4$2.50

181309321
SEAL RING

Part#: 130932 Qty: 1

191378681
O R. GASKET
$12.25

Part#: 137868 Qty: 1$12.25

201761731
WATER PUMP COVER

Part#: 176173 Qty: 1

211027416
NUT
$0.75

Part#: 102741 Qty: 6$0.75

22126012746
WASHER
$1.00

Part#: 12601274 Qty: 6$1.00

23101588011
PLUG
$1.50

Part#: 10158801 Qty: 1$1.50

241410681
UNION

Part#: 141068 Qty: 1

251004361
CAP NUT
$9.36

Part#: 100436 Qty: 1$9.36

26111940741
WASHER
$0.10

Part#: 11194074 Qty: 1$0.10

271545421
WATER PUMP IMPELLER
$168.09

Part#: 154542 Qty: 1$168.09

28143064244
SCREW
$0.69

Part#: 14306424 Qty: 4$0.69

29111938744
WASHER
$0.10

Part#: 11193874 Qty: 4$0.10

301412501
O R. GASKET
$0.50

Part#: 141250 Qty: 1$0.50

311626091
R.H. HEAD WATER MANIFOLD

Part#: 162609 Qty: 1

32135167244
STUD

Part#: 13516724 Qty: 4

331257691
WATER TEMPERATURE SENSOR
$71.11

Part#: 125769 Qty: 1$71.11

34102984601
GASKET
$1.00

Part#: 10298460 Qty: 1$1.00

351433231
L.H. HEAD WATER MANIFOLD

Part#: 143323 Qty: 1

3614133212
GASKET
$2.29

Part#: 141332 Qty: 12$2.29

371541981
WATER OUTLET MANIFOLD CONNECTION DUCT

Part#: 154198 Qty: 1

381550931
UNION

Part#: 155093 Qty: 1

391486771
WATER TEMPERATURE TRANSMITTER

Part#: 148677 Qty: 1

401456612
BRACKET

Part#: 145661 Qty: 2

411605541
PIPE FROM DUCT Not for GO-

Part#: 160554 Qty: 1

1608311
PIPE FROM DUCT -Valid for GO-

Part#: 160831 Qty: 1

42126013744
WASHER
$0.49

Part#: 12601374 Qty: 4$0.49

431030394
O R. GASKET
$1.45

Part#: 103039 Qty: 4$1.45

441421032
GASKET
$5.20

Part#: 142103 Qty: 2$5.20

451815991
CONNECTION SLEEVE FOR WATER OUTLET
$353.29

Part#: 181599 Qty: 1$353.29

461782032
SCREW COLLAR

Part#: 178203 Qty: 2

4713287724
NUT
$3.25

Part#: 132877 Qty: 24$3.25

481260427424
WASHER
$0.30

Part#: 12604274 Qty: 24$0.30

491547161
PIPE CONNECTING WATER PUMP AND NOURICE Not for GD-

Part#: 154716 Qty: 1

1608331
PIPE CONNECTING WATER PUMP AND NOURICE Valid for GD

Part#: 160833 Qty: 1

501752231
RUBBER HOSE
$9.50

Part#: 175223 Qty: 1$9.50

51130004902
SCREW COLLAR
$1.90

Part#: 13000490 Qty: 2$1.90

52104504901
BRACKET WITH SHEATH -D. 16-
$2.45

Part#: 10450490 Qty: 1$2.45

104506901
BRACKET WITH SHEATH -D. 20-
$1.70

Part#: 10450690 Qty: 1$1.70

53160432242
SCREW

Part#: 16043224 Qty: 2

541274962
WASHER
$0.50

Part#: 127496 Qty: 2$0.50

551011394
NUT
$1.90

Part#: 101139 Qty: 4$1.90

561664531
WATER AND HYDRAULIC STEERING PUMP BELT -Not for 456M GTA

Part#: 166453 Qty: 1

1699261
WATER AND HYDRAULIC STEERING PUMP BELT -Valid for 456M GTA

Part#: 169926 Qty: 1
