Ferrari Philadelphia Parts

Table 107

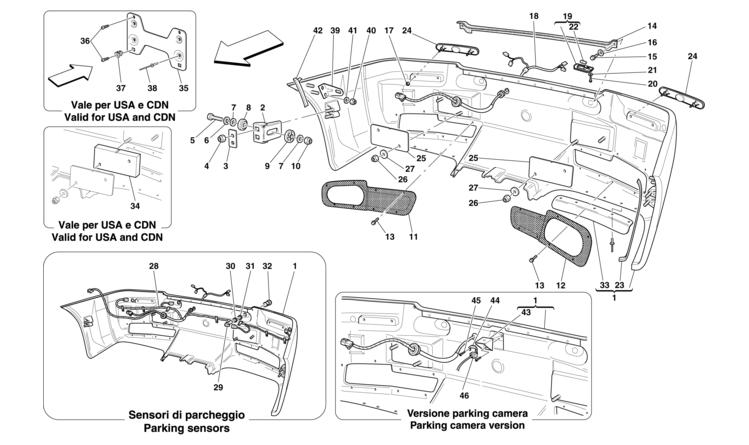

Table 107 - REAR BUMPER

Ref.Part#Qty.DescriptionPrice
1670900101
REAR BUMPER -Not for USA, CDN, GOLFO-

Part#: 67090010 Qty: 1

1676107101
REAR BUMPER -Parking sensors- -Optional- -Not for ''60

Part#: 67610710 Qty: 1

1671463101
REAR BUMPER -Applicable for USA-

Part#: 67146310 Qty: 1

1683126101
REAR BUMPER -Applicable for CDN-

Part#: 68312610 Qty: 1

1676109101
REAR BUMPER -Parking sensors- -Optional- -Does not contain sensors- -Applicable for USA-

Part#: 67610910 Qty: 1

1683145101
REAR BUMPER -Parking sensors- -Optional- -Does not contain sensors- -Applicable for CDN-

Part#: 68314510 Qty: 1

1804604101
REAR BUMPER -Version with parking camera- -Optional for enhanced and ''OTO'' versions- -60

Part#: 80460410 Qty: 1

1804610101
REAR BUMPER -Version with parking camera- -Optional for enhanced and ''OTO'' versions- -60

Part#: 80461010 Qty: 1

1805981101
REAR BUMPER -Version with parking camera- -Optional for enhanced and ''OTO'' versions- -60

Part#: 80598110 Qty: 1

2621265002
LATERAL LH BUMPER MOUNTING BRACKET
$20.90

Part#: 62126500 Qty: 2$20.90

3621266002
PLATE
$12.44

Part#: 62126600 Qty: 2$12.44

41040304
NUT
$0.48

Part#: 104030 Qty: 4$0.48

5113070212
SCREW

Part#: 11307021 Qty: 2

6126443012
WASHER

Part#: 12644301 Qty: 2

7126468014
WASHER
$1.30

Part#: 12646801 Qty: 4$1.30

8621282002
EXTERNAL SPACER
$2.50

Part#: 62128200 Qty: 2$2.50

9621283002
INTERNAL SPACER
$2.50

Part#: 62128300 Qty: 2$2.50

10125745212
NUT
$2.00

Part#: 12574521 Qty: 2$2.00

11670912001
RH REAR GRILLE

Part#: 67091200 Qty: 1

11689650001
RH REAR GRILLE -Polished white chrome- -HGTC version- -Optional-

Part#: 68965000 Qty: 1

12670913001
LH REAR GRILLE

Part#: 67091300 Qty: 1

12689651001
LH REAR GRILLE -Polished white chrome- -HGTC version- -Optional-

Part#: 68965100 Qty: 1

131327407716
SCREW

Part#: 13274077 Qty: 16

14670907001
GASKET

Part#: 67090700 Qty: 1

15162851272
SCREW
$1.45

Part#: 16285127 Qty: 2$1.45

16126381772
WASHER -No longer supplied- -Replaced by 12638178-

Part#: 12638177 Qty: 2

16126381782
WASHER
$1.00

Part#: 12638178 Qty: 2$1.00

17107180114
NUT

Part#: 10718011 Qty: 4

181925531
PLATE LIGHT CABLES -Not for USA, CDN-

Part#: 192553 Qty: 1

181939851
PLATE LIGHT CABLES -Applicable for USA, CDN-

Part#: 193985 Qty: 1

191861802
LICENSE PLATE LIGHT
$92.00

Part#: 186180 Qty: 2$92.00

20156873754
SCREW
$0.80

Part#: 15687375 Qty: 4$0.80

21144962774
WASHER
$0.84

Part#: 14496277 Qty: 4$0.84

22108577902
12 V-5 W LAMP
$2.03

Part#: 10857790 Qty: 2$2.03

23679356002
GASKET

Part#: 67935600 Qty: 2

24670910002
REFLECTOR LENS
$75.37

Part#: 67091000 Qty: 2$75.37

25681133008
SHIM

Part#: 68113300 Qty: 8

25681134004
SHIM -Installed if necessary-

Part#: 68113400 Qty: 4

25670914004
SHIM -Applicable for USA, CDN-

Part#: 67091400 Qty: 4

25674599004
SHIM -Installed if necessary- -Applicable for USA, CDN-

Part#: 67459900 Qty: 4

261041144
NUT
$1.20

Part#: 104114 Qty: 4$1.20

27126443014
WASHER -No longer supplied- -Replaced by 12644364-

Part#: 12644301 Qty: 4

27126443644
WASHER

Part#: 12644364 Qty: 4

281939841
BUMPER CABLE WITH PARKING SENSORS -Parking sensors- -Optional- -Not for USA, CDN-

Part#: 193984 Qty: 1

281939861
BUMPER CABLE WITH PARKING SENSORS -Parking sensors- -Optional- -Applicable for USA, CDN-

Part#: 193986 Qty: 1

291915324
PARKING SENSOR -Parking sensors- -Optional-
$251.99

Part#: 191532 Qty: 4$251.99

301876774
RING NUT -Parking sensors- -Optional-

Part#: 187677 Qty: 4

311876784
SHIM -Parking sensors- -Optional-

Part#: 187678 Qty: 4

321876802
INTERNAL TUBE -Parking sensors- -Optional-

Part#: 187680 Qty: 2

321876792
EXTERNAL TUBE -Parking sensors- -Optional-

Part#: 187679 Qty: 2

33683020001
RH DEVIATOR

Part#: 68302000 Qty: 1

33689715001
RH DEVIATOR

Part#: 68971500 Qty: 1

34671610002
VIBRATION DAMPER -Applicable for USA, CDN-

Part#: 67161000 Qty: 2

35658863001
LICENSE PLATE MOUNT -Applicable for USA, CDN-
$123.29

Part#: 65886300 Qty: 1$123.29

35671274001
LICENSE PLATE MOUNT -Applicable for Korea- -Applicable for J-

Part#: 67127400 Qty: 1

36160843704
SCREW -Applicable for USA, CDN-
$5.98

Part#: 16084370 Qty: 4$5.98

37142019802
BLOCK -Applicable for USA, CDN-
$0.75

Part#: 14201980 Qty: 2$0.75

38142956964
RIVET -Applicable for USA, CDN-

Part#: 14295696 Qty: 4

39681147002
BRACKET

Part#: 68114700 Qty: 2

40140592144
NUT
$0.50

Part#: 14059214 Qty: 4$0.50

41126204744
WASHER
$0.15

Part#: 12620474 Qty: 4$0.15

42676106002
RUBBER MOULDING

Part#: 67610600 Qty: 2

43804606001
MOUNTING

Part#: 80460600 Qty: 1

44804607001
BRACKET

Part#: 80460700 Qty: 1

45143046212
SCREW
$0.13

Part#: 14304621 Qty: 2$0.13

462349971
PARKING CAMERA

Part#: 234997 Qty: 1
