Table 115

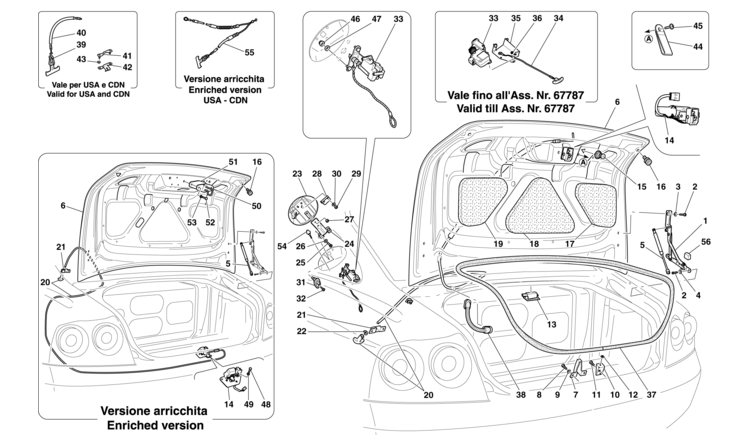

Table 115 - LUGGAGE COMPARTMENT LID AND FUEL FILLER FLAP

Ref.Part#Qty.DescriptionPrice
1676251001
COMPLETE RH HINGE

Part#: 67625100 Qty: 1

1676252001
COMPLETE LH HINGE

Part#: 67625200 Qty: 1

26707940010
SCREW

Part#: 67079400 Qty: 10

3670799004
WASHER

Part#: 67079900 Qty: 4

4126477016
WASHER

Part#: 12647701 Qty: 6

5677399002
GAS STRUT
$67.25

Part#: 67739900 Qty: 2$67.25

5805842002
GAS STRUT -Enhanced version-

Part#: 80584200 Qty: 2

6669904111
LUGGAGE COMPARTMENT LID

Part#: 66990411 Qty: 1

6800149111
LUGGAGE COMPARTMENT LID -Enhanced version- -Not for USA, CDN-

Part#: 80014911 Qty: 1

6805893111
LUGGAGE COMPARTMENT LID -Enhanced version- -Applicable for USA, CDN-

Part#: 80589311 Qty: 1

7678772001
STRIKER PLATE

Part#: 67877200 Qty: 1

8161323142
SCREW

Part#: 16132314 Qty: 2

9105234242
WASHER

Part#: 10523424 Qty: 2

10676146001
RH BRACKET

Part#: 67614600 Qty: 1

11162860242
SCREW

Part#: 16286024 Qty: 2

12142154801
BLOCK
$1.00

Part#: 14215480 Qty: 1$1.00

131882501
LIGHT UNIT
$7.75

Part#: 188250 Qty: 1$7.75

14678262001
LUGGAGE COMPARTMENT LID LOCK -Applicable until depletion-
$551.33

Part#: 67826200 Qty: 1$551.33

14678262001
LUGGAGE COMPARTMENT LID LOCK
$551.33

Part#: 67826200 Qty: 1$551.33

14693679001
LUGGAGE COMPARTMENT LID LOCK -Enhanced version-
$179.52

Part#: 69367900 Qty: 1$179.52

15682041001
VIBRATION DAMPER BLOCK -No longer supplied- -Replaced by 68204100-
$21.87

Part#: 68204100 Qty: 1$21.87

15682041001
VIBRATION DAMPER BLOCK
$21.87

Part#: 68204100 Qty: 1$21.87

16671618002
VIBRATION DAMPER
$56.64

Part#: 67161800 Qty: 2$56.64

17669668001
RH LUGGAGE COMPARTMENT LID INSULATION

Part#: 66966800 Qty: 1

18805920001
CENTRAL LUGGAGE COMPARTMENT LID INSULATION -Enhanced version- -Applicable for USA, CDN- -No longer supplied- -Replaced by 66967000-

Part#: 80592000 Qty: 1

18669670001
CENTRAL LUGGAGE COMPARTMENT LID INSULATION

Part#: 66967000 Qty: 1

19669669001
LH LUGGAGE COMPARTMENT LID INSULATION

Part#: 66966900 Qty: 1

20669821001
LID SAFETY CABLE -No longer supplied- -Replaced by 68123500-

Part#: 66982100 Qty: 1

20681235001
LID SAFETY CABLE

Part#: 68123500 Qty: 1

20800243001
LID SAFETY CABLE -Enhanced version-

Part#: 80024300 Qty: 1

202361351
LOCK CONNECTOR WIRING HARNESS -Enhanced version- -Applicable for version without Bose NIT- -Applicable for J-

Part#: 236135 Qty: 1

21678533001
BRACKET

Part#: 67853300 Qty: 1

22110876761
SNAP RING

Part#: 11087676 Qty: 1

23670926111
FUEL FILLER FLAP COVER

Part#: 67092611 Qty: 1

23695475001
FUEL FILLER FLAP COVER -Carbon- -Optional JPNS- -No longer supplied-

Part#: 69547500 Qty: 1

23804623001
FUEL FILLER FLAP COVER -Carbon- -Optional JPNS-

Part#: 80462300 Qty: 1

24679349001
FUEL FILLER FLAP HINGE

Part#: 67934900 Qty: 1

25132740142
SCREW

Part#: 13274014 Qty: 2

26126011742
WASHER
$0.26

Part#: 12601174 Qty: 2$0.26

27140841112
NUT

Part#: 14084111 Qty: 2

28678404001
STRIKER PLATE

Part#: 67840400 Qty: 1

29140841112
NUT

Part#: 14084111 Qty: 2

30681154004
SHIM

Part#: 68115400 Qty: 4

311530691
SWITCH
$8.25

Part#: 153069 Qty: 1$8.25

32160824011
SCREW

Part#: 16082401 Qty: 1

33653959001
ROCKWELL ACTUATOR -Applicable up to Ass. No. 67787-
$184.81

Part#: 65395900 Qty: 1$184.81

33695434001
ACTUATOR COMPLETE WITH BRACKET -Applicable from Ass. No. 67788-

Part#: 69543400 Qty: 1

34666782001
SAFETY CABLE -Applicable up to Ass. No. 67787-

Part#: 66678200 Qty: 1

35666798001
ACTUATOR MOUNTING BRACKET -Applicable up to Ass. No. 67787-

Part#: 66679800 Qty: 1

36110876761
SNAP RING -Applicable up to Ass. No. 67787-

Part#: 11087676 Qty: 1

37669826001
LID SEAL
$874.62

Part#: 66982600 Qty: 1$874.62

381915462
CABLE GUIDE

Part#: 191546 Qty: 2

39664039001
CHILDREN SAFETY HANDLE -Applicable for USA, CDN-

Part#: 66403900 Qty: 1

40679285001
RELEASE TIE-ROD -Applicable for USA, CDN-
$135.00

Part#: 67928500 Qty: 1$135.00

41683094001
FASTENER BRACKET FOR SAFETY CABLE BRACKET -Applicable for USA, CDN-
$38.64

Part#: 68309400 Qty: 1$38.64

42683152001
SAFETY CABLE BRACKET -Applicable for USA, CDN-
$71.00

Part#: 68315200 Qty: 1$71.00

43140591142
NUT -Applicable for USA, CDN-

Part#: 14059114 Qty: 2

44689648001
RETAINER STRAP

Part#: 68964800 Qty: 1

451698151
SCREW
$2.50

Part#: 169815 Qty: 1$2.50

46140540112
NUT -No longer supplied- -Replaced by 14054077-

Part#: 14054011 Qty: 2

46140540772
NUT

Part#: 14054077 Qty: 2

47126378782
WASHER

Part#: 12637878 Qty: 2

48161323142
SCREW -Enhanced version-

Part#: 16132314 Qty: 2

49105234242
WASHER -Enhanced version-

Part#: 10523424 Qty: 2

50692427001
STRIKER PLATE -Enhanced version-

Part#: 69242700 Qty: 1

51692426005
SHIM -Enhanced version-

Part#: 69242600 Qty: 5

52109025242
SCREW -Enhanced version-

Part#: 10902524 Qty: 2

53105234242
WASHER -Enhanced version-

Part#: 10523424 Qty: 2

54638799002
RUBBER VIBRATION DAMPER -Applicable up to Ass. No. 79794-
$16.90

Part#: 63879900 Qty: 2$16.90

54811933002
RUBBER VIBRATION DAMPER -Applicable from Ass. No. 79795-

Part#: 81193300 Qty: 2

55802891001
LUGGAGE COMPARTMENT ESCAPE CABLE FOR CHILDREN -Enhanced version- -Applicable for USA, CDN-
$292.92

Part#: 80289100 Qty: 1$292.92

56676253001
RUBBER PAD

Part#: 67625300 Qty: 1
