Table 117

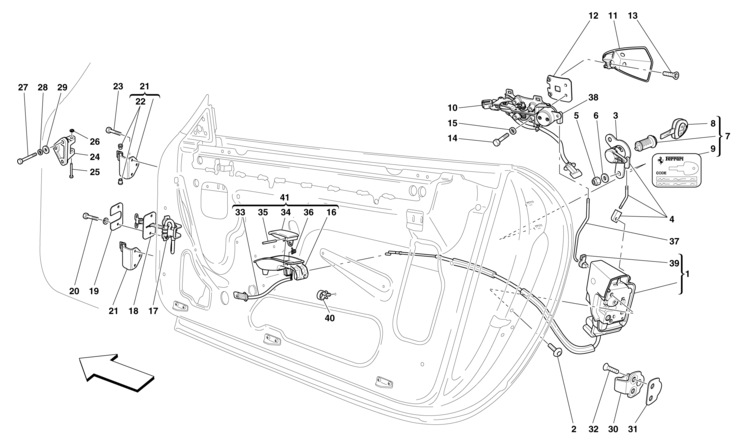

Table 117 - DOORS - OPENING MECHANISM AND HINGES

Ref.Part#Qty.DescriptionPrice
1679354001
RH DOOR LOCK

Part#: 67935400 Qty: 1

1679355001
LH DOOR LOCK

Part#: 67935500 Qty: 1

2670779006
SCREW

Part#: 67077900 Qty: 6

3676712001
RH BLOCK MOUNT

Part#: 67671200 Qty: 1

3676713001
LH BLOCK MOUNT

Part#: 67671300 Qty: 1

4676277001
RH TIE-ROD

Part#: 67627700 Qty: 1

4676278001
LH TIE-ROD

Part#: 67627800 Qty: 1

5158964114
NUT

Part#: 15896411 Qty: 4

6144469014
WASHER

Part#: 14446901 Qty: 4

71976611
COMPLETE STEERING LOCK/ANTITHEFT SYSTEM LOCK SET WITH KEYS -No longer supplied- -Replaced by 213625-

Part#: 197661 Qty: 1

72136251
COMPLETE STEERING LOCK/ANTITHEFT SYSTEM LOCK SET WITH KEYS

Part#: 213625 Qty: 1

72238671
COMPLETE STEERING LOCK/ANTITHEFT SYSTEM LOCK SET WITH KEYS -Enhanced version-

Part#: 223867 Qty: 1

82075481
UNCODED KEY -Not for ''OTO''-
$818.10

Part#: 207548 Qty: 1$818.10

82275511
UNCODED KEY -Red- -Applicable for ''OTO''-
$1050.00

Part#: 227551 Qty: 1$1050.00

91536031
CODE CARD FERRARI
$92.00

Part#: 153603 Qty: 1$92.00

10676269001
RH EXTERNAL HANDLE -No longer supplied- -Replaced by 68127300-

Part#: 67626900 Qty: 1

10681273001
RH EXTERNAL HANDLE

Part#: 68127300 Qty: 1

10676270001
LH EXTERNAL HANDLE -No longer supplied- -Replaced by 68127400-

Part#: 67627000 Qty: 1

10681274001
LH EXTERNAL HANDLE

Part#: 68127400 Qty: 1

11668664101
RH EXTERNAL DOOR HANDLE

Part#: 66866410 Qty: 1

11809931001
RH EXTERNAL DOOR HANDLE -Satin effect chrome- -Applicable for ''OTO''- -Optional- -No longer supplied-

Part#: 80993100 Qty: 1

11668665101
LH EXTERNAL DOOR HANDLE

Part#: 66866510 Qty: 1

11809932001
LH EXTERNAL DOOR HANDLE -Satin effect chrome- -Applicable for ''OTO''- -Optional- -No longer supplied-

Part#: 80993200 Qty: 1

12646595002
PLATE

Part#: 64659500 Qty: 2

13642146002
SCREW

Part#: 64214600 Qty: 2

14104452248
SCREW

Part#: 10445224 Qty: 8

15135500778
WASHER

Part#: 13550077 Qty: 8

16671859001
RH INTERNAL DOOR HANDLE BODY -Not for GD- -No longer supplied-

Part#: 67185900 Qty: 1

16689789001
RH INTERNAL DOOR HANDLE BODY -Burnished- -Optional- -Not for GD- -No longer supplied-

Part#: 68978900 Qty: 1

16679300001
RH INTERNAL DOOR HANDLE BODY -Applicable for GD- -No longer supplied-

Part#: 67930000 Qty: 1

16689800001
RH INTERNAL DOOR HANDLE BODY -Burnished- -Optional- -Applicable for GD- -No longer supplied-

Part#: 68980000 Qty: 1

16679294001
LH INTERNAL DOOR HANDLE BODY -Not for GD- -No longer supplied-

Part#: 67929400 Qty: 1

16689794001
LH INTERNAL DOOR HANDLE BODY -Burnished- -Optional- -Not for GD- -No longer supplied-

Part#: 68979400 Qty: 1

16671860001
LH INTERNAL DOOR HANDLE BODY -Applicable for GD- -No longer supplied-

Part#: 67186000 Qty: 1

16695402001
LH INTERNAL DOOR HANDLE BODY -Burnished- -Optional- -Applicable for GD- -No longer supplied-

Part#: 69540200 Qty: 1

17674998002
DOOR RETAINER TIE-ROD

Part#: 67499800 Qty: 2

18674408002
GASKET

Part#: 67440800 Qty: 2

19674407002
PLATE

Part#: 67440700 Qty: 2

20679269004
SCREW -No longer supplied- -Replaced by 13027024-

Part#: 67926900 Qty: 4

20130270244
SCREW
$0.21

Part#: 13027024 Qty: 4$0.21

21669965004
MOBILE HINGE

Part#: 66996500 Qty: 4

22628253008
BUSHING
$48.70

Part#: 62825300 Qty: 8$48.70

231161762412
SCREW

Part#: 11617624 Qty: 12

24669964004
FIXED HINGE

Part#: 66996400 Qty: 4

25673327004
PIN

Part#: 67332700 Qty: 4

26110879744
SNAP RING
$0.95

Part#: 11087974 Qty: 4$0.95

27676247008
SCREW -L. 137 mm-

Part#: 67624700 Qty: 8

27676248002
SCREW -L. 152 mm-

Part#: 67624800 Qty: 2

27676249002
SCREW -L. 172 mm-

Part#: 67624900 Qty: 2

281262890512
WASHER

Part#: 12628905 Qty: 12

291127007412
WASHER -No longer supplied- -Replaced by 12602474-

Part#: 11270074 Qty: 12

291260247412
WASHER

Part#: 12602474 Qty: 12

30683088002
STRIKER PLATE -Applicable until depletion-
$11.90

Part#: 68308800 Qty: 2$11.90

30683088002
STRIKER PLATE
$11.90

Part#: 68308800 Qty: 2$11.90

31678536002
SHIM

Part#: 67853600 Qty: 2

32144424344
SCREW

Part#: 14442434 Qty: 4

33638592002
MICROSWITCH -No longer supplied-
$416.25

Part#: 63859200 Qty: 2$416.25

34671861001
RH DOOR RELEASE LEVER -No longer supplied-

Part#: 67186100 Qty: 1

34689790001
RH DOOR RELEASE LEVER -Burnished- -Optional- -No longer supplied-

Part#: 68979000 Qty: 1

34676208001
LH DOOR RELEASE LEVER -No longer supplied-

Part#: 67620800 Qty: 1

34689795001
LH DOOR RELEASE LEVER -Burnished- -Optional- -No longer supplied-

Part#: 68979500 Qty: 1

35671862002
PIN -No longer supplied-

Part#: 67186200 Qty: 2

36671863002
LEVER RETURN SPRING -No longer supplied-

Part#: 67186300 Qty: 2

37676273001
RH TIE-ROD
$95.58

Part#: 67627300 Qty: 1$95.58

37676274001
LH TIE-ROD
$95.58

Part#: 67627400 Qty: 1$95.58

38627940002
JOINT
$10.50

Part#: 62794000 Qty: 2$10.50

39145694802
CLIP
$0.95

Part#: 14569480 Qty: 2$0.95

40145698802
CLIP -14.5 X 3-
$0.70

Part#: 14569880 Qty: 2$0.70

41668666001
RH INTERNAL DOOR HANDLE -Not for GD-

Part#: 66866600 Qty: 1

41689788001
RH INTERNAL DOOR HANDLE -Burnished- -Optional- -Not for GD-

Part#: 68978800 Qty: 1

41679299001
RH INTERNAL DOOR HANDLE -Applicable for GD-

Part#: 67929900 Qty: 1

41689799001
RH INTERNAL DOOR HANDLE -Burnished- -Optional- -Applicable for GD-

Part#: 68979900 Qty: 1

41811471001
RH INTERNAL DOOR HANDLE -Dark grey- -Applicable for ''60

Part#: 81147100 Qty: 1

41811472001
RH INTERNAL DOOR HANDLE -Micalised Ruby- -Applicable for ''60

Part#: 81147200 Qty: 1

41811751001
RH INTERNAL DOOR HANDLE -Dark grey- -Applicable for ''60

Part#: 81175100 Qty: 1

41811752001
RH INTERNAL DOOR HANDLE -Micalised Ruby- -Applicable for ''60

Part#: 81175200 Qty: 1

41679293001
LH INTERNAL DOOR HANDLE -Not for GD-

Part#: 67929300 Qty: 1

41689793001
LH INTERNAL DOOR HANDLE -Burnished- -Optional- -Not for GD-

Part#: 68979300 Qty: 1

41668667001
LH INTERNAL DOOR HANDLE -Applicable for GD-

Part#: 66866700 Qty: 1

41695401001
LH INTERNAL DOOR HANDLE -Burnished- -Optional- -Applicable for GD-

Part#: 69540100 Qty: 1

41811473001
LH INTERNAL DOOR HANDLE -Dark grey- -Applicable for ''60

Part#: 81147300 Qty: 1

41811474001
LH INTERNAL DOOR HANDLE -Micalised Ruby- -Applicable for ''60

Part#: 81147400 Qty: 1

41811749001
LH INTERNAL DOOR HANDLE -Dark grey- -Applicable for ''60

Part#: 81174900 Qty: 1

41811750001
LH INTERNAL DOOR HANDLE -Micalised Ruby- -Applicable for ''60

Part#: 81175000 Qty: 1
