Table 22

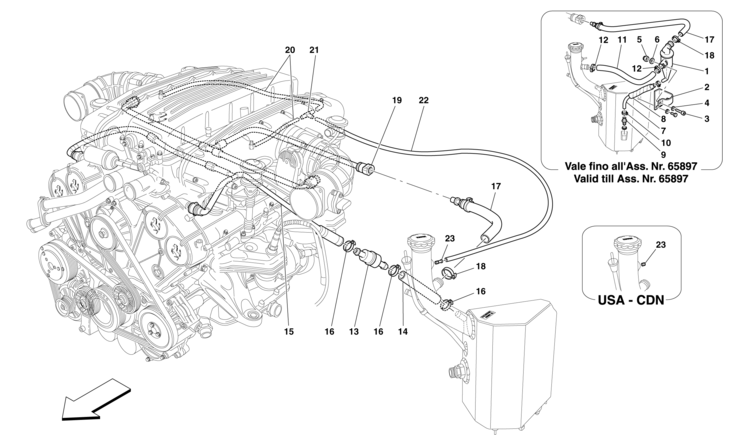

Table 22 - BLOW-BY SYSTEM

Ref.Part#Qty.DescriptionPrice
11926511
OIL DECANTER -Applicable up to Ass. No. 65897-

Part#: 192651 Qty: 1

21980781
BRACKET -Applicable up to Ass. No. 65897-

Part#: 198078 Qty: 1

3143053241
SCREW -Applicable up to Ass. No. 65897-

Part#: 14305324 Qty: 1

4126042741
WASHER -Applicable up to Ass. No. 65897-
$0.30

Part#: 12604274 Qty: 1$0.30

5158962141
NUT -Applicable up to Ass. No. 65897-
$0.75

Part#: 15896214 Qty: 1$0.75

6144993241
WASHER -Applicable up to Ass. No. 65897-
$0.35

Part#: 14499324 Qty: 1$0.35

71986551
DRAIN PIPE -Applicable up to Ass. No. 65897-

Part#: 198655 Qty: 1

82049391
PROTECTIVE SHEATH -Applicable up to Ass. No. 65897-

Part#: 204939 Qty: 1

91868491
CHECK VALVE -Applicable up to Ass. No. 65897-

Part#: 186849 Qty: 1

10134307702
COLLAR FOR HOSE UNION -Applicable up to Ass. No. 65897-
$1.20

Part#: 13430770 Qty: 2$1.20

112063481
RUBBER PIPE -Applicable up to Ass. No. 65897-

Part#: 206348 Qty: 1

12134329082
COLLAR FOR HOSE UNION -Applicable up to Ass. No. 65897- -Applicable until depletion-

Part#: 13432908 Qty: 2

12134329702
COLLAR FOR HOSE UNION -Applicable up to Ass. No. 65897- -Applicable after depletion of 13432908-
$1.33

Part#: 13432970 Qty: 2$1.33

132042511
CHECK VALVE -No longer supplied- -Replaced by 184484-

Part#: 204251 Qty: 1

131844841
CHECK VALVE
$124.10

Part#: 184484 Qty: 1$124.10

141986531
PIPE FROM VALVE TO TANK

Part#: 198653 Qty: 1

152060391
VAPOUR PIPE FROM HEADS
$402.05

Part#: 206039 Qty: 1$402.05

161780533
COLLAR FOR HOSE UNION
$4.25

Part#: 178053 Qty: 3$4.25

172072101
VAPOUR ASPIRATOR PIPE -No longer supplied- -Replaced by 198656-

Part#: 207210 Qty: 1

171986561
VAPOUR ASPIRATOR PIPE -Applicable up to Ass. No. 65897-

Part#: 198656 Qty: 1

172263001
VAPOUR ASPIRATOR PIPE -Applicable from Ass. No. 65898-

Part#: 226300 Qty: 1

18134329081
COLLAR FOR HOSE UNION -Applicable up to Ass. No. 65897- -Applicable until depletion-

Part#: 13432908 Qty: 1

18134329701
COLLAR FOR HOSE UNION -Applicable up to Ass. No. 65897- -Applicable after depletion of 13432908-
$1.33

Part#: 13432970 Qty: 1$1.33

181780531
COLLAR FOR HOSE UNION -Applicable from Ass. No. 65898-
$4.25

Part#: 178053 Qty: 1$4.25

191989931
BLOW-BY PIPE -Not for USA, CDN-

Part#: 198993 Qty: 1

192042651
BLOW-BY PIPE -Applicable for USA, CDN-
$486.15

Part#: 204265 Qty: 1$486.15

201986492
RUBBER PIPE -Replaced by 124790 and 121828- -Not for USA, CDN- -No longer supplied-

Part#: 198649 Qty: 2

201247901
RUBBER PIPE -L. 400 mm- -Not for USA, CDN-

Part#: 124790 Qty: 1

201218281
RUBBER PIPE -L. 100 mm- -Not for USA, CDN-

Part#: 121828 Qty: 1

211469721
THREE-WAY UNION -Not for USA, CDN- -No longer supplied- -Replaced by 161816-
$431.10

Part#: 146972 Qty: 1$431.10

211618161
THREE-WAY UNION -Not for USA, CDN-
$2.90

Part#: 161816 Qty: 1$2.90

221986501
RUBBER PIPE -Not for USA, CDN- -No longer supplied- -Replaced by 206378-

Part#: 198650 Qty: 1

222063781
RUBBER PIPE -Not for USA, CDN- -Applicable up to Ass. No. 74745-

Part#: 206378 Qty: 1

222400261
RUBBER PIPE -Not for USA, CDN- -Applicable from Ass. No. 74746-

Part#: 240026 Qty: 1

231177151
THREADED CONNECTOR -Not for USA, CDN-

Part#: 117715 Qty: 1

23143261011
CAP -Applicable for USA, CDN-
$1.65

Part#: 14326101 Qty: 1$1.65
