Ferrari Philadelphia Parts

Table 139

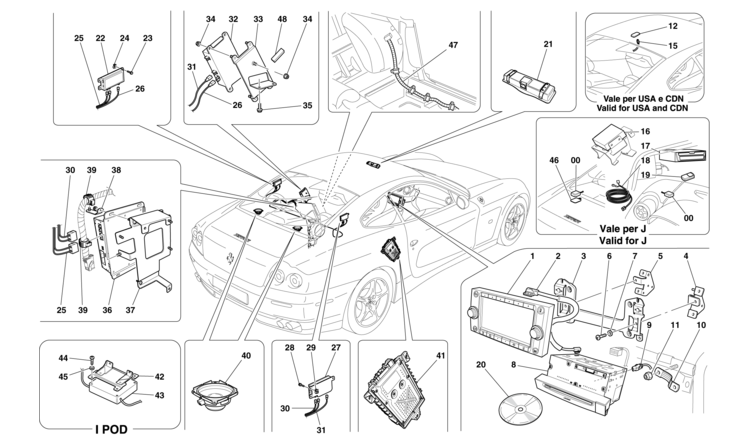

Table 139 - AUDIO SYSTEM - Enhanced version

Ref.Part#Qty.DescriptionPrice
12182931
BOSE NIT FACE PLATE WITH DISPLAY -Applicable until depletion-

Part#: 218293 Qty: 1

12466871
BOSE NIT FACE PLATE WITH DISPLAY -Applicable after depletion of 218293-

Part#: 246687 Qty: 1

22281681
NIT-DISPLAY CONNECTOR LVDS CABLE

Part#: 228168 Qty: 1

3802712001
DISPLAY FACE PLATE FASTENER BRACKET

Part#: 80271200 Qty: 1

4802707001
RH 2 DIN SILVER BOX BRACKET

Part#: 80270700 Qty: 1

5802709001
LH 2 DIN SILVER BOX BRACKET

Part#: 80270900 Qty: 1

6132716176
SCREW
$0.31

Part#: 13271617 Qty: 6$0.31

7144977016
WASHER

Part#: 14497701 Qty: 6

82182921
2 DIN SILVER BOX BOSE NIT -With navigation- -Not for USA, CDN, J-

Part#: 218292 Qty: 1

82371101
2 DIN SILVER BOX BOSE NIT LH ROW -Without navigation- -Not for USA, CDN, J-

Part#: 237110 Qty: 1

82281591
2 DIN SILVER BOX BOSE NIT -Applicable for USA, CDN-

Part#: 228159 Qty: 1

82281601
2 DIN SILVER BOX BOSE NIT -Applicable for J-

Part#: 228160 Qty: 1

92322971
GPS ANTENNA EXTENSION

Part#: 232297 Qty: 1

102332471
GROUND BRAID -No longer supplied- -Replaced by 302141-

Part#: 233247 Qty: 1

103021411
GROUND BRAID

Part#: 302141 Qty: 1

11125782112
NUT

Part#: 12578211 Qty: 2

122386291
XM ANTENNA -Applicable for USA, CDN-

Part#: 238629 Qty: 1

132386241
XM ANTENNA COVER -Imagine not available- -Applicable for USA, CDN-

Part#: 238624 Qty: 1

142462644
SCREW -Imagine not available- -Applicable for USA, CDN-

Part#: 246264 Qty: 4

152383091
XM ANTENNA COAX EXTENSION CABLE -Applicable for USA, CDN-

Part#: 238309 Qty: 1

161915881
BOSE NIT VICS ANTENNA KIT -Applicable for J-

Part#: 191588 Qty: 1

172182971
BOSE NIT NAVI -Applicable for China 2010- -Applicable for J-

Part#: 218297 Qty: 1

182322951
COAX CABLE FROM RADIO TUNER-GPS NAVIGATOR -Applicable for J-

Part#: 232295 Qty: 1

182261221
NAVIGATOR WIRING HARNESS -Applicable for J- -No longer supplied- -Replaced by 239844-

Part#: 226122 Qty: 1

182398441
NAVIGATOR WIRING HARNESS -Applicable for China 2010- -Applicable for J-

Part#: 239844 Qty: 1

192281621
NAVI REMOTE CONTROL -Applicable for J-

Part#: 228162 Qty: 1

192571771
NAVI REMOTE CONTROL -Applicable for China 2010-

Part#: 257177 Qty: 1

202372981
NAVI MAP DVD DISK -Applicable for J-

Part#: 237298 Qty: 1

212182961
BOSE NIT MICROPHONE ARRAY

Part#: 218296 Qty: 1

222272261
AMPLIFIER FOR FM2 ANTENNA -Standard-

Part#: 227226 Qty: 1

222321021
AMPLIFIER FOR FM2 TV2-TV4 ANTENNA -TV tuner- -Not for J-

Part#: 232102 Qty: 1

222272301
AMPLIFIER FOR FM2 ANTENNA -TV tuner- -Applicable for J-

Part#: 227230 Qty: 1

23132720113
SCREW

Part#: 13272011 Qty: 3

24143705713
BRACKET
$0.24

Part#: 14370571 Qty: 3$0.24

252322981
COAX CABLE FROM TV2-TV4 TUNER-FRONT AMPLIFIER

Part#: 232298 Qty: 1

262322521
FM2 ANTENNA CABLE TO RADIO

Part#: 232252 Qty: 1

272272241
AMPLIFIER FOR AM-FM1 ANTENNA -Standard-

Part#: 227224 Qty: 1

272272271
AMPLIFIER FOR AM-FM1 TV1-TV3 ANTENNA -TV tuner- -Not for J-

Part#: 227227 Qty: 1

272272291
AMPLIFIER FOR AM-FM1 ANTENNA -TV tuner- -Applicable for J-

Part#: 227229 Qty: 1

28132720113
SCREW

Part#: 13272011 Qty: 3

29143705713
BRACKET
$0.24

Part#: 14370571 Qty: 3$0.24

302322991
COAX CABLE FROM TV1-TV3 TUNER-FRONT AMPLIFIER

Part#: 232299 Qty: 1

312322531
AM-FM1 ANTENNA CABLE TO RADIO

Part#: 232253 Qty: 1

32606660891
ANALOGUE TV TUNER

Part#: 60666089 Qty: 1

332215601
TUNER BOX BRACKET

Part#: 221560 Qty: 1

34158962115
NUT

Part#: 15896211 Qty: 5

35162860242
SCREW

Part#: 16286024 Qty: 2

362182951
BOSE NIT TUNER BOX

Part#: 218295 Qty: 1

372215611
ANALOGUE TV TUNER BRACKET

Part#: 221561 Qty: 1

372371611
ANALOGUE TV TUNER BRACKET -Applicable for enhanced version and ''60

Part#: 237161 Qty: 1

382215661
TV TUNER WIRING HARNESS BRACKET

Part#: 221566 Qty: 1

392047771
CLIP -D. from 13 to 15-

Part#: 204777 Qty: 1

392047751
CLIP -D. from 17 to 21-

Part#: 204775 Qty: 1

402272702
TWIDDLER -D. 90-

Part#: 227270 Qty: 2

412272711
AUDIO AMPLIFIER

Part#: 227271 Qty: 1

42802705001
iPod FASTENER BRACKET -Version with provision for iPod-

Part#: 80270500 Qty: 1

432338781
BOSE NIT EIPMP MODULE -Version with provision for iPod-

Part#: 233878 Qty: 1

44132716174
SCREW -Version with provision for iPod-
$0.31

Part#: 13271617 Qty: 4$0.31

45144977014
WASHER -Version with provision for iPod-

Part#: 14497701 Qty: 4

46800239001
BRACKET -Applicable for China 2010- -Applicable for J-

Part#: 80023900 Qty: 1

472466631
TV TUNER WIRING HARNESS -Applicable for ''OTO''- -Not for GD-

Part#: 246663 Qty: 1

472466641
TV TUNER WIRING HARNESS -Applicable for ''OTO''- -Applicable for GD-

Part#: 246664 Qty: 1

472398401
TV TUNER WIRING HARNESS -Enhanced version-

Part#: 239840 Qty: 1

472399451
PARKING CAMERA WIRING HARNESS

Part#: 239945 Qty: 1

48683042001
FOAM

Part#: 68304200 Qty: 1
