Ferrari Philadelphia Parts

Table 8

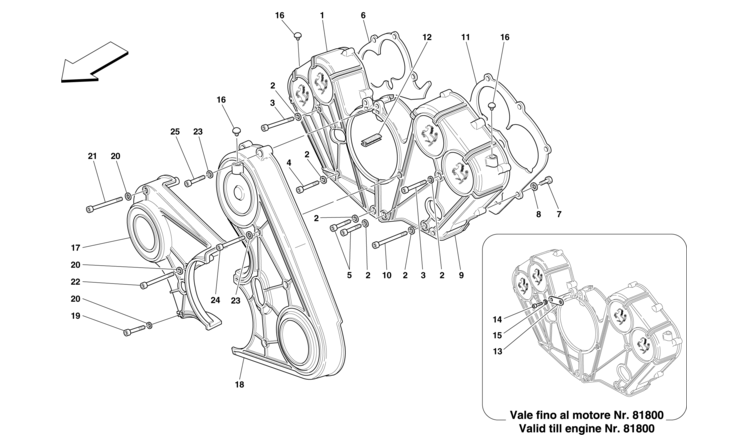

Table 8 - ENGINE COVERS

Ref.Part#Qty.DescriptionPrice
11554221
RH CASE
$262.01

Part#: 155422 Qty: 1$262.01

2126042746
WASHER
$0.30

Part#: 12604274 Qty: 6$0.30

31568292
SCREW

Part#: 156829 Qty: 2

41568281
SCREW
$2.49

Part#: 156828 Qty: 1$2.49

51568302
SCREW
$2.75

Part#: 156830 Qty: 2$2.75

61558191
RH SHIELD
$52.25

Part#: 155819 Qty: 1$52.25

71097772411
SCREW
$0.39

Part#: 10977724 Qty: 11$0.39

81263782411
WASHER
$0.50

Part#: 12637824 Qty: 11$0.50

91554791
LH CASE
$655.00

Part#: 155479 Qty: 1$655.00

101568391
SCREW
$9.95

Part#: 156839 Qty: 1$9.95

111558201
LH SHIELD
$54.57

Part#: 155820 Qty: 1$54.57

121567861
GASKET
$73.12

Part#: 156786 Qty: 1$73.12

131991191
PLATE -Applicable up to engine No. 81800-

Part#: 199119 Qty: 1

141983122
SCREW -Applicable up to engine No. 81800-

Part#: 198312 Qty: 2

15126042742
WASHER -Applicable up to engine No. 81800-
$0.30

Part#: 12604274 Qty: 2$0.30

161991182
FASTENING BUTTON -Applicable up to engine No. 81800-
$0.29

Part#: 199118 Qty: 2$0.29

161991183
FASTENING BUTTON -Applicable from engine No. 81801-
$0.29

Part#: 199118 Qty: 3$0.29

172098531
COMPRESSOR-ALTERNATOR BELT COVER -Applicable from engine No. 81801-

Part#: 209853 Qty: 1

181555761
WATER/POWER STEERING PUMP BELT COVER -Applicable from engine No. 81801-

Part#: 155576 Qty: 1

191568301
SCREW -Applicable from engine No. 81801-
$2.75

Part#: 156830 Qty: 1$2.75

20126042743
WASHER -Applicable from engine No. 81801-
$0.30

Part#: 12604274 Qty: 3$0.30

211568291
SCREW -Applicable from engine No. 81801-

Part#: 156829 Qty: 1

221568321
SCREW -Applicable from engine No. 81801-
$8.25

Part#: 156832 Qty: 1$8.25

23126042745
WASHER -Applicable from engine No. 81801-
$0.30

Part#: 12604274 Qty: 5$0.30

241568312
SCREW -Applicable from engine No. 81801-
$1.50

Part#: 156831 Qty: 2$1.50

251568302
SCREW -Applicable from engine No. 81801-
$2.75

Part#: 156830 Qty: 2$2.75
