Table 106

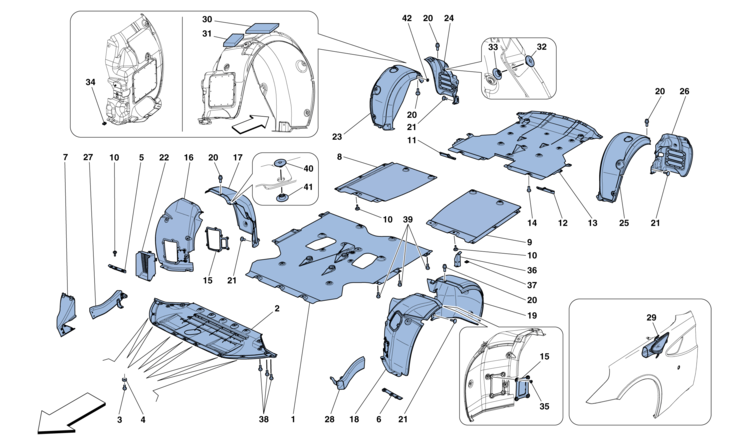

Table 106 - FLAT UNDERTRAY AND WHEELHOUSES

Ref.Part#Qty.DescriptionPrice
1840568001
FRONT FLAT UNDERTRAY SECTION

Part#: 84056800 Qty: 1

2840569001
CONNECTION FROM FRONT FLAT UNDERTRAY SECTION TO BUMPER

Part#: 84056900 Qty: 1

3834429007
SCREW
$2.25

Part#: 83442900 Qty: 7$2.25

41058647
WASHER -D. 6.5-24 X 1.5- -Installed if necessary-

Part#: 105864 Qty: 7

4144966247
WASHER -D. 10.5-21 X 2- -Installed if necessary-

Part#: 14496624 Qty: 7

5837191001
RH FRONT DAM
$28.89

Part#: 83719100 Qty: 1$28.89

6837192001
LH FRONT DAM
$28.89

Part#: 83719200 Qty: 1$28.89

7835655001
RH AIR DUCT, FIXED PART -No longer supplied- -Replaced by 84092900-

Part#: 83565500 Qty: 1

7840929001
RH AIR DUCT, FIXED PART

Part#: 84092900 Qty: 1

8826020001
RH CENTRE FLAT UNDERTRAY SECTION
$384.55

Part#: 82602000 Qty: 1$384.55

9826021001
LH CENTRE FLAT UNDERTRAY SECTION

Part#: 82602100 Qty: 1

10808747004
SCREW -No longer supplied- -Replaced by 81290900-
$2.90

Part#: 80874700 Qty: 4$2.90

10812909006
SCREW -M6 X 20 X 22-
$1.65

Part#: 81290900 Qty: 6$1.65

11837198001
RH REAR DAM

Part#: 83719800 Qty: 1

12837199001
LH REAR DAM

Part#: 83719900 Qty: 1

13840570001
REAR FLAT UNDERTRAY SECTION
$863.10

Part#: 84057000 Qty: 1$863.10

14808747002
SCREW -No longer supplied- -Replaced by 81290900-
$2.90

Part#: 80874700 Qty: 2$2.90

14812909009
SCREW -M6 X 20 X 22-
$1.65

Part#: 81290900 Qty: 9$1.65

15838499001
RH SWITCH SURROUND -No longer supplied- -Replaced by 83584900-

Part#: 83849900 Qty: 1

15835849001
RH SWITCH SURROUND

Part#: 83584900 Qty: 1

15835850001
LH SWITCH SURROUND

Part#: 83585000 Qty: 1

16836387001
COMPL. SHIELD FOR FRONT PART OF FRONT RH WHEEL BAY -No longer supplied- -Replaced by 83296700-

Part#: 83638700 Qty: 1

16832967001
COMPL. SHIELD FOR FRONT PART OF FRONT RH WHEEL BAY

Part#: 83296700 Qty: 1

17832969001
SHIELD FOR REAR PART OF FRONT RH WHEEL BAY

Part#: 83296900 Qty: 1

18836388001
COMPL. SHIELD FOR FRONT PART OF FRONT LH WHEEL BAY -No longer supplied- -Replaced by 83296800-

Part#: 83638800 Qty: 1

18832968001
COMPL. SHIELD FOR FRONT PART OF FRONT LH WHEEL BAY
$445.75

Part#: 83296800 Qty: 1$445.75

19832970001
SHIELD FOR REAR PART OF FRONT LH WHEEL BAY

Part#: 83297000 Qty: 1

208087490030
SCREW
$1.65

Part#: 80874900 Qty: 30$1.65

218322220012
FASTENER BUTTON
$1.29

Part#: 83222200 Qty: 12$1.29

22835848001
AIR OUTLET DUCT -No longer supplied- -Replaced by 84093000-

Part#: 83584800 Qty: 1

22840930001
AIR OUTLET DUCT

Part#: 84093000 Qty: 1

23840554001
SHIELD FOR FRONT PART OF REAR RH WHEEL BAY -Not for Geneva version-
$298.82

Part#: 84055400 Qty: 1$298.82

23863918001
SHIELD FOR FRONT PART OF REAR RH WHEEL BAY -Applicable for Geneva version-

Part#: 86391800 Qty: 1

24840552001
SHIELD FOR REAR PART OF REAR RH WHEEL BAY
$565.49

Part#: 84055200 Qty: 1$565.49

25840557001
SHIELD FOR FRONT PART OF REAR LH WHEEL BAY -Not for Geneva version-
$298.82

Part#: 84055700 Qty: 1$298.82

25863923001
SHIELD FOR FRONT PART OF REAR LH WHEEL BAY -Applicable for Geneva version-

Part#: 86392300 Qty: 1

26840556001
SHIELD FOR REAR PART OF REAR LH WHEEL BAY

Part#: 84055600 Qty: 1

27835653001
RH BRAKE AIR DUCT

Part#: 83565300 Qty: 1

28835654001
LH BRAKE AIR DUCT

Part#: 83565400 Qty: 1

29842436001
FRONT RH FENDER AIR OUTLET DUCT -No longer supplied- -Replaced by 86015000-

Part#: 84243600 Qty: 1

29860150001
FRONT RH FENDER AIR OUTLET DUCT

Part#: 86015000 Qty: 1

29842437001
FRONT LH FENDER AIR OUTLET DUCT -No longer supplied- -Replaced by 86015100-

Part#: 84243700 Qty: 1

29860151001
FRONT LH FENDER AIR OUTLET DUCT

Part#: 86015100 Qty: 1

30840588001
INSULATION FOR WHEELHOUSE

Part#: 84058800 Qty: 1

31840591001
INSULATION FOR FUEL FILLER NECK

Part#: 84059100 Qty: 1

32842473004
MALE CLIP
$2.90

Part#: 84247300 Qty: 4$2.90

33842474004
FEMALE CLIP
$2.90

Part#: 84247400 Qty: 4$2.90

34808743007
CLIP
$1.49

Part#: 80874300 Qty: 7$1.49

352564904
SCREW
$2.50

Part#: 256490 Qty: 4$2.50

36844864001
LH MOUNT BRACKET -Applicable up to Ass. No. 107347-

Part#: 84486400 Qty: 1

36849206001
LH MOUNT BRACKET -Applicable from Ass. No. 107348-

Part#: 84920600 Qty: 1

36841518001
RH MOUNT BRACKET -Applicable up to Ass. No. 107347-

Part#: 84151800 Qty: 1

36849205001
RH MOUNT BRACKET -Applicable from Ass. No. 107348-

Part#: 84920500 Qty: 1

37669277002
BRACKET

Part#: 66927700 Qty: 2

38834429006
SCREW
$2.25

Part#: 83442900 Qty: 6$2.25

39834429006
SCREW
$2.25

Part#: 83442900 Qty: 6$2.25

40842473006
MALE CLIP
$2.90

Part#: 84247300 Qty: 6$2.90

41842474006
FEMALE CLIP
$2.90

Part#: 84247400 Qty: 6$2.90

42126437781
WASHER
$0.30

Part#: 12643778 Qty: 1$0.30
