Ferrari Philadelphia Parts

Table 20

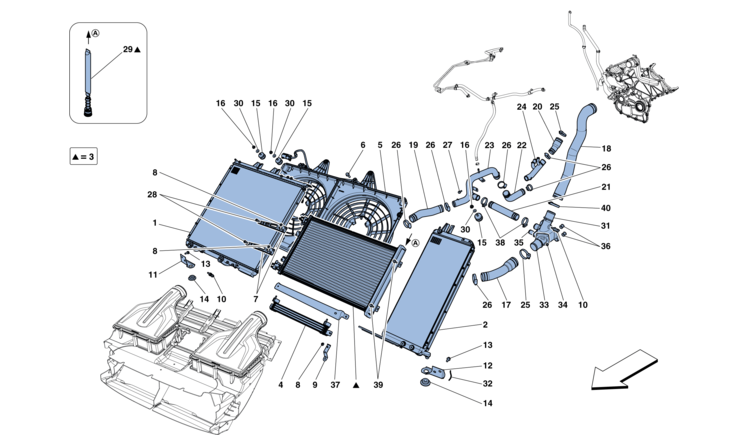

Table 20 - COOLING - RADIATORS AND AIR DUCTS

Ref.Part#Qty.DescriptionPrice
12634271
ENGINE WATER RADIATOR -No longer supplied- -Replaced by 277226-

Part#: 263427 Qty: 1

12772261
ENGINE WATER RADIATOR -Applicable until depletion-

Part#: 277226 Qty: 1

12634271
ENGINE WATER RADIATOR -Applicable after depletion of 277226-

Part#: 263427 Qty: 1

22634281
ENGINE OIL RADIATOR -Applicable until depletion-

Part#: 263428 Qty: 1

22772271
ENGINE OIL RADIATOR -Applicable after depletion of 263428-
$2984.04

Part#: 277227 Qty: 1$2984.04

32654891
AC FILTER CONDENSER

Part#: 265489 Qty: 1

42392021
POWER STEERING FLUID RADIATOR

Part#: 239202 Qty: 1

52672111
COWL WITH ELECTRIC FANS

Part#: 267211 Qty: 1

61628522711
SCREW -M5 X 20-

Part#: 16285227 Qty: 11

72686562
CONDENSER MOUNTING BRACKET

Part#: 268656 Qty: 2

8130460126
NUT

Part#: 13046012 Qty: 6

92680992
POWER STEERING FLUID RADIATOR MOUNTING BRACKET

Part#: 268099 Qty: 2

101801372
TEMPERATURE SENSOR
$38.94

Part#: 180137 Qty: 2$38.94

112600331
LOWER RH BRACKET

Part#: 260033 Qty: 1

122600341
LOWER LH BRACKET

Part#: 260034 Qty: 1

13162871274
SCREW -M8 X 20-

Part#: 16287127 Qty: 4

141389262
RUBBER PAD FOR PIN
$5.91

Part#: 138926 Qty: 2$5.91

152714723
PLUG

Part#: 271472 Qty: 3

16140407113
NUT
$0.39

Part#: 14040711 Qty: 3$0.39

172600801
WATER HOSE FROM VALVE TO RADIATOR
$283.09

Part#: 260080 Qty: 1$283.09

182716891
WATER HOSE FROM ENGINE TO VALVE
$711.35

Part#: 271689 Qty: 1$711.35

192586301
RETURN HOSE FROM RADIATOR
$56.63

Part#: 258630 Qty: 1$56.63

202590671
RETURN HOSE TO PUMP

Part#: 259067 Qty: 1

212704521
WATER HOSE FROM VALVE

Part#: 270452 Qty: 1

222590701
CENTRAL RETURN HOSE
$39.83

Part#: 259070 Qty: 1$39.83

232762361
METAL WATER RECIRCULATION CONNECTOR PIPE

Part#: 276236 Qty: 1

242590691
BRANCHED METAL PIPE TO PUMP

Part#: 259069 Qty: 1

25130007902
SCREW COLLAR -No longer supplied- -Replaced by 296783-
$1.75

Part#: 13000790 Qty: 2$1.75

252967832
SCREW COLLAR
$17.34

Part#: 296783 Qty: 2$17.34

26130006906
SCREW COLLAR -No longer supplied- -Replaced by 296782-
$2.50

Part#: 13000690 Qty: 6$2.50

262967826
SCREW COLLAR
$16.26

Part#: 296782 Qty: 6$16.26

27162860241
SCREW -M6 X 16-
$0.36

Part#: 16286024 Qty: 1$0.36

28162849272
SCREW -M5 X 10-

Part#: 16284927 Qty: 2

292808801
DESICCATING FILTER

Part#: 280880 Qty: 1

30126470243
WASHER
$0.77

Part#: 12647024 Qty: 3$0.77

312678491
THERMOSTAT COMPARTMENT

Part#: 267849 Qty: 1

32676812001
GASKET

Part#: 67681200 Qty: 1

332629131
THERMOSTAT/PRESSURE SWITCH
$385.99

Part#: 262913 Qty: 1$385.99

342316174
SCREW -M6 X 18-
$0.65

Part#: 231617 Qty: 4$0.65

352284381
CONNECTOR

Part#: 228438 Qty: 1

362673004
MOUNTING

Part#: 267300 Qty: 4

372894451
POWER STEERING RADIATOR SHIELD

Part#: 289445 Qty: 1

381682202
SCREW COLLAR -No longer supplied- -Replaced by 296780-
$1.70

Part#: 168220 Qty: 2$1.70

382967802
SCREW COLLAR
$15.17

Part#: 296780 Qty: 2$15.17

39162851274
SCREW -M5 X 16- -No longer supplied- -Replaced by 85692300-
$1.45

Part#: 16285127 Qty: 4$1.45

39856923004
SCREW -M5 X 20-
$1.75

Part#: 85692300 Qty: 4$1.75

402729131
COLLAR
$3.53

Part#: 272913 Qty: 1$3.53
