Table 5

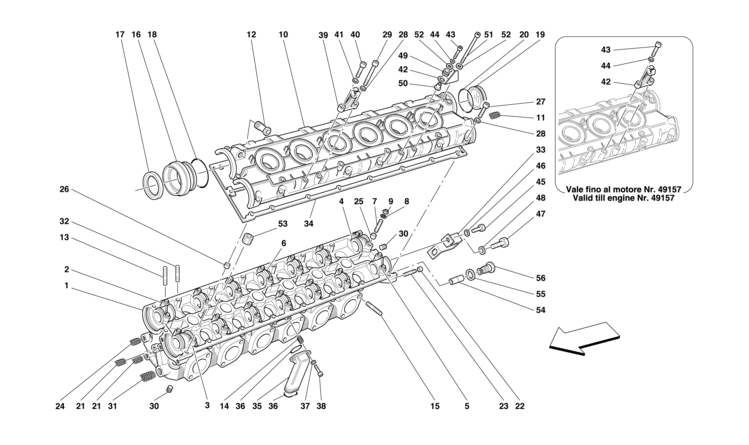

Table 5 - L.H. CYLINDER HEAD

Ref.Part#Qty.DescriptionPrice
1735321
COMPLETE L.H. CYLINDERS HEAD -Valid for bronze valve guide- -Not as spare part now- -Replaced after stock exhaustion by 192178-

Part#: 173532 Qty: 1

1921781
COMPLETE L.H. CYLINDERS HEAD -Valid for sintered steel valve guide-

Part#: 192178 Qty: 1

11837841
L.H. HEAD -With complete cylinder head-

Part#: 183784 Qty: 1

21542031
RIGHT FRONT CAP -With complete cylinder head-

Part#: 154203 Qty: 1

31542051
LEFT FRONT CAP -With complete cylinder head-

Part#: 154205 Qty: 1

41542061
RIGHT REAR CAP -With complete cylinder head-

Part#: 154206 Qty: 1

51542041
LEFT REAR CAP -With complete cylinder head-

Part#: 154204 Qty: 1

615420710
INTERMEDIATE CAP -With complete cylinder head-

Part#: 154207 Qty: 10

71354142428
STUD
$0.47

Part#: 13541424 Qty: 28$0.47

81119777428
WASHER
$0.49

Part#: 11197774 Qty: 28$0.49

91589621428
NUT
$0.75

Part#: 15896214 Qty: 28$0.75

101717201
L.H. CYLINDERS HEAD COVER -With complete cylinder head-

Part#: 171720 Qty: 1

11135255701
THREADED INSERT

Part#: 13525570 Qty: 1

121545251
THREADED UNION
$41.53

Part#: 154525 Qty: 1$41.53

131354112412
STUD
$23.57

Part#: 13541124 Qty: 12$23.57

14135251702
THREADED INSERT

Part#: 13525170 Qty: 2

151351682412
STUD
$1.25

Part#: 13516824 Qty: 12$1.25

161480221
FRONT COVER
$58.93

Part#: 148022 Qty: 1$58.93

171639871
GASKET
$47.65

Part#: 163987 Qty: 1$47.65

181172751
O.R. GASKET
$8.65

Part#: 117275 Qty: 1$8.65

191480232
REAR SMALL COVER
$51.31

Part#: 148023 Qty: 2$51.31

201172752
O.R. GASKET
$8.65

Part#: 117275 Qty: 2$8.65

21135257702
THREADED INSERT
$3.67

Part#: 13525770 Qty: 2$3.67

221027252
DOWEL
$2.25

Part#: 102725 Qty: 2$2.25

23135413242
STUD
$2.50

Part#: 13541324 Qty: 2$2.50

24135258701
THREADED INSERT

Part#: 13525870 Qty: 1

2510272528
CENTERING DOWEL
$2.25

Part#: 102725 Qty: 28$2.25

261027252
CENTERING DOWEL
$2.25

Part#: 102725 Qty: 2$2.25

2715683416
SCREW
$4.00

Part#: 156834 Qty: 16$4.00

281260127418
WASHER
$1.00

Part#: 12601274 Qty: 18$1.00

291568351
SCREW

Part#: 156835 Qty: 1

30143261502
PLUG
$1.25

Part#: 14326150 Qty: 2$1.25

31135246701
THREADED INSERT

Part#: 13524670 Qty: 1

321150022412
STUD

Part#: 11500224 Qty: 12

331579101
BRACKET
$59.98

Part#: 157910 Qty: 1$59.98

341407531
COVER GASKET
$70.56

Part#: 140753 Qty: 1$70.56

351546471
OIL EXHAUST DUCTING

Part#: 154647 Qty: 1

361425992
O.R. GASKET
$1.50

Part#: 142599 Qty: 2$1.50

37126011742
WASHER
$0.26

Part#: 12601174 Qty: 2$0.26

38143042242
SCREW

Part#: 14304224 Qty: 2

391516871
SUPPORT FOR ACCELERATOR CABLE

Part#: 151687 Qty: 1

40143052242
SCREW
$0.60

Part#: 14305224 Qty: 2$0.60

41126042742
WASHER
$0.30

Part#: 12604274 Qty: 2$0.30

421631531
REAR SUPPORT FOR ACCELERATOR CABLE -Valid till engine Nr. 49157-

Part#: 163153 Qty: 1

421773961
REAR BRACKET FOR ACCELERATOR CABLE -Valid from engine Nr. 49158-

Part#: 177396 Qty: 1

43143042241
SCREW -Valid till engine Nr. 49157-

Part#: 14304224 Qty: 1

43143043241
SCREW -Valid from engine Nr. 49158-
$1.15

Part#: 14304324 Qty: 1$1.15

44126041741
WASHER

Part#: 12604174 Qty: 1

45109020241
SCREW
$0.90

Part#: 10902024 Qty: 1$0.90

461274941
WASHER
$0.65

Part#: 127494 Qty: 1$0.65

47160431241
SCREW

Part#: 16043124 Qty: 1

481274961
WASHER
$0.50

Part#: 127496 Qty: 1$0.50

491775762
CABLE GROMMET -Valid from engine Nr. 49158-
$1.92

Part#: 177576 Qty: 2$1.92

501497072
SPACER -Valid from engine Nr. 49158-
$1.97

Part#: 149707 Qty: 2$1.97

511775791
SCREW -Valid from engine Nr. 49158-
$1.85

Part#: 177579 Qty: 1$1.85

52126437242
WASHER -Valid from engine Nr. 49158-
$0.29

Part#: 12643724 Qty: 2$0.29

531276354
THREADED PLUG
$3.43

Part#: 127635 Qty: 4$3.43

541568621
NONRETURN VALVE
$23.52

Part#: 156862 Qty: 1$23.52

55102984601
GASKET
$1.00

Part#: 10298460 Qty: 1$1.00

561637141
PLUG

Part#: 163714 Qty: 1
