Table 11

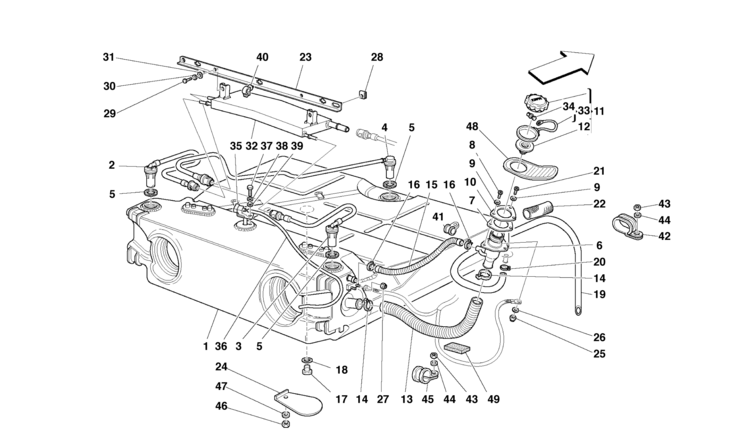

Table 11 - FUEL TANK - UNION AND PIPING -Not for USA and CDN

Ref.Part#Qty.DescriptionPrice
11854421
FUEL TANK

Part#: 185442 Qty: 1

21819351
L.H. VALVE COMPLETED WITH PIPING

Part#: 181935 Qty: 1

31819361
R.H. VALVE COMPLETED WITH PIPING

Part#: 181936 Qty: 1

41964881
VALVE COMPLETED WITH PIPING -Valid till stock exhaustion-
$229.62

Part#: 196488 Qty: 1$229.62

41964881
VALVE COMPLETED WITH PIPING
$229.62

Part#: 196488 Qty: 1$229.62

51950493
GASKET -Valid till stock exhaustion-
$5.90

Part#: 195049 Qty: 3$5.90

51950493
GASKET
$5.90

Part#: 195049 Qty: 3$5.90

61712781
FILLER

Part#: 171278 Qty: 1

71740951
GASKET

Part#: 174095 Qty: 1

8629267002
SCREW

Part#: 62926700 Qty: 2

9126012743
WASHER
$1.00

Part#: 12601274 Qty: 3$1.00

101740931
FLANGE

Part#: 174093 Qty: 1

111857801
PLUG

Part#: 185780 Qty: 1

121801191
GASKET
$94.56

Part#: 180119 Qty: 1$94.56

131671311
FILLER-TANK CONNECTING PIPE

Part#: 167131 Qty: 1

141701272
SCREW COLLAR

Part#: 170127 Qty: 2

151651321
VENT PIPE FROM TANK TO FILLER
$47.50

Part#: 165132 Qty: 1$47.50

161640152
SCREW COLLAR

Part#: 164015 Qty: 2

171480451
THREADED PLUG
$25.50

Part#: 148045 Qty: 1$25.50

181236221
O.R. GASKET
$1.90

Part#: 123622 Qty: 1$1.90

191798511
RUBBER HOSE

Part#: 179851 Qty: 1

201614901
SCREW COLLAR
$2.25

Part#: 161490 Qty: 1$2.25

21147784181
SCREW
$1.25

Part#: 14778418 Qty: 1$1.25

221711631
PROTECTION SHEATH

Part#: 171163 Qty: 1

231877251
BRACKET -Valid till stock exhaustion-

Part#: 187725 Qty: 1

231960781
BRACKET

Part#: 196078 Qty: 1

24668494001
FUEL EXHAUST SEAL DOOR

Part#: 66849400 Qty: 1

251027411
NUT
$0.75

Part#: 102741 Qty: 1$0.75

26126482771
WASHER

Part#: 12648277 Qty: 1

271029481
NUT
$2.29

Part#: 102948 Qty: 1$2.29

28627663002
CLIP
$0.70

Part#: 62766300 Qty: 2$0.70

29109021242
SCREW
$0.65

Part#: 10902124 Qty: 2$0.65

30126397242
WASHER
$0.50

Part#: 12639724 Qty: 2$0.50

311274942
WASHER
$0.65

Part#: 127494 Qty: 2$0.65

321854411
DISAREATOR

Part#: 185441 Qty: 1

331868661
COMPLETE RING
$27.45

Part#: 186866 Qty: 1$27.45

341861721
RETAINER
$0.39

Part#: 186172 Qty: 1$0.39

351791371
FUEL PRESSURE SENSOR
$522.68

Part#: 179137 Qty: 1$522.68

361151481
RUBBER HOSE

Part#: 115148 Qty: 1

37109777141
SCREW

Part#: 10977714 Qty: 1

38126011741
WASHER
$0.26

Part#: 12601174 Qty: 1$0.26

39126378241
WASHER
$0.50

Part#: 12637824 Qty: 1$0.50

401784303
FIXING CLIP
$1.00

Part#: 178430 Qty: 3$1.00

41104419901
BRACKET WITH SHEATH
$1.20

Part#: 10441990 Qty: 1$1.20

42617125001
BRACKET WITH SHEATH
$2.50

Part#: 61712500 Qty: 1$2.50

431029482
NUT
$2.29

Part#: 102948 Qty: 2$2.29

44144993242
WASHER

Part#: 14499324 Qty: 2

451729951
BRACKET WITH SHEATH

Part#: 172995 Qty: 1

46140584111
NUT

Part#: 14058411 Qty: 1

47105194241
WASHER
$0.39

Part#: 10519424 Qty: 1$0.39

48671945001
RUBBER PROTECTION

Part#: 67194500 Qty: 1

491777491
RUBBER THICKNESS FOR PIPE

Part#: 177749 Qty: 1
