Ferrari Philadelphia Parts

Table 138

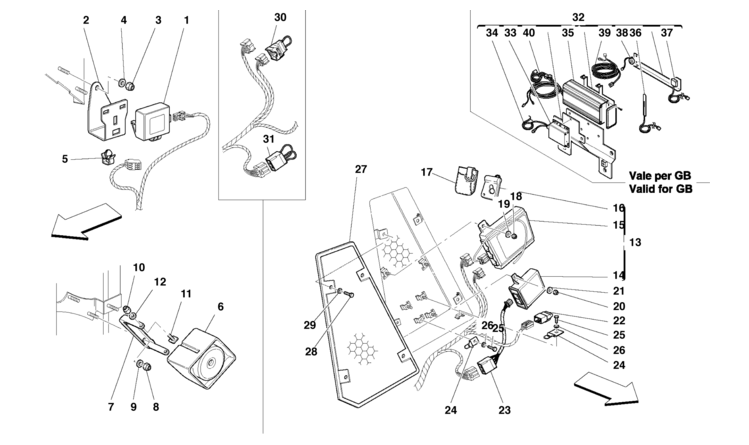

Table 138 - ANTI-THEFT ELECTRICAL BOARDS AND DEVICES

Ref.Part#Qty.DescriptionPrice
12033271
ANTI-LIFT SENSOR -Not as spare part- -Replaced by 203327-
$368.55

Part#: 203327 Qty: 1$368.55

12033271
ANTI-LIFT SENSOR
$368.55

Part#: 203327 Qty: 1$368.55

21833491
SENSOR FIXING BRACKET -Not for GD-

Part#: 183349 Qty: 1

21948951
SENSOR FIXING BRACKET -Valid for GD-

Part#: 194895 Qty: 1

31027412
NUT
$0.75

Part#: 102741 Qty: 2$0.75

4126444242
WASHER
$0.50

Part#: 12644424 Qty: 2$0.50

5145694802
CABLES RETAINING CLIP
$0.95

Part#: 14569480 Qty: 2$0.95

61771481
SIREN
$1517.04

Part#: 177148 Qty: 1$1517.04

71793021
SIREN FIXING BRACKET
$44.82

Part#: 179302 Qty: 1$44.82

81029482
NUT
$2.29

Part#: 102948 Qty: 2$2.29

92160961
ADR UNIT CONTROL STATION -Valid for GB-

Part#: 216096 Qty: 1

101029482
NUT
$2.29

Part#: 102948 Qty: 2$2.29

111798102
SCREW
$3.75

Part#: 179810 Qty: 2$3.75

12126466012
WASHER

Part#: 12646601 Qty: 2

131821311
COMPLETE ANTI-THEFT ELECTRICAL BOARDS KIT -Not for D, CH, B, NL, GB, IRL, USA, CDN, AUS- -For countries ... , see note ''1''-

Part#: 182131 Qty: 1

131821321
COMPLETE ANTI-THEFT ELECTRICAL BOARDS KIT -Valid for D-

Part#: 182132 Qty: 1

131821331
COMPLETE ANTI-THEFT ELECTRICAL BOARDS KIT -Valid for CH-

Part#: 182133 Qty: 1

131821341
COMPLETE ANTI-THEFT ELECTRICAL BOARDS KIT -Valid for B-

Part#: 182134 Qty: 1

131821351
COMPLETE ANTI-THEFT ELECTRICAL BOARDS KIT -Valid for NL-

Part#: 182135 Qty: 1

131821361
COMPLETE ANTI-THEFT ELECTRICAL BOARDS KIT -Valid for GB and IRL-

Part#: 182136 Qty: 1

131821371
COMPLETE ANTI-THEFT ELECTRICAL BOARDS KIT -Valid for USA, CDN, AUS and for countries ... , see note ''2''-

Part#: 182137 Qty: 1

131718511
REMOTE KIT -For countries ... , see note ''1''-

Part#: 171851 Qty: 1

131718521
REMOTE KIT -For countries ... , see note ''2''-

Part#: 171852 Qty: 1

141685091
INTERFACE ELECTRONIC CONTROL STATION -Not as a spare part- -With the complete anti-theft ECU-

Part#: 168509 Qty: 1

151685081
ANTI-THEFT ELECTRICAL BOARDS (Freq. 433 MHz)-Not as a spare part- -With the complete anti-theft ECU-

Part#: 168508 Qty: 1

151760041
ANTI-THEFT ELECTRICAL BOARDS (Freq. 315 MHz)-Not as a spare part- -With the complete anti-theft ECU-

Part#: 176004 Qty: 1

161655841
''MASTER'' REMOTE CONTROL (RED) -Not as spare part- -With the remote control Kit 171851 or the complete anti-theft ECU Kit-

Part#: 165584 Qty: 1

161650161
''SLAVE'' REMOTE CONTROL (BLACK) -Not as spare part- -With the remote control Kit 171851 or the complete anti-theft ECU Kit-

Part#: 165016 Qty: 1

161680161
''MASTER'' REMOTE CONTROL (RED) -Not as spare part- -With the remote control Kit 171852 or the complete anti-theft ECU Kit-

Part#: 168016 Qty: 1

161670691
''SLAVE'' REMOTE CONTROL (BLACK) -Not as spare part- -With the remote control Kit 171852 or the complete anti-theft ECU Kit-

Part#: 167069 Qty: 1

17652597..1
REMOTE CASE -Leather-

Part#: 652597.. Qty: 1

181691803
NUT
$0.25

Part#: 169180 Qty: 3$0.25

19126378243
WASHER
$0.50

Part#: 12637824 Qty: 3$0.50

201691802
NUT
$0.25

Part#: 169180 Qty: 2$0.25

21126378242
WASHER
$0.50

Part#: 12637824 Qty: 2$0.50

221376711
CONNECTOR

Part#: 137671 Qty: 1

231664201
CABLE -Not as spare part- -Replaced by 200851-

Part#: 166420 Qty: 1

232008511
CABLE
$93.44

Part#: 200851 Qty: 1$93.44

241709252
BRACKET FOR CONNECTOR FIXING

Part#: 170925 Qty: 2

25109776242
SCREW

Part#: 10977624 Qty: 2

26126011742
WASHER
$0.26

Part#: 12601174 Qty: 2$0.26

271845711
R.H. COVER

Part#: 184571 Qty: 1

28109776244
SCREW

Part#: 10977624 Qty: 4

29126011744
WASHER
$0.26

Part#: 12601174 Qty: 4$0.26

301726731
CONNECTION CABLES -With out anti theft- -Valid for BRUNEI-

Part#: 172673 Qty: 1

311652691
CONNECTION CABLES -With out anti theft- -Valid for BRUNEI-

Part#: 165269 Qty: 1

322161121
SATELLITE ANTI-THEFT KIT -Valid for GB-

Part#: 216112 Qty: 1

332160961
ADR UNIT CONTROL STATION -Valid for GB-

Part#: 216096 Qty: 1

342161031
ANTENNA CABLE -Valid for GB-

Part#: 216103 Qty: 1

352160951
AEM400DLU CONTROL STATION -Valid for GB-

Part#: 216095 Qty: 1

362160991
GSM ANTENNA -Valid for GB-

Part#: 216099 Qty: 1

372160981
GPS ANTENNA -Valid for GB-

Part#: 216098 Qty: 1

382161011
BUZZER -Valid for GB-

Part#: 216101 Qty: 1

392161021
CABLES FOR BUZZER -Valid for GB-

Part#: 216102 Qty: 1

402161041
FEED CABLES -Valid for GB-

Part#: 216104 Qty: 1
