Ferrari Philadelphia Parts

Table 20

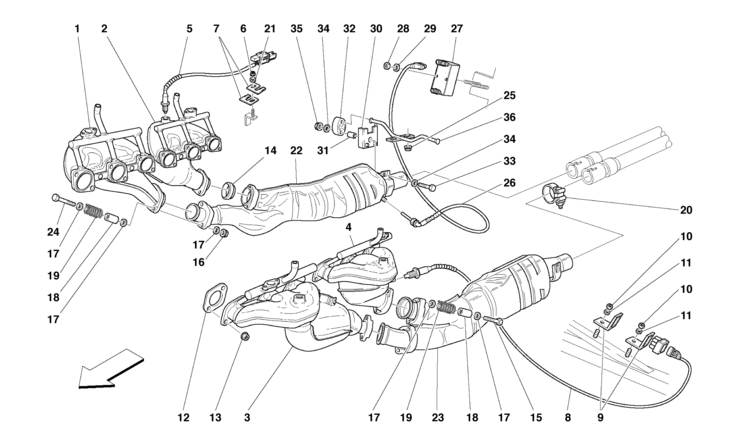

Table 20 - FRONT EXHAUST SYSTEM

Ref.Part#Qty.DescriptionPrice
11897581
R.H. FRONT EXHAUST MANIFOLD

Part#: 189758 Qty: 1

21897601
R.H. REAR EXHAUST MANIFOLD -Not for GD-

Part#: 189760 Qty: 1

21902941
R.H. REAR EXHAUST MANIFOLD -Valid for GD-

Part#: 190294 Qty: 1

31897591
L.H. FRONT EXHAUST MANIFOLD

Part#: 189759 Qty: 1

41897611
L.H. REAR EXHAUST MANIFOLD

Part#: 189761 Qty: 1

51828372
FRONT LAMBDA FEELER -For front side head-
$369.73

Part#: 182837 Qty: 2$369.73

51875872
FRONT LAMBDA FEELER -For rear side head-
$369.86

Part#: 187587 Qty: 2$369.86

6627903002
NUT
$0.24

Part#: 62790300 Qty: 2$0.24

71758564
CONNECTOR FIXING BRACKET

Part#: 175856 Qty: 4

81809152
REAR LAMBDA FEELER -For front side head-
$213.53

Part#: 180915 Qty: 2$213.53

81875862
REAR LAMBDA FEELER -For rear side head-
$206.74

Part#: 187586 Qty: 2$206.74

91854084
CONNECTOR FIXING BRACKET

Part#: 185408 Qty: 4

101027414
NUT
$0.75

Part#: 102741 Qty: 4$0.75

11144993244
WASHER

Part#: 14499324 Qty: 4

1214340812
GASKET
$20.35

Part#: 143408 Qty: 12$20.35

1313839224
NUT
$1.95

Part#: 138392 Qty: 24$1.95

141549814
GASKET
$30.94

Part#: 154981 Qty: 4$30.94

15160450242
SCREW
$2.53

Part#: 16045024 Qty: 2$2.53

161147488
NUT
$12.08

Part#: 114748 Qty: 8$12.08

1711276124
WASHER

Part#: 112761 Qty: 24

181147498
SPACER
$3.63

Part#: 114749 Qty: 8$3.63

191117438
SPRING
$41.43

Part#: 111743 Qty: 8$41.43

201705412
CLAMP
$23.36

Part#: 170541 Qty: 2$23.36

21126428772
WASHER

Part#: 12642877 Qty: 2

221856471
R.H. CATALYST

Part#: 185647 Qty: 1

231856481
L.H. CATALYST

Part#: 185648 Qty: 1

24160451246
SCREW
$2.50

Part#: 16045124 Qty: 6$2.50

25140585192
NUT
$1.49

Part#: 14058519 Qty: 2$1.49

261746742
THERMOCOUPLE
$280.25

Part#: 174674 Qty: 2$280.25

271792782
CONTROL STATION
$839.69

Part#: 179278 Qty: 2$839.69

28627903004
NUT
$0.24

Part#: 62790300 Qty: 4$0.24

29105192244
WASHER

Part#: 10519224 Qty: 4

301700231
R. H. PAD PROTECTION

Part#: 170023 Qty: 1

301700241
L. H. PAD PROTECTION

Part#: 170024 Qty: 1

311540162
SPACER

Part#: 154016 Qty: 2

321545642
PAD
$278.00

Part#: 154564 Qty: 2$278.00

33162875242
SCREW

Part#: 16287524 Qty: 2

34126420784
WASHER
$0.89

Part#: 12642078 Qty: 4$0.89

35140585192
NUT
$1.49

Part#: 14058519 Qty: 2$1.49

361681491
CENTRAL SHIELD SUPPORTING CATALYSTS

Part#: 168149 Qty: 1
