Ferrari Philadelphia Parts

Table 116

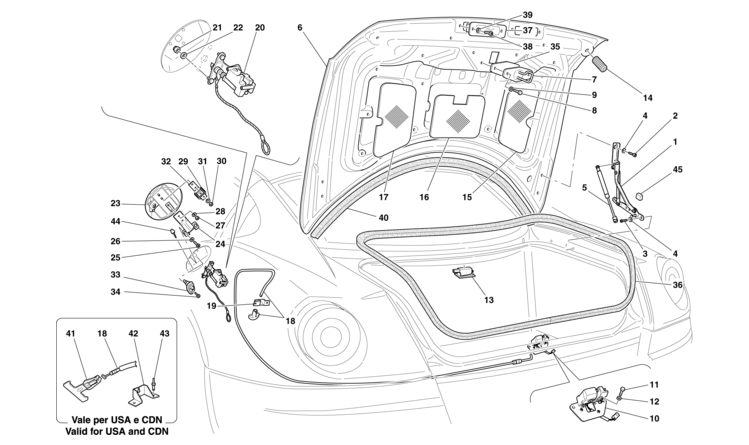

Table 116 - LUGGAGE COMPARTMENT LID AND FUEL FILLER FLAP

Ref.Part#Qty.DescriptionPrice
1676251001
COMPLETE RH HINGE

Part#: 67625100 Qty: 1

1676252001
COMPLETE LH HINGE

Part#: 67625200 Qty: 1

2162861244
SCREW

Part#: 16286124 Qty: 4

3670794006
SCREW

Part#: 67079400 Qty: 6

46804000010
WASHER

Part#: 68040000 Qty: 10

5685787002
GAS STRUT
$39.70

Part#: 68578700 Qty: 2$39.70

6680575111
LUGGAGE COMPARTMENT LID

Part#: 68057511 Qty: 1

7692427001
STRIKER PLATE

Part#: 69242700 Qty: 1

8161323142
SCREW

Part#: 16132314 Qty: 2

9105234242
WASHER

Part#: 10523424 Qty: 2

10693679001
LUGGAGE COMPARTMENT LID LOCK
$179.52

Part#: 69367900 Qty: 1$179.52

11109025242
SCREW

Part#: 10902524 Qty: 2

12105234242
WASHER

Part#: 10523424 Qty: 2

131882501
LIGHT UNIT
$7.75

Part#: 188250 Qty: 1$7.75

14682041002
VIBRATION DAMPER
$21.87

Part#: 68204100 Qty: 2$21.87

15685696001
RH LUGGAGE COMPARTMENT LID INSULATION -Applicable until depletion-

Part#: 68569600 Qty: 1

15802134001
RH LUGGAGE COMPARTMENT LID INSULATION -Applicable after depletion of 68569600-

Part#: 80213400 Qty: 1

16685698001
CENTRAL LUGGAGE COMPARTMENT LID INSULATION -Applicable until depletion-

Part#: 68569800 Qty: 1

16802135001
CENTRAL LUGGAGE COMPARTMENT LID INSULATION -Applicable after depletion of 68569800-

Part#: 80213500 Qty: 1

17685697001
LH LUGGAGE COMPARTMENT LID INSULATION -Applicable until depletion-

Part#: 68569700 Qty: 1

17802136001
LH LUGGAGE COMPARTMENT LID INSULATION -Applicable after depletion of 68569700-

Part#: 80213600 Qty: 1

18697146001
LID SAFETY CABLE -Not for USA, CDN-

Part#: 69714600 Qty: 1

18690189001
LID SAFETY CABLE -Applicable for USA, CDN-
$257.21

Part#: 69018900 Qty: 1$257.21

19697147001
BRACKET

Part#: 69714700 Qty: 1

20674895001
ACTUATOR COMPLETE WITH BRACKET

Part#: 67489500 Qty: 1

21140540112
NUT

Part#: 14054011 Qty: 2

22126378242
WASHER
$0.50

Part#: 12637824 Qty: 2$0.50

23671319111
FUEL FILLER FLAP COVER

Part#: 67131911 Qty: 1

23848357001
FUEL FILLER FLAP COVER -HGTE 60 F1 version-

Part#: 84835700 Qty: 1

24679349001
FUEL FILLER FLAP HINGE

Part#: 67934900 Qty: 1

25132740142
SCREW

Part#: 13274014 Qty: 2

26126011742
WASHER
$0.26

Part#: 12601174 Qty: 2$0.26

27140841112
NUT

Part#: 14084111 Qty: 2

28126381772
WASHER -No longer supplied- -Replaced by 12638178-

Part#: 12638177 Qty: 2

28126381782
WASHER
$1.00

Part#: 12638178 Qty: 2$1.00

29660573001
FUEL FILLER FLAP ROD

Part#: 66057300 Qty: 1

30140841112
NUT

Part#: 14084111 Qty: 2

31126381772
WASHER -No longer supplied- -Replaced by 12638178-

Part#: 12638177 Qty: 2

31126381782
WASHER
$1.00

Part#: 12638178 Qty: 2$1.00

32661936002
SHIM

Part#: 66193600 Qty: 2

331530691
SWITCH
$8.25

Part#: 153069 Qty: 1$8.25

34159169771
SCREW
$1.08

Part#: 15916977 Qty: 1$1.08

35692426005
SHIM

Part#: 69242600 Qty: 5

36685795001
LID SEAL

Part#: 68579500 Qty: 1

371861802
LICENSE PLATE LIGHT
$92.00

Part#: 186180 Qty: 2$92.00

38156873754
SCREW
$0.80

Part#: 15687375 Qty: 4$0.80

39144962774
WASHER
$0.84

Part#: 14496277 Qty: 4$0.84

40698561001
GASKET

Part#: 69856100 Qty: 1

41664039001
CHILDREN SAFETY HANDLE -Applicable for USA, CDN-

Part#: 66403900 Qty: 1

42693640001
SAFETY CABLE BRACKET -Applicable for USA, CDN- -No longer supplied- -Replaced by 69955800-

Part#: 69364000 Qty: 1

42699558001
SAFETY CABLE BRACKET -Applicable for USA, CDN-
$44.29

Part#: 69955800 Qty: 1$44.29

43643859002
RIVET -Applicable for USA, CDN-
$0.60

Part#: 64385900 Qty: 2$0.60

44638799002
RUBBER VIBRATION DAMPER
$16.90

Part#: 63879900 Qty: 2$16.90

45676253002
RUBBER PAD

Part#: 67625300 Qty: 2
