Table 117

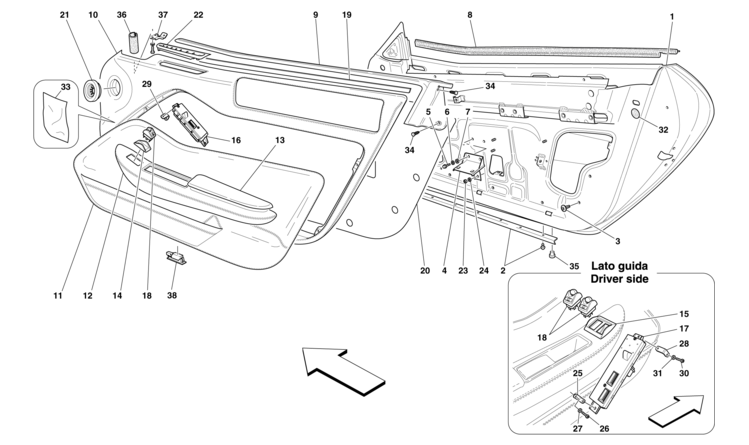

Table 117 - DOORS - SUBSTRUCTURE AND TRIM

Ref.Part#Qty.DescriptionPrice
1680584111
RH DOOR BODYWORK

Part#: 68058411 Qty: 1

1680585111
LH DOOR BODYWORK

Part#: 68058511 Qty: 1

2671310002
GASKET

Part#: 67131000 Qty: 2

3673028008
BUSHING
$0.98

Part#: 67302800 Qty: 8$0.98

4671082002
ARMREST FASTENER BRACKET

Part#: 67108200 Qty: 2

5162852244
SCREW -M5 X 20-

Part#: 16285224 Qty: 4

6126203744
WASHER

Part#: 12620374 Qty: 4

7135777244
WASHER

Part#: 13577724 Qty: 4

8671294001
RH EXTERNAL WINDOW SCRAPER

Part#: 67129400 Qty: 1

8671295001
LH EXTERNAL WINDOW SCRAPER

Part#: 67129500 Qty: 1

9685601001
RH INTERNAL WINDOW SCRAPER

Part#: 68560100 Qty: 1

9685602001
LH INTERNAL WINDOW SCRAPER

Part#: 68560200 Qty: 1

10687828..1
RH DOOR PANEL

Part#: 687828.. Qty: 1

10827086001
RH DOOR PANEL -Formula 1 technical fabric- -Applicable for HGTE 60 F1 version-

Part#: 82708600 Qty: 1

10687829..1
LH DOOR PANEL

Part#: 687829.. Qty: 1

10827105001
LH DOOR PANEL -Formula 1 technical fabric- -Applicable for HGTE 60 F1 version-

Part#: 82710500 Qty: 1

11687736..1
CENTRE RH PANEL -Version in leather-

Part#: 687736.. Qty: 1

11692592..1
CENTRE RH PANEL -Version in carbon with leather lined pocket-

Part#: 692592.. Qty: 1

11823417..1
CENTRE RH PANEL -Applicable for HGTE version-

Part#: 823417.. Qty: 1

11847426001
CENTRE RH PANEL -HGTE 60 F1 version-

Part#: 84742600 Qty: 1

11687737..1
LH CENTRE PANEL -Version in leather-

Part#: 687737.. Qty: 1

11692593..1
LH CENTRE PANEL -Version in carbon with leather lined pocket-

Part#: 692593.. Qty: 1

11823422..1
LH CENTRE PANEL -Applicable for HGTE version-

Part#: 823422.. Qty: 1

11847429001
LH CENTRE PANEL -HGTE 60 F1 version-

Part#: 84742900 Qty: 1

12685589..1
RH ARMREST -Not for GD- -Applicable up to Ass. No. 69157-

Part#: 685589.. Qty: 1

12802022..1
RH ARMREST -Not for GD- -Applicable from Ass. No. 69158-

Part#: 802022.. Qty: 1

12691321..1
RH ARMREST -Applicable for GD- -Applicable up to Ass. No. 69157-

Part#: 691321.. Qty: 1

12802028..1
RH ARMREST -Applicable for GD- -Applicable from Ass. No. 69158-

Part#: 802028.. Qty: 1

12823403001
RH ARMREST -HGTE and HGTE 60 F1 versions- -Not for GD-

Part#: 82340300 Qty: 1

12823426001
RH ARMREST -HGTE and HGTE 60 F1 versions- -Applicable for GD-

Part#: 82342600 Qty: 1

12685590..1
LH ARMREST -Not for GD- -Applicable up to Ass. No. 69157-

Part#: 685590.. Qty: 1

12802025..1
LH ARMREST -Not for GD- -Applicable from Ass. No. 69158-

Part#: 802025.. Qty: 1

12691322..1
LH ARMREST -Applicable for GD- -Applicable up to Ass. No. 69157-

Part#: 691322.. Qty: 1

12802030..1
LH ARMREST -Applicable for GD- -Applicable from Ass. No. 69158-

Part#: 802030.. Qty: 1

12823404001
LH ARMREST -HGTE and HGTE 60 F1 versions- -Not for GD-

Part#: 82340400 Qty: 1

12823430001
LH ARMREST -HGTE and HGTE 60 F1 versions- -Applicable for GD-

Part#: 82343000 Qty: 1

13685591..1
RH CUSHION -Applicable up to Ass. No. 69157-

Part#: 685591.. Qty: 1

13685592..1
LH CUSHION -Applicable up to Ass. No. 69157-

Part#: 685592.. Qty: 1

14685605001
RH SEAT BELT SLOT SURROUND
$29.54

Part#: 68560500 Qty: 1$29.54

15685606001
LH SEAT BELT SLOT SURROUND

Part#: 68560600 Qty: 1

162106671
PASSENGER SIDE NODE ECU -Applicable until depletion-

Part#: 210667 Qty: 1

162397261
PASSENGER SIDE NODE ECU -Applicable after depletion of 210667-

Part#: 239726 Qty: 1

172106661
DRIVER SIDE NODE ECU -Applicable until depletion-

Part#: 210666 Qty: 1

172397251
DRIVER SIDE NODE ECU -Applicable after depletion of 210666-

Part#: 239725 Qty: 1

182270323
POWER WINDOW BUTTON -No longer supplied- -Replaced by 239500-

Part#: 227032 Qty: 3

182395003
POWER WINDOW BUTTON -Applicable until depletion-

Part#: 239500 Qty: 3

182699973
POWER WINDOW BUTTON -Applicable after depletion of 239500-

Part#: 269997 Qty: 3

19685600001
RH WINDOW SCRAPER

Part#: 68560000 Qty: 1

19685599001
LH WINDOW SCRAPER

Part#: 68559900 Qty: 1

20671317001
RH WATERPROOF MEMBRANE

Part#: 67131700 Qty: 1

20671318001
LH WATERPROOF MEMBRANE

Part#: 67131800 Qty: 1

21699527002
AIR DUCT CONNECTOR -Applicable until depletion-

Part#: 69952700 Qty: 2

21670010002
AIR DUCT CONNECTOR -Applicable after depletion of 69952700- -Applicable until depletion-

Part#: 67001000 Qty: 2

21811524002
AIR DUCT CONNECTOR -Applicable after depletion of 67001000-
$141.41

Part#: 81152400 Qty: 2$141.41

22670006001
RH AIR VENT -Soft touch black version- -Applicable up to Ass. No. 73896- -No longer supplied- -Replaced by 802894..-

Part#: 67000600 Qty: 1

22697180..1
RH AIR VENT -Version in colour matching vehicle interior- -Replace as a pair- -No longer supplied- -Replaced by 802894..-

Part#: 697180.. Qty: 1

22802894..1
RH AIR VENT -Soft touch black version- -Applicable from Ass. No. 73897-

Part#: 802894.. Qty: 1

22670007001
LH AIR VENT -Soft touch black version- -Applicable up to Ass. No. 73896- -No longer supplied- -Replaced by 802895..-

Part#: 67000700 Qty: 1

22697181..1
LH AIR VENT -Version in colour matching vehicle interior- -Replace as a pair- -No longer supplied- -Replaced by 802895..-

Part#: 697181.. Qty: 1

22802895..1
LH AIR VENT -Soft touch black version- -Applicable from Ass. No. 73897-

Part#: 802895.. Qty: 1

23130461142
NUT

Part#: 13046114 Qty: 2

24126437242
WASHER
$0.29

Part#: 12643724 Qty: 2$0.29

252047902
INFERIOR BRACKET

Part#: 204790 Qty: 2

26132739112
SCREW

Part#: 13273911 Qty: 2

27126378242
WASHER
$0.50

Part#: 12637824 Qty: 2$0.50

282047921
UPPER BRACKET -Driver side-

Part#: 204792 Qty: 1

292047911
UPPER BRACKET -Passenger side- -Not for GD-

Part#: 204791 Qty: 1

292178721
UPPER BRACKET -Passenger side- -Applicable for GD-

Part#: 217872 Qty: 1

30132739112
SCREW

Part#: 13273911 Qty: 2

31126378242
WASHER
$0.50

Part#: 12637824 Qty: 2$0.50

32699667002
ADHESIVE CAP

Part#: 69966700 Qty: 2

33699683001
RH WATERPROOF MEMBRANE

Part#: 69968300 Qty: 1

33699684001
LH WATERPROOF MEMBRANE

Part#: 69968400 Qty: 1

341789492
CLIP
$0.98

Part#: 178949 Qty: 2$0.98

35687413002
CAP

Part#: 68741300 Qty: 2

361793092
ADHESIVE FOAM -100 X 50-
$14.37

Part#: 179309 Qty: 2$14.37

37685598002
BRACKET

Part#: 68559800 Qty: 2

381882502
LIGHT UNIT
$7.75

Part#: 188250 Qty: 2$7.75
