Ferrari Philadelphia Parts

Table 22

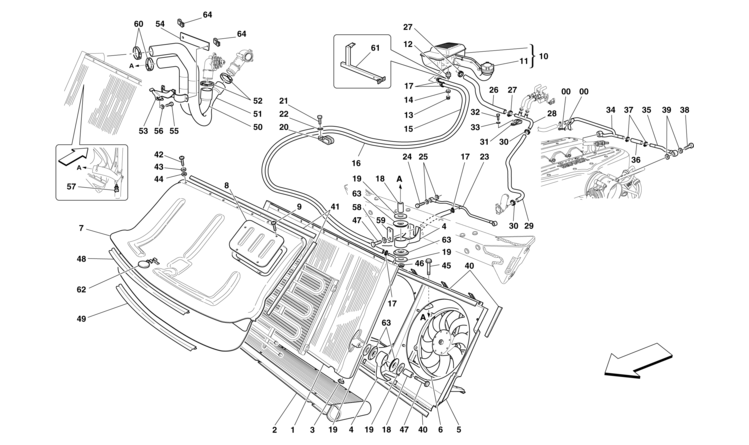

Table 22 - COOLING SYSTEM - RADIATOR AND HEADER TANK

Ref.Part#Qty.DescriptionPrice
12274541
WATER RADIATOR
$7779.59

Part#: 227454 Qty: 1$7779.59

22134991
ENGINE OIL RADIATOR
$3493.96

Part#: 213499 Qty: 1$3493.96

31389262
RUBBER PAD
$5.91

Part#: 138926 Qty: 2$5.91

42135593
BRACKET

Part#: 213559 Qty: 3

52203301
COWL FOR ELECTRIC FANS

Part#: 220330 Qty: 1

62127302
ELECTRIC FAN

Part#: 212730 Qty: 2

7678911001
WATER RADIATOR DUCT -Not for USA, CDN-
$850.13

Part#: 67891100 Qty: 1$850.13

7693709001
WATER RADIATOR DUCT -Applicable for USA, CDN-
$902.90

Part#: 69370900 Qty: 1$902.90

8690120001
LID

Part#: 69012000 Qty: 1

9653667004
SCREW
$1.74

Part#: 65366700 Qty: 4$1.74

102173641
HEADER TANK -No longer supplied- -Replaced by 235263-

Part#: 217364 Qty: 1

102352631
HEADER TANK

Part#: 235263 Qty: 1

111959991
HEADER TANK CAP
$64.58

Part#: 195999 Qty: 1$64.58

121029473
VIBRATION DAMPER
$20.91

Part#: 102947 Qty: 3$20.91

13158962141
NUT
$0.75

Part#: 15896214 Qty: 1$0.75

141274941
WASHER
$0.65

Part#: 127494 Qty: 1$0.65

152185931
PIPE FROM RADIATOR TO HEADER TANK -Applicable until depletion-

Part#: 218593 Qty: 1

152508021
PIPE FROM RADIATOR TO HEADER TANK -Applicable after depletion of 218593-

Part#: 250802 Qty: 1

162185921
PIPE FROM ENGINE TO HEADER TANK -Applicable until depletion-

Part#: 218592 Qty: 1

162508011
PIPE FROM ENGINE TO HEADER TANK -Applicable after depletion of 218592-

Part#: 250801 Qty: 1

171779954
CLAMP
$2.24

Part#: 177995 Qty: 4$2.24

182165823
BUSHING -Applicable up to Ass. No. 66620-

Part#: 216582 Qty: 3

182274313
BUSHING -Applicable from Ass. No. 66621-

Part#: 227431 Qty: 3

192165816
WASHER -Applicable up to Ass. No. 66620-

Part#: 216581 Qty: 6

192274306
WASHER -Applicable from Ass. No. 66621-

Part#: 227430 Qty: 6

20104422901
BRACKET WITH SHEATH

Part#: 10442290 Qty: 1

21162860241
SCREW
$0.36

Part#: 16286024 Qty: 1$0.36

22126204741
WASHER
$0.15

Part#: 12620474 Qty: 1$0.15

232208211
WATER DRAIN PIPE

Part#: 220821 Qty: 1

242118472
PIPE UNION

Part#: 211847 Qty: 2

25102601604
GASKET
$0.90

Part#: 10260160 Qty: 4$0.90

262181481
PIPE FROM UNION TO HEADER TANK

Part#: 218148 Qty: 1

271866802
CLAMP

Part#: 186680 Qty: 2

28679446001
FOUR-WAY UNION

Part#: 67944600 Qty: 1

292026121
PREFORMED PIPE -Applicable until depletion-

Part#: 202612 Qty: 1

292322191
PREFORMED PIPE -Applicable after depletion of 202612- -Applicable until depletion-

Part#: 232219 Qty: 1

292541031
PREFORMED PIPE -Applicable after depletion of 232219-

Part#: 254103 Qty: 1

30130004902
SCREW COLLAR
$1.90

Part#: 13000490 Qty: 2$1.90

31104417901
BRACKET WITH SHEATH
$4.46

Part#: 10441790 Qty: 1$4.46

32162969241
SCREW
$0.50

Part#: 16296924 Qty: 1$0.50

33126012741
WASHER
$1.00

Part#: 12601274 Qty: 1$1.00

342244641
RH CYLINDER HEAD WATER PIPE -No longer supplied- -Replaced by 229341-

Part#: 224464 Qty: 1

342293411
RH CYLINDER HEAD WATER PIPE -No longer supplied- -Replaced by 239981-

Part#: 229341 Qty: 1

342399811
RH CYLINDER HEAD WATER PIPE -Applicable until depletion-

Part#: 239981 Qty: 1

342484231
RH CYLINDER HEAD WATER PIPE -Applicable after depletion of 239981-
$625.46

Part#: 248423 Qty: 1$625.46

352109801
LH CYLINDER HEAD WATER PIPE -No longer supplied- -Replaced by 239553-

Part#: 210980 Qty: 1

352395531
LH CYLINDER HEAD WATER PIPE
$497.77

Part#: 239553 Qty: 1$497.77

362037841
SLEEVE -No longer supplied- -Replaced by 210726-

Part#: 203784 Qty: 1

362107261
SLEEVE -D. 14.5 X 21.5 X 75- -No longer supplied- -Replaced by 235080-

Part#: 210726 Qty: 1

362350801
SLEEVE -D. 14.5 X 26.5 X 75-
$59.94

Part#: 235080 Qty: 1$59.94

371780532
CLAMP -For hose fastener 210726 ref. 36-
$4.25

Part#: 178053 Qty: 2$4.25

371866802
CLAMP -For hose fastener 235080 ref. 36- -No longer supplied- -Replaced by 13433370-

Part#: 186680 Qty: 2

37134333702
COLLAR FOR HOSE UNION -For hose fastener 235080 ref. 36-

Part#: 13433370 Qty: 2

382037872
PIPE UNION

Part#: 203787 Qty: 2

39102599604
GASKET
$1.00

Part#: 10259960 Qty: 4$1.00

402177593
RUBBER SHIM -100 X 10 X 3 mm-

Part#: 217759 Qty: 3

402177602
RUBBER SHIM -40 X 10 X 3 mm-

Part#: 217760 Qty: 2

402254674
RUBBER SHIM -410 X 10 X 3 mm-

Part#: 225467 Qty: 4

402254683
RUBBER SHIM -200 X 10 X 3 mm-

Part#: 225468 Qty: 3

41692507002
UPPER GASKET

Part#: 69250700 Qty: 2

41692508002
LOWER SEAL

Part#: 69250800 Qty: 2

41692509002
LATERAL SEAL

Part#: 69250900 Qty: 2

41698502002
CENTRAL SEAL

Part#: 69850200 Qty: 2

42162851276
SCREW -M5 X 16-
$1.45

Part#: 16285127 Qty: 6$1.45

431664676
WASHER
$1.16

Part#: 166467 Qty: 6$1.16

44126381246
WASHER
$0.29

Part#: 12638124 Qty: 6$0.29

45162902343
SCREW -Applicable up to Ass. No. 66620-

Part#: 16290234 Qty: 3

45162877343
SCREW -Applicable from Ass. No. 66621-
$1.25

Part#: 16287734 Qty: 3$1.25

46140587291
NUT -Applicable up to Ass. No. 66620-

Part#: 14058729 Qty: 1

46140585191
NUT -Applicable from Ass. No. 66621-
$1.49

Part#: 14058519 Qty: 1$1.49

47162872243
SCREW

Part#: 16287224 Qty: 3

48693650001
UPPER GASKET -Not for USA, CDN- -Applicable until depletion-

Part#: 69365000 Qty: 1

48807838001
UPPER GASKET -Not for USA, CDN- -Applicable after depletion of 69365000-

Part#: 80783800 Qty: 1

48699668001
GASKET -L. 338 mm- -Applicable for USA, CDN- -Applicable until depletion-

Part#: 69966800 Qty: 1

48807840001
GASKET -L. 338 mm- -Applicable for USA, CDN- -Applicable after depletion of 69966800-

Part#: 80784000 Qty: 1

48699669001
GASKET -L. 518 mm- -Applicable for USA, CDN- -Applicable until depletion-

Part#: 69966900 Qty: 1

48807841001
GASKET -L. 518 mm- -Applicable for USA, CDN- -Applicable after depletion of 69966900-

Part#: 80784100 Qty: 1

49693651001
LOWER SEAL -Applicable until depletion-

Part#: 69365100 Qty: 1

49807839001
LOWER SEAL -Applicable after depletion of 69365100-
$34.09

Part#: 80783900 Qty: 1$34.09

502145551
WATER DELIVERY PIPE -No longer supplied- -Replaced by 251426-

Part#: 214555 Qty: 1

502514261
WATER DELIVERY PIPE
$295.85

Part#: 251426 Qty: 1$295.85

512099721
WATER RETURN PIPE
$471.68

Part#: 209972 Qty: 1$471.68

52130007902
SCREW COLLAR
$1.75

Part#: 13000790 Qty: 2$1.75

532263171
HOSE UNION MOUNT

Part#: 226317 Qty: 1

542263951
MOUNT COVER -No longer supplied- -Replaced by 226394-

Part#: 226395 Qty: 1

542263941
MOUNT COVER

Part#: 226394 Qty: 1

55162851272
SCREW -M5 X 16-
$1.45

Part#: 16285127 Qty: 2$1.45

56126476242
WASHER
$0.96

Part#: 12647624 Qty: 2$0.96

571801371
TEMPERATURE SENSOR
$38.94

Part#: 180137 Qty: 1$38.94

58126013742
WASHER
$0.49

Part#: 12601374 Qty: 2$0.49

592234561
PLATE

Part#: 223456 Qty: 1

60130007902
SCREW COLLAR -No longer supplied- -Replaced by 13000690-
$1.75

Part#: 13000790 Qty: 2$1.75

60130006902
SCREW COLLAR
$2.50

Part#: 13000690 Qty: 2$2.50

61685745001
BRACKET

Part#: 68574500 Qty: 1

62145073871
CAP
$0.72

Part#: 14507387 Qty: 1$0.72

631389266
RUBBER PAD
$5.91

Part#: 138926 Qty: 6$5.91

64610814002
CLIP

Part#: 61081400 Qty: 2
