Table 23

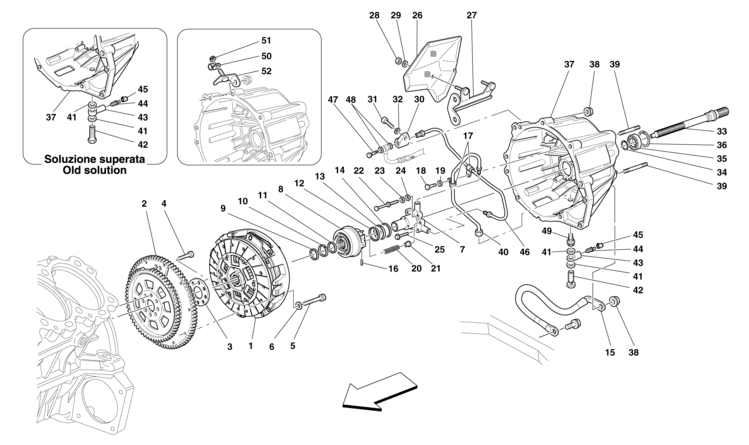

Table 23 - CLUTCH AND CONTROLS -Not for F1

Ref.Part#Qty.DescriptionPrice
12222771
DUAL DISC CLUTCH -Not for F1 gearbox-
$3770.52

Part#: 222277 Qty: 1$3770.52

21859831
ENGINE FLYWHEEL -Not for F1 gearbox- -No longer supplied- -Replaced by 230426-

Part#: 185983 Qty: 1

22304261
ENGINE FLYWHEEL -Not for F1 gearbox-
$1952.73

Part#: 230426 Qty: 1$1952.73

31038761
WASHER -Not for F1 gearbox-
$11.63

Part#: 103876 Qty: 1$11.63

42017558
SCREW -Not for F1 gearbox-
$1.95

Part#: 201755 Qty: 8$1.95

52167719
SCREW -Not for F1 gearbox-
$1.85

Part#: 216771 Qty: 9$1.85

6111943779
WASHER -Not for F1 gearbox- -No longer supplied- -Replaced by 11194379-

Part#: 11194377 Qty: 9

6111943799
WASHER -Not for F1 gearbox-
$2.25

Part#: 11194379 Qty: 9$2.25

71829521
FLANGE -Not for F1 gearbox-
$1441.57

Part#: 182952 Qty: 1$1441.57

82010241
THRUST BEARING -Not for F1 gearbox- -No longer supplied- -Replaced by 234943-
$1900.94

Part#: 201024 Qty: 1$1900.94

82349431
THRUST BEARING -Not for F1 gearbox-
$1895.62

Part#: 234943 Qty: 1$1895.62

91729701
SCRAPER RING -Not for F1 gearbox-
$26.94

Part#: 172970 Qty: 1$26.94

102080141
RING -Not for F1 gearbox-
$8.00

Part#: 208014 Qty: 1$8.00

111729721
SEAL RING -Not for F1 gearbox-
$27.02

Part#: 172972 Qty: 1$27.02

121545081
SEAL RING -Not for F1 gearbox-
$58.07

Part#: 154508 Qty: 1$58.07

131545071
RING -Not for F1 gearbox-
$5.50

Part#: 154507 Qty: 1$5.50

131704191
RING -Alternative solution- -Not for F1 gearbox-

Part#: 170419 Qty: 1

141545511
SCRAPER RING -Not for F1 gearbox-
$31.97

Part#: 154551 Qty: 1$31.97

152172921
GROUND BRAID -Not for F1 gearbox-

Part#: 217292 Qty: 1

16141585701
SPRING PIN -Not for F1 gearbox- -No longer supplied- -Replaced by 14604170-
$1.00

Part#: 14158570 Qty: 1$1.00

16146041701
SPRING PIN -Not for F1 gearbox-
$0.88

Part#: 14604170 Qty: 1$0.88

17104409902
BRACKET WITH SHEATH -Not for F1 gearbox-

Part#: 10440990 Qty: 2

18143053341
SCREW -Not for F1 gearbox-
$0.45

Part#: 14305334 Qty: 1$0.45

19126042741
WASHER -Not for F1 gearbox-
$0.30

Part#: 12604274 Qty: 1$0.30

201552072
PRE-TIGHTENING SPRING -Not for F1 gearbox-
$8.42

Part#: 155207 Qty: 2$8.42

211552062
SHIM -Applicable for thrust bearing 201024 Pos. 8- -Not for F1 gearbox-
$4.90

Part#: 155206 Qty: 2$4.90

221829552
STUD BOLT -Not for F1 gearbox-
$45.25

Part#: 182955 Qty: 2$45.25

23126012742
WASHER -Not for F1 gearbox-
$1.00

Part#: 12601274 Qty: 2$1.00

24105194242
WASHER -Not for F1 gearbox-
$0.39

Part#: 10519424 Qty: 2$0.39

25162862242
SCREW -Not for F1 gearbox-

Part#: 16286224 Qty: 2

262148061
HEAT GUARD -Not for F1 gearbox-

Part#: 214806 Qty: 1

272271401
SHIELD MOUNTING BRACKET -Not for F1 gearbox-

Part#: 227140 Qty: 1

28140486152
NUT -Not for F1 gearbox- -No longer supplied- -Replaced by 14048611-
$0.77

Part#: 14048615 Qty: 2$0.77

28140486112
NUT -Not for F1 gearbox-

Part#: 14048611 Qty: 2

29135777012
WASHER -Not for F1 gearbox-
$0.15

Part#: 13577701 Qty: 2$0.15

301394711
CONNECTOR -Not for F1 gearbox-
$39.90

Part#: 139471 Qty: 1$39.90

31143055341
SCREW -Not for F1 gearbox-

Part#: 14305534 Qty: 1

321006601
WASHER -Not for F1 gearbox-

Part#: 100660 Qty: 1

332001021
CLUTCH SHAFT -Not for F1 gearbox-

Part#: 200102 Qty: 1

341445111
STOP RING -Not for F1 gearbox-

Part#: 144511 Qty: 1

351744701
BEARING -Not for F1 gearbox-
$100.00

Part#: 174470 Qty: 1$100.00

361829631
STOP RING -Not for F1 gearbox-

Part#: 182963 Qty: 1

372230031
CLUTCH HOUSING -Applicable up to Ass. No. 66794- -Not for F1 gearbox- -No longer supplied- -Replaced by 230070-

Part#: 223003 Qty: 1

372300701
CLUTCH HOUSING -Applicable from Ass. No. 66795- -Not for F1 gearbox-

Part#: 230070 Qty: 1

381564627
NUT -Not for F1 gearbox-

Part#: 156462 Qty: 7

39135463348
STUD BOLT -Not for F1 gearbox-

Part#: 13546334 Qty: 8

402230011
BLEED SYSTEM PIPE -Not for F1 gearbox-

Part#: 223001 Qty: 1

41102611602
GASKET -Applicable up to Ass. No. 66794- -Not for F1 gearbox- -No longer supplied- -Replaced by 10284460-

Part#: 10261160 Qty: 2

41102844602
GASKET -Applicable from Ass. No. 66795- -Not for F1 gearbox-
$1.00

Part#: 10284460 Qty: 2$1.00

422230001
PIPE UNION -Applicable up to Ass. No. 66794- -Not for F1 gearbox- -No longer supplied- -Replaced by 230064-

Part#: 223000 Qty: 1

422300641
PIPE UNION -Applicable from Ass. No. 66795- -Not for F1 gearbox-

Part#: 230064 Qty: 1

432230021
RING -Applicable up to Ass. No. 66794- -Not for F1 gearbox- -No longer supplied- -Replaced by 230065-

Part#: 223002 Qty: 1

432300651
RING -Applicable from Ass. No. 66795- -Not for F1 gearbox-

Part#: 230065 Qty: 1

441529541
BLEED SCREW -Not for F1 gearbox-
$6.25

Part#: 152954 Qty: 1$6.25

451529551
CAP -Not for F1 gearbox-
$7.50

Part#: 152955 Qty: 1$7.50

462195751
OIL DELIVERY PIPE -Not for F1 gearbox-

Part#: 219575 Qty: 1

47101850111
PIPE UNION -Not for F1 gearbox- -No longer supplied- -Replaced by 171454-

Part#: 10185011 Qty: 1

471714541
PIPE UNION -Not for F1 gearbox-
$48.92

Part#: 171454 Qty: 1$48.92

48102610602
GASKET -Not for F1 gearbox-
$0.50

Part#: 10261060 Qty: 2$0.50

492300671
THREADED BUSHING -Applicable from Ass. No. 66795- -Not for F1 gearbox-

Part#: 230067 Qty: 1

50104409901
BRACKET WITH SHEATH -Not for F1 gearbox-

Part#: 10440990 Qty: 1

51140584191
NUT -Not for F1 gearbox-
$0.77

Part#: 14058419 Qty: 1$0.77

522250381
CLUTCH PIPE FASTENER BRACKET -Not for F1 gearbox-

Part#: 225038 Qty: 1
