Table 26

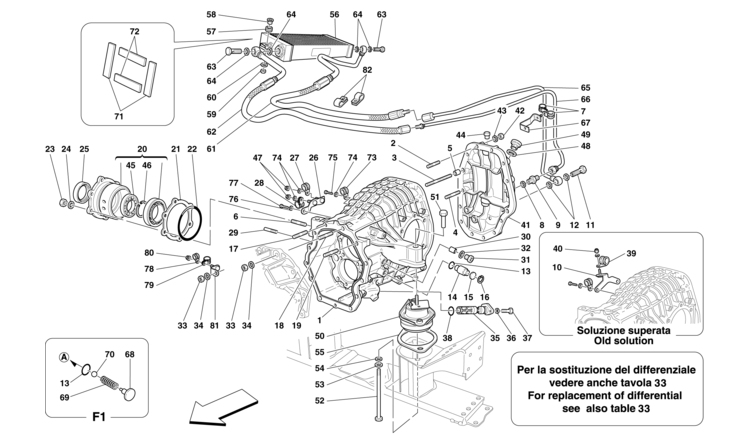

Table 26 - DIFFERENTIAL CASE AND GEARBOX COOLING RADIATOR

Ref.Part#Qty.DescriptionPrice
02274081
GEARBOX HOUSING ASSEMBLY

Part#: 227408 Qty: 1

12274101
4th SECTION OF GEARBOX HOUSING -Supplied with complete gearbox housing, 227408-

Part#: 227410 Qty: 1

2135436243
STUD BOLT -M8 X 16- -Shank length 30-
$0.46

Part#: 13543624 Qty: 3$0.46

3135437245
STUD BOLT -M8 X 16- -Shank length 35-
$1.50

Part#: 13543724 Qty: 5$1.50

42119363
STUD BOLT -M8 X 65-

Part#: 211936 Qty: 3

42119371
STUD BOLT -M8 X 70-

Part#: 211937 Qty: 1

4135438241
STUD BOLT -M8 X 16- -Shank length 40-

Part#: 13543824 Qty: 1

51027042
CENTRING DOWEL
$3.29

Part#: 102704 Qty: 2$3.29

61354622412
STUD BOLT
$14.09

Part#: 13546224 Qty: 12$14.09

7104506902
BRACKET WITH SHEATH
$1.70

Part#: 10450690 Qty: 2$1.70

8102599601
GASKET
$1.00

Part#: 10259960 Qty: 1$1.00

92177881
CONNECTOR

Part#: 217788 Qty: 1

101990171
RH BRACKET -Obsolete solution-

Part#: 199017 Qty: 1

111955891
CONNECTOR

Part#: 195589 Qty: 1

12102599602
GASKET
$1.00

Part#: 10259960 Qty: 2$1.00

13144533811
O-RING
$2.33

Part#: 14453381 Qty: 1$2.33

141537191
ROD -Not for F1 gearbox-

Part#: 153719 Qty: 1

151546981
PAD -Not for F1 gearbox-

Part#: 154698 Qty: 1

16110574761
SEEGER RING

Part#: 11057476 Qty: 1

17135435241
STUD BOLT -M8 X 16- -Shank length 25-
$4.36

Part#: 13543524 Qty: 1$4.36

18135436242
STUD BOLT -M8 X 16- -Shank length 30-
$0.46

Part#: 13543624 Qty: 2$0.46

19135437241
STUD BOLT -M8 X 16- -Shank length 35-
$1.50

Part#: 13543724 Qty: 1$1.50

201890981
COMPLETE RH DIFFERENTIAL COVER

Part#: 189098 Qty: 1

201891001
COMPLETE LH DIFFERENTIAL COVER

Part#: 189100 Qty: 1

211500992
DIFFERENTIAL COVER SHIM -Th. 1.3 mm-

Part#: 150099 Qty: 2

211501000
DIFFERENTIAL COVER SHIM -Th. 1.4 mm-

Part#: 150100

211501010
DIFFERENTIAL COVER SHIM -Th. 1.5 mm-

Part#: 150101

211501020
DIFFERENTIAL COVER SHIM -Th. 1.6 mm-

Part#: 150102

211501030
DIFFERENTIAL COVER SHIM -Th. 1.7 mm-

Part#: 150103

211501040
DIFFERENTIAL COVER SHIM -Th. 1.8 mm-

Part#: 150104

211501050
DIFFERENTIAL COVER SHIM -Th. 1.9 mm-

Part#: 150105

211501060
DIFFERENTIAL COVER SHIM -Th. 1.45 mm-

Part#: 150106

211501070
DIFFERENTIAL COVER SHIM -Th. 1.55 mm-

Part#: 150107

211501080
DIFFERENTIAL COVER SHIM -Th. 1.65 mm-

Part#: 150108

211753780
DIFFERENTIAL COVER SHIM -Th. 1.75 mm-

Part#: 175378

22144613812
O-RING
$9.86

Part#: 14461381 Qty: 2$9.86

231216472112
NUT
$1.65

Part#: 12164721 Qty: 12$1.65

241260147412
WASHER

Part#: 12601474 Qty: 12

251816181
RH GASKET
$71.59

Part#: 181618 Qty: 1$71.59

251816171
LH GASKET
$72.50

Part#: 181617 Qty: 1$72.50

262271961
BRACKET

Part#: 227196 Qty: 1

27104414901
BRACKET WITH SHEATH

Part#: 10441490 Qty: 1

28104413901
BRACKET WITH SHEATH
$0.46

Part#: 10441390 Qty: 1$0.46

29161830211
SCREW

Part#: 16183021 Qty: 1

301153763
BUSHING
$55.77

Part#: 115376 Qty: 3$55.77

311507311
CAP
$6.25

Part#: 150731 Qty: 1$6.25

32102824601
GASKET
$0.75

Part#: 10282460 Qty: 1$0.75

331610081113
NUT

Part#: 16100811 Qty: 13

341260137413
WASHER
$0.49

Part#: 12601374 Qty: 13$0.49

351439391
GEARBOX OIL FILTER -No longer supplied- -Replaced by 251638-
$100.18

Part#: 143939 Qty: 1$100.18

352516381
GEARBOX OIL FILTER
$995.19

Part#: 251638 Qty: 1$995.19

36111992772
WASHER

Part#: 11199277 Qty: 2

37109776242
SCREW

Part#: 10977624 Qty: 2

381821191
O-RING
$3.35

Part#: 182119 Qty: 1$3.35

39104409901
BRACKET WITH SHEATH -Obsolete solution-

Part#: 10440990 Qty: 1

401027412
NUT -Obsolete solution-
$0.75

Part#: 102741 Qty: 2$0.75

412150201
REAR GEARBOX HOUSING COVER

Part#: 215020 Qty: 1

421610081114
NUT

Part#: 16100811 Qty: 14

431260137414
WASHER
$0.49

Part#: 12601374 Qty: 14$0.49

441977971
OIL BREATHER -No longer supplied- -Replaced by 238858-

Part#: 197797 Qty: 1

442388581
OIL BREATHER -No longer supplied- -Replaced by 197797-

Part#: 238858 Qty: 1

441977971
OIL BREATHER

Part#: 197797 Qty: 1

451849952
BALL BEARING

Part#: 184995 Qty: 2

461857232
SEEGER RING
$6.80

Part#: 185723 Qty: 2$6.80

471027412
NUT
$0.75

Part#: 102741 Qty: 2$0.75

48102634601
GASKET
$1.00

Part#: 10263460 Qty: 1$1.00

49143253111
CAP -No longer supplied- -Replaced by 10275011-

Part#: 14325311 Qty: 1

49102750111
THREADED PLUG
$3.90

Part#: 10275011 Qty: 1$3.90

501968682
ELASTIC BUSHING -Not for F1 gearbox- -No longer supplied- -Replaced by 235533-
$947.07

Part#: 196868 Qty: 2$947.07

502355332
ELASTIC BUSHING -Not for F1 gearbox-

Part#: 235533 Qty: 2

511968882
LOCATOR STUD

Part#: 196888 Qty: 2

521667984
SCREW -No longer supplied- -Replaced by 232920-

Part#: 166798 Qty: 4

522329204
SCREW

Part#: 232920 Qty: 4

53144966244
WASHER -No longer supplied- -Replaced by 126648-

Part#: 14496624 Qty: 4

531266484
WASHER
$1.75

Part#: 126648 Qty: 4$1.75

54126014744
WASHER

Part#: 12601474 Qty: 4

551963332
ENGINE BUSHING MOUNTING PLATE -No longer supplied- -Replaced by 249915-

Part#: 196333 Qty: 2

552499152
ENGINE BUSHING MOUNTING PLATE

Part#: 249915 Qty: 2

562142591
GEARBOX OIL RADIATOR

Part#: 214259 Qty: 1

571035493
CABLE GROMMET
$1.80

Part#: 103549 Qty: 3$1.80

581497073
SHIM
$1.97

Part#: 149707 Qty: 3$1.97

591027413
NUT
$0.75

Part#: 102741 Qty: 3$0.75

60126012743
WASHER
$1.00

Part#: 12601274 Qty: 3$1.00

612219991
OIL DELIVERY PIPE -Radiator side-

Part#: 221999 Qty: 1

622219971
OIL RETURN PIPE -Radiator side-

Part#: 221997 Qty: 1

63101819112
PIPE UNION

Part#: 10181911 Qty: 2

64102615604
GASKET
$1.00

Part#: 10261560 Qty: 4$1.00

652254191
OIL DELIVERY PIPE -Gearbox side-

Part#: 225419 Qty: 1

662286421
OIL RETURN PIPE -Gearbox side-

Part#: 228642 Qty: 1

672139341
TUBE FASTENING BRACKET

Part#: 213934 Qty: 1

681935781
BUSHING -Applicable for F1 gearbox-

Part#: 193578 Qty: 1

691007504
SPRING -Applicable for F1 gearbox-
$2.49

Part#: 100750 Qty: 4$2.49

701016124
BALL -Applicable for F1 gearbox-
$1.90

Part#: 101612 Qty: 4$1.90

712253332
GASKET

Part#: 225333 Qty: 2

722253352
GASKET

Part#: 225335 Qty: 2

73104413901
BRACKET WITH SHEATH
$0.46

Part#: 10441390 Qty: 1$0.46

74126012743
WASHER
$1.00

Part#: 12601274 Qty: 3$1.00

75116357241
SCREW

Part#: 11635724 Qty: 1

761274941
WASHER
$0.65

Part#: 127494 Qty: 1$0.65

77109021241
SCREW
$0.65

Part#: 10902124 Qty: 1$0.65

78104419901
BRACKET WITH SHEATH
$1.20

Part#: 10441990 Qty: 1$1.20

79104412901
BRACKET WITH SHEATH
$1.96

Part#: 10441290 Qty: 1$1.96

801027411
NUT
$0.75

Part#: 102741 Qty: 1$0.75

811496941
PIPE FASTENER BRACKET

Part#: 149694 Qty: 1

82104502901
BRACKET WITH SHEATH -for D.12 pipe-

Part#: 10450290 Qty: 1

82104503901
BRACKET WITH SHEATH -for D.14 pipe-

Part#: 10450390 Qty: 1
