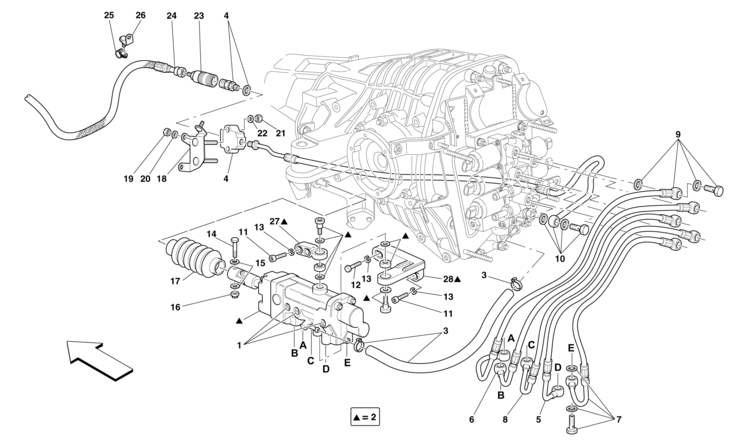

Ref. | Part# | Qty. | Description | Price |
---|
0 | 226556 | 1 | COMPLETE F1 GEARBOX SYSTEM COMPONENT KIT -Applicable for F1 gearbox- | | | |
Part#: 226556 Qty: 1 |
1 | 247996 | 3 | BLEED SCREW -Applicable for F1 gearbox- | | | |
Part#: 247996 Qty: 3 |
2 | 247224 | 1 | HYDRAULIC ACTUATOR KIT -Applicable for F1 gearbox- | $17500.92 | | |
Part#: 247224 Qty: 1$17500.92 |
3 | 247228 | 1 | RECIRCULATION PIPE KIT -Applicable for F1 gearbox- | | | |
Part#: 247228 Qty: 1 |
4 | 248333 | 1 | QUICK DISCONNECT KIT -Applicable for F1 gearbox- | | | |
Part#: 248333 Qty: 1 |
5 | 247239 | 1 | EV1 PIPE KIT -Applicable for F1 gearbox- | | | |
Part#: 247239 Qty: 1 |
6 | 247240 | 1 | EV2 PIPE KIT -Applicable for F1 gearbox- | | | |
Part#: 247240 Qty: 1 |
7 | 248354 | 1 | EV3 PIPE KIT -Applicable for F1 gearbox- | | | |
Part#: 248354 Qty: 1 |
8 | 248355 | 1 | EV4 PIPE KIT -Applicable for F1 gearbox- | | | |
Part#: 248355 Qty: 1 |
9 | 248356 | 1 | EV5 PIPE KIT -Applicable for F1 gearbox- | | | |
Part#: 248356 Qty: 1 |
10 | 248330 | 1 | EVF PIPE KIT -Applicable for F1 gearbox- | | | |
Part#: 248330 Qty: 1 |
11 | 14306524 | 3 | SCREW -Applicable for F1 gearbox- | $0.79 | | |
Part#: 14306524 Qty: 3$0.79 |
12 | 16043834 | 1 | SCREW -Applicable for F1 gearbox- | $0.35 | | |
Part#: 16043834 Qty: 1$0.35 |
13 | 10569374 | 4 | WASHER -Applicable for F1 gearbox- | | | |
Part#: 10569374 Qty: 4 |
14 | 170767 | 1 | SCREW -Applicable for F1 gearbox- | | | |
Part#: 170767 Qty: 1 |
15 | 12638524 | 2 | WASHER -Applicable for F1 gearbox- | $0.12 | | |
Part#: 12638524 Qty: 2$0.12 |
16 | 101139 | 1 | NUT -Applicable for F1 gearbox- | $1.90 | | |
Part#: 101139 Qty: 1$1.90 |
17 | 184119 | 1 | BELLOW -Applicable for F1 gearbox- | | | |
Part#: 184119 Qty: 1 |
18 | 225418 | 1 | BRACKET -Applicable for F1 gearbox- | | | |
Part#: 225418 Qty: 1 |
19 | 16100811 | 2 | NUT -Applicable for F1 gearbox- | | | |
Part#: 16100811 Qty: 2 |
20 | 12601374 | 2 | WASHER -Applicable for F1 gearbox- | $0.49 | | |
Part#: 12601374 Qty: 2$0.49 |
21 | 102741 | 2 | NUT -Applicable for F1 gearbox- | $0.75 | | |
Part#: 102741 Qty: 2$0.75 |
22 | 14496424 | 2 | WASHER -Applicable for F1 gearbox- | | | |
Part#: 14496424 Qty: 2 |
23 | 225148 | 1 | FEMALE QUICK COUPLING -Applicable for F1 gearbox- | $128.46 | | |
Part#: 225148 Qty: 1$128.46 |
24 | 195131 | 1 | CLUTCH PIPE -Applicable for F1 gearbox- -No longer supplied- -Replaced by 226447- | | | |
Part#: 195131 Qty: 1 |
24 | 226447 | 1 | CLUTCH PIPE -Applicable for F1 gearbox- | | | |
Part#: 226447 Qty: 1 |
25 | 10441590 | 1 | BRACKET WITH SHEATH -Applicable for F1 gearbox- | $0.46 | | |
Part#: 10441590 Qty: 1$0.46 |
26 | 149694 | 1 | PIPE FASTENER BRACKET -Applicable for F1 gearbox- | | | |
Part#: 149694 Qty: 1 |
27 | 184109 | 1 | UPPER BRACKET -Applicable for F1 gearbox- | | | |
Part#: 184109 Qty: 1 |
28 | 184110 | 1 | INFERIOR BRACKET -Applicable for F1 gearbox- | | | |
Part#: 184110 Qty: 1 |
