Table 50

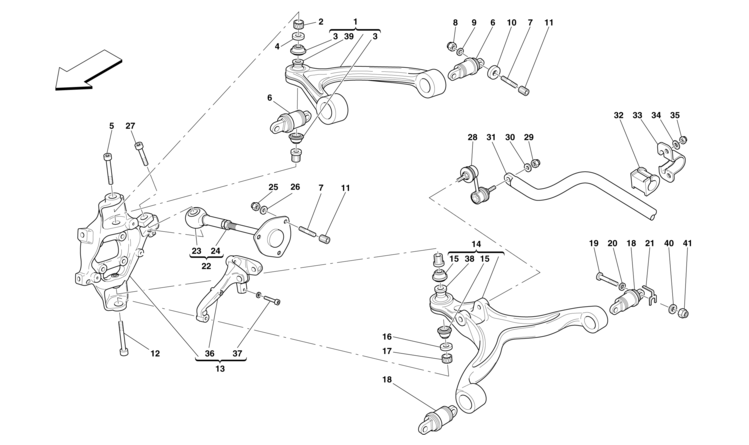

Table 50 - REAR SUSPENSION - ARMS AND STABILIZER BAR

Ref.Part#Qty.DescriptionPrice
12269682
COMPLETE UPPER ARM

Part#: 226968 Qty: 2

21795552
COMPENSATOR RING
$6.50

Part#: 179555 Qty: 2$6.50

31718484
GAITER
$186.41

Part#: 171848 Qty: 4$186.41

41902742
SHIM

Part#: 190274 Qty: 2

51885812
SCREW

Part#: 188581 Qty: 2

62091674
FLANBLOC
$407.57

Part#: 209167 Qty: 4$407.57

717015514
THREADED ROD
$4.00

Part#: 170155 Qty: 14$4.00

81040308
NUT
$0.48

Part#: 104030 Qty: 8$0.48

9144965248
WASHER
$0.17

Part#: 14496524 Qty: 8$0.17

102193448
WASHER

Part#: 219344 Qty: 8

111358221014
THREADED INSERT

Part#: 13582210 Qty: 14

121902722
SCREW

Part#: 190272 Qty: 2

131907501
RH REAR STUB AXLE -Standard-

Part#: 190750 Qty: 1

132204541
RH REAR STUB AXLE -Version with CCM brakes-

Part#: 220454 Qty: 1

131907511
LH REAR STUB AXLE -Standard-

Part#: 190751 Qty: 1

132204531
LH REAR STUB AXLE -Version with CCM brakes-

Part#: 220453 Qty: 1

142075812
COMPLETE LOWER ARM

Part#: 207581 Qty: 2

151718474
GAITER
$186.41

Part#: 171847 Qty: 4$186.41

161902732
SHIM

Part#: 190273 Qty: 2

171795542
COMPENSATOR RING
$6.81

Part#: 179554 Qty: 2$6.81

181967894
FLANBLOC
$429.77

Part#: 196789 Qty: 4$429.77

191822158
SCREW
$8.35

Part#: 182215 Qty: 8$8.35

20144966248
WASHER

Part#: 14496624 Qty: 8

212009388
SHIM -Installed if necessary-

Part#: 200938 Qty: 8

212033128
SHIM -Th. 1 mm- -Installed if necessary-
$8.00

Part#: 203312 Qty: 8$8.00

212033138
SHIM -Th. 1.5 mm- -Installed if necessary-
$64.14

Part#: 203313 Qty: 8$64.14

212033148
SHIM -Th. 2 mm- -Installed if necessary-
$1.82

Part#: 203314 Qty: 8$1.82

212033158
SHIM -Th. 2.5 mm- -Installed if necessary-
$21.97

Part#: 203315 Qty: 8$21.97

212033168
SHIM -Th. 3 mm- -Installed if necessary-
$7.50

Part#: 203316 Qty: 8$7.50

221947922
COMPLETE TIE-ROD -No longer supplied- -Replaced by 252479-

Part#: 194792 Qty: 2

222524792
COMPLETE TIE-ROD
$1127.99

Part#: 252479 Qty: 2$1127.99

231947942
ROD END FOR TIE-ROD -Applicable for tie-rod Part No. 194792-
$585.32

Part#: 194794 Qty: 2$585.32

242042482
NUT -Applicable for tie-rod Part No. 194792-

Part#: 204248 Qty: 2

251040306
NUT
$0.48

Part#: 104030 Qty: 6$0.48

261131136
WASHER

Part#: 113113 Qty: 6

271795562
SCREW
$42.95

Part#: 179556 Qty: 2$42.95

281689932
SPHERICAL TIE-ROD

Part#: 168993 Qty: 2

29121647142
NUT
$1.50

Part#: 12164714 Qty: 2$1.50

30126014742
WASHER

Part#: 12601474 Qty: 2

312212991
STABILISER BAR -Standard- -Applicable until depletion-

Part#: 221299 Qty: 1

312523431
STABILISER BAR -Standard- -Applicable after depletion of 221299-

Part#: 252343 Qty: 1

312570381
STABILISER BAR -D. 24.5- -Applicable for HGTE version- -Applicable until depletion-

Part#: 257038 Qty: 1

312569761
STABILISER BAR -D. 25- -Applicable for HGTE and HGTE 60 F1 versions- -Applicable after depletion of 257038-

Part#: 256976 Qty: 1

322005862
STABILISER BAR BUSH -Standard-

Part#: 200586 Qty: 2

322570372
STABILISER BAR BUSH -D. 24.5- -Applicable for HGTE version- -Applicable for stabiliser bar 257038-

Part#: 257037 Qty: 2

322083212
STABILISER BAR BUSH -D. 25- -Applicable for HGTE and HGTE 60 F1 versions- -Applicable for stabiliser bar 256976-

Part#: 208321 Qty: 2

331338022
PLATE -No longer supplied- -Replaced by 239775-
$152.82

Part#: 133802 Qty: 2$152.82

332397752
PLATE

Part#: 239775 Qty: 2

341131134
WASHER

Part#: 113113 Qty: 4

351040304
NUT
$0.48

Part#: 104030 Qty: 4$0.48

362050051
RH SHOCK ABSORBER MOUNT

Part#: 205005 Qty: 1

362050061
LH SHOCK ABSORBER MOUNT

Part#: 205006 Qty: 1

372126012
SCREW

Part#: 212601 Qty: 2

382036322
BALL-JOINT -No longer supplied-
$425.69

Part#: 203632 Qty: 2$425.69

392036332
BALL-JOINT -No longer supplied-
$239.02

Part#: 203633 Qty: 2$239.02

40144966248
WASHER

Part#: 14496624 Qty: 8

41140586218
NUT

Part#: 14058621 Qty: 8
