Table 9

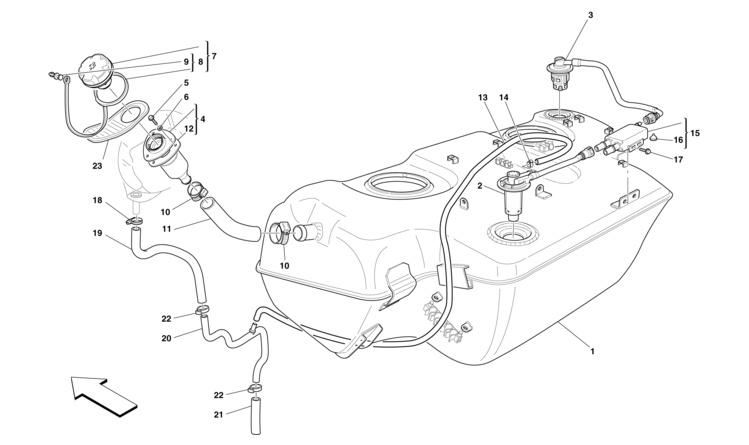

Table 9 - FUEL TANK - FILLER NECK AND PIPES

Ref.Part#Qty.DescriptionPrice
12043181
FUEL TANK -Applicable until depletion-

Part#: 204318 Qty: 1

12482591
FUEL TANK -Applicable after depletion of 204318-

Part#: 248259 Qty: 1

22043191
MULTIFUNCTION VALVE -Applicable up to Ass. No. 83068-

Part#: 204319 Qty: 1

22521041
MULTIFUNCTION VALVE -Applicable from Ass. No. 83069-

Part#: 252104 Qty: 1

32043201
TANK BREATHER VALVE -Applicable up to Ass. No. 83068-

Part#: 204320 Qty: 1

32521051
TANK BREATHER VALVE -Applicable from Ass. No. 83069-

Part#: 252105 Qty: 1

42133651
PIPE UNION
$232.43

Part#: 213365 Qty: 1$232.43

5162861243
SCREW

Part#: 16286124 Qty: 3

6106154743
WASHER
$0.23

Part#: 10615474 Qty: 3$0.23

71904691
TANK CAP
$430.88

Part#: 190469 Qty: 1$430.88

81969491
RING
$40.69

Part#: 196949 Qty: 1$40.69

91861721
CLIP
$0.39

Part#: 186172 Qty: 1$0.39

101701272
COLLAR FOR HOSE UNION

Part#: 170127 Qty: 2

112095041
FUEL FILLER NECK CONNECTOR PIPE -Applicable until depletion-

Part#: 209504 Qty: 1

112325701
FUEL FILLER NECK CONNECTOR PIPE -Applicable after depletion of 209504-

Part#: 232570 Qty: 1

122132541
GASKET

Part#: 213254 Qty: 1

132261171
RUBBER PIPE -Applicable until depletion-

Part#: 226117 Qty: 1

132307451
RUBBER PIPE -Applicable after depletion of 226117-

Part#: 230745 Qty: 1

14134346701
COLLAR FOR HOSE UNION
$1.80

Part#: 13434670 Qty: 1$1.80

152093661
VAPOUR SEPARATOR -Applicable up to Ass. No. 83068-

Part#: 209366 Qty: 1

152521031
VAPOUR SEPARATOR -Applicable from Ass. No. 83069-

Part#: 252103 Qty: 1

16146223871
CAP

Part#: 14622387 Qty: 1

17162969242
SCREW
$0.50

Part#: 16296924 Qty: 2$0.50

18134346701
COLLAR FOR HOSE UNION
$1.80

Part#: 13434670 Qty: 1$1.80

192261091
RUBBER PIPE

Part#: 226109 Qty: 1

202261111
TWO-WAY UNION

Part#: 226111 Qty: 1

212262171
RUBBER PIPE

Part#: 226217 Qty: 1

22134335702
COLLAR FOR HOSE UNION -No longer supplied- -Replaced by 13432870-
$1.50

Part#: 13433570 Qty: 2$1.50

22134328702
COLLAR FOR HOSE UNION
$11.08

Part#: 13432870 Qty: 2$11.08

23671945001
GUARD

Part#: 67194500 Qty: 1
