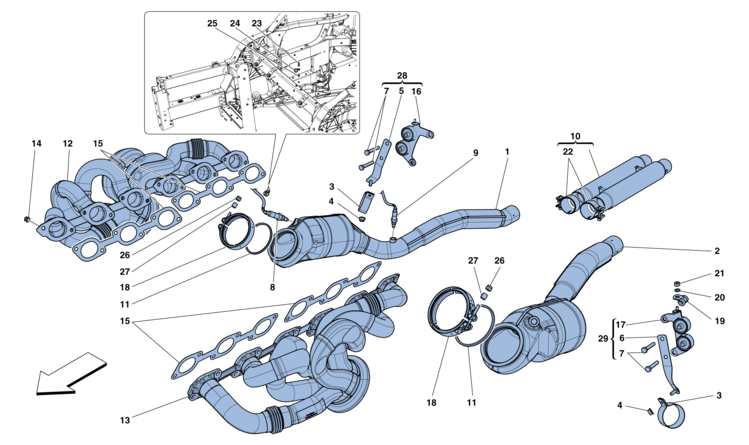

| Ref. | Part# | Qty. | Description | Price |
|---|
| 1 | 275462 | 1 | COMPL. RH CATALYTIC CONVERTER | | | |
Part#: 275462 Qty: 1 |
| 2 | 275463 | 1 | COMPL. LH CATALYTIC CONVERTER | | | |
Part#: 275463 Qty: 1 |
| 3 | 270406 | 2 | RING CLAMP | $18.21 | | |
Part#: 270406 Qty: 2$18.21 |
| 4 | 14059311 | 2 | NUT | $1.49 | | |
Part#: 14059311 Qty: 2$1.49 |
| 5 | 281237 | 1 | RH CATALYTIC CONVERTER MOUNTING BRACKET -After depletion order compl. ref. 28- -Applicable until depletion- | | | |
Part#: 281237 Qty: 1 |
| 6 | 281238 | 1 | LH CATALYTIC CONVERTER MOUNTING BRACKET -After depletion order compl. ref. 29- -Applicable until depletion- | | | |
Part#: 281238 Qty: 1 |
| 7 | 16044224 | 4 | SCREW -M8 X 50- -After depletion order compl. ref. 28-29- -Applicable until depletion- | | | |
Part#: 16044224 Qty: 4 |
| 8 | 302221 | 2 | FRONT OXYGEN SENSOR -L. 500 mm- | $268.95 | | |
Part#: 302221 Qty: 2$268.95 |
| 9 | 180915 | 2 | REAR OXYGEN SENSOR -L. 1200 mm- | $213.53 | | |
Part#: 180915 Qty: 2$213.53 |
| 10 | 290883 | 1 | CENTRAL EXTENSION | $1620.69 | | |
Part#: 290883 Qty: 1$1620.69 |
| 11 | 275465 | 2 | GASKET | $106.80 | | |
Part#: 275465 Qty: 2$106.80 |
| 12 | 290514 | 1 | COMPL. RH EXHAUST MANIFOLD -No longer supplied- -Replaced by 295005- | | | |
Part#: 290514 Qty: 1 |
| 12 | 295005 | 1 | COMPL. RH EXHAUST MANIFOLD | | | |
Part#: 295005 Qty: 1 |
| 13 | 290515 | 1 | COMPL. LH EXHAUST MANIFOLD -No longer supplied- -Replaced by 295006- | | | |
Part#: 290515 Qty: 1 |
| 13 | 295006 | 1 | COMPL. LH EXHAUST MANIFOLD | | | |
Part#: 295006 Qty: 1 |
| 14 | 210971 | 24 | NUT | $2.50 | | |
Part#: 210971 Qty: 24$2.50 |
| 15 | 212702 | 4 | GASKET | $12.13 | | |
Part#: 212702 Qty: 4$12.13 |
| 16 | 286793 | 1 | RH CATALYTIC CONVERTER MOUNTING BRACKET -After depletion order compl. ref. 28- -Applicable until depletion- | | | |
Part#: 286793 Qty: 1 |
| 17 | 286794 | 1 | LH CATALYTIC CONVERTER MOUNTING BRACKET -After depletion order compl. ref. 29- -Applicable until depletion- | | | |
Part#: 286794 Qty: 1 |
| 18 | 272264 | 2 | CLAMP | $45.69 | | |
Part#: 272264 Qty: 2$45.69 |
| 19 | 10441190 | 2 | BRACKET WITH SHEATH -No longer supplied- -Replaced by 10441490- | $3.00 | | |
Part#: 10441190 Qty: 2$3.00 |
| 19 | 10441490 | 2 | BRACKET WITH SHEATH | | | |
Part#: 10441490 Qty: 2 |
| 20 | 12604279 | 3 | WASHER | | | |
Part#: 12604279 Qty: 3 |
| 21 | 15896211 | 3 | NUT | | | |
Part#: 15896211 Qty: 3 |
| 22 | 282998 | 2 | RING CLAMP | | | |
Part#: 282998 Qty: 2 |
| 23 | 232777 | 1 | STUD BOLT | | | |
Part#: 232777 Qty: 1 |
| 24 | 10419501 | 1 | BRACKET | | | |
Part#: 10419501 Qty: 1 |
| 25 | 231616 | 1 | SCREW -M6 X 14- | $1.75 | | |
Part#: 231616 Qty: 1$1.75 |
| 26 | 292945 | 2 | NUT | $13.23 | | |
Part#: 292945 Qty: 2$13.23 |
| 27 | 292946 | 2 | SPACER | $7.78 | | |
Part#: 292946 Qty: 2$7.78 |
| 28 | 296303 | 1 | COMPLETE RH CATALYTIC CONVERTER MOUNTING BRACKET | | | |
Part#: 296303 Qty: 1 |
| 29 | 296304 | 1 | COMPLETE LH CATALYTIC CONVERTER MOUNTING BRACKET | | | |
Part#: 296304 Qty: 1 |
