Table 21

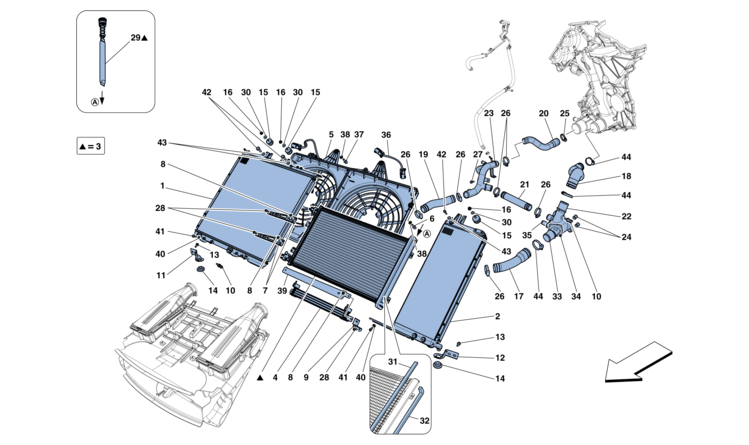

Table 21 - COOLING - RADIATORS AND AIR DUCTS

Ref.Part#Qty.DescriptionPrice
13030571
ENGINE WATER RADIATOR

Part#: 303057 Qty: 1

22772271
ENGINE OIL RADIATOR
$2984.04

Part#: 277227 Qty: 1$2984.04

32654891
AC FILTER CONDENSER

Part#: 265489 Qty: 1

42612161
POWER STEERING FLUID RADIATOR -Applicable until depletion-

Part#: 261216 Qty: 1

43104241
POWER STEERING FLUID RADIATOR -Applicable after depletion of 261216-

Part#: 310424 Qty: 1

52863941
COWL WITH ELECTRIC FANS -Plastic- -Applicable up to Ass. No. 109420- -Applicable until depletion-

Part#: 286394 Qty: 1

52959141
COWL WITH ELECTRIC FANS -In metal- -Applicable from Ass. No. 109421 up to Ass. No. 110816- -Applicable after depletion of 286394- -Applicable until depletion-

Part#: 295914 Qty: 1

52950491
COWL WITH ELECTRIC FANS -Plastic- -Applicable from Ass. No. 110817- -Applicable after depletion of 295914-

Part#: 295049 Qty: 1

6162852276
SCREW -Applicable for cowl Part No. 295049 ref. 5- -Applicable from Ass. No. 110817-

Part#: 16285227 Qty: 6

72686562
CONDENSER MOUNTING BRACKET

Part#: 268656 Qty: 2

8130460126
NUT

Part#: 13046012 Qty: 6

92768821
LH POWER STEERING FLUID RADIATOR MOUNTING BRACKET -Applicable up to Ass. No. 111571-

Part#: 276882 Qty: 1

92978461
LH POWER STEERING FLUID RADIATOR MOUNTING BRACKET -Applicable from Ass. No. 111572-

Part#: 297846 Qty: 1

92768811
RH POWER STEERING FLUID RADIATOR MOUNTING BRACKET -Applicable up to Ass. No. 111571-

Part#: 276881 Qty: 1

92978451
RH POWER STEERING FLUID RADIATOR MOUNTING BRACKET -Applicable from Ass. No. 111572-

Part#: 297845 Qty: 1

101801372
TEMPERATURE SENSOR
$38.94

Part#: 180137 Qty: 2$38.94

112845491
LOWER RH BRACKET

Part#: 284549 Qty: 1

122845481
LOWER LH BRACKET

Part#: 284548 Qty: 1

13162871274
SCREW -M8 X 20-

Part#: 16287127 Qty: 4

141389262
RUBBER PAD FOR PIN
$5.91

Part#: 138926 Qty: 2$5.91

152714723
PLUG

Part#: 271472 Qty: 3

16140407113
NUT
$0.39

Part#: 14040711 Qty: 3$0.39

172600801
WATER HOSE FROM VALVE TO RADIATOR
$283.09

Part#: 260080 Qty: 1$283.09

182909511
WATER HOSE FROM ENGINE TO VALVE
$512.16

Part#: 290951 Qty: 1$512.16

192586301
RETURN HOSE FROM RADIATOR
$56.63

Part#: 258630 Qty: 1$56.63

202909491
RETURN HOSE TO PUMP

Part#: 290949 Qty: 1

212704521
WATER HOSE FROM VALVE

Part#: 270452 Qty: 1

222678491
THERMOSTAT HOUSING

Part#: 267849 Qty: 1

232909501
METAL WATER RECIRCULATION CONNECTOR PIPE

Part#: 290950 Qty: 1

242673004
MOUNTING

Part#: 267300 Qty: 4

25130007901
SCREW COLLAR
$1.75

Part#: 13000790 Qty: 1$1.75

26130006907
SCREW COLLAR
$2.50

Part#: 13000690 Qty: 7$2.50

27162860241
SCREW -M6 X 16-

Part#: 16286024 Qty: 1

28162849274
SCREW -M5 X 10-

Part#: 16284927 Qty: 4

292808801
DESICCATING FILTER

Part#: 280880 Qty: 1

30126470243
WASHER
$0.77

Part#: 12647024 Qty: 3$0.77

312824691
RUBBER SHIM

Part#: 282469 Qty: 1

322825801
RUBBER SHIM

Part#: 282580 Qty: 1

332629131
THERMOSTAT/PRESSURE SWITCH
$385.99

Part#: 262913 Qty: 1$385.99

342316174
SCREW -M6 X 18-
$0.65

Part#: 231617 Qty: 4$0.65

352284381
CONNECTOR

Part#: 228438 Qty: 1

362957341
WIRING HARNESS FOR LH FAN -Applicable for cowl Part No. 295914 ref. 5- -Applicable from Ass. No. 109421 up to Ass. No. 110816-

Part#: 295734 Qty: 1

37162818275
SCREW -Applicable for cowls Part No 286394 and 295914 ref. 5- -Applicable up to Ass. No. 110816-

Part#: 16281827 Qty: 5

37162852275
SCREW

Part#: 16285227 Qty: 5

381264377811
WASHER
$0.30

Part#: 12643778 Qty: 11$0.30

392894451
POWER STEERING RADIATOR SHIELD -Applicable from Ass. No. 111572-

Part#: 289445 Qty: 1

40126381783
WASHER
$1.00

Part#: 12638178 Qty: 3$1.00

41162851273
SCREW -M5 X 16-
$1.45

Part#: 16285127 Qty: 3$1.45

42162818274
SCREW

Part#: 16281827 Qty: 4

431664674
WASHER
$1.16

Part#: 166467 Qty: 4$1.16

442963453
COLLAR
$2.43

Part#: 296345 Qty: 3$2.43
