Ferrari Philadelphia Parts

Table 37

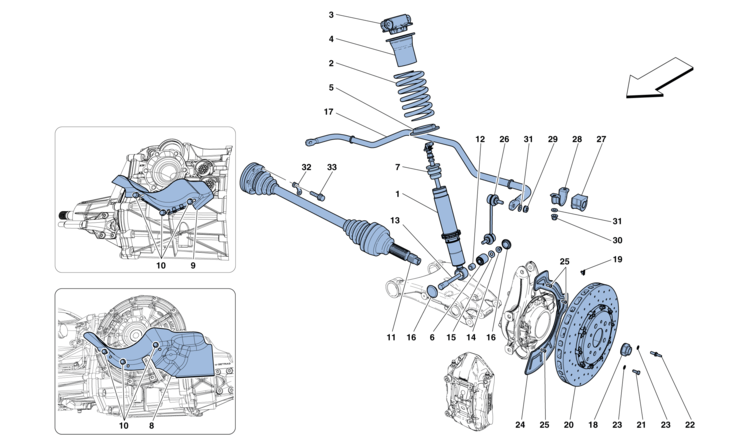

Table 37 - REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

Ref.Part#Qty.DescriptionPrice
12863462
REAR SHOCK ABSORBER
$2579.95

Part#: 286346 Qty: 2$2579.95

22673762
SPRING

Part#: 267376 Qty: 2

32743082
STOP CAP
$328.25

Part#: 274308 Qty: 2$328.25

42125172
UPPER SPACER
$22.10

Part#: 212517 Qty: 2$22.10

52112362
LOWER SPACER
$41.74

Part#: 211236 Qty: 2$41.74

61576302
BALL JOINT
$163.04

Part#: 157630 Qty: 2$163.04

72812212
ENDSTOP BUSH
$51.21

Part#: 281221 Qty: 2$51.21

82594611
RH AXLE SHAFT HEAT SHIELD

Part#: 259461 Qty: 1

92487071
LH AXLE SHAFT HEAT SHIELD

Part#: 248707 Qty: 1

10162969246
SCREW -M6 X 14-
$0.50

Part#: 16296924 Qty: 6$0.50

112746352
AXLE SHAFT

Part#: 274635 Qty: 2

122378212
BUSHING
$5.10

Part#: 237821 Qty: 2$5.10

132469622
SPECIAL SCREW
$29.39

Part#: 246962 Qty: 2$29.39

142552712
NUT
$1.30

Part#: 255271 Qty: 2$1.30

15126469212
WASHER
$0.95

Part#: 12646921 Qty: 2$0.95

16145079876
CAP
$2.90

Part#: 14507987 Qty: 6$2.90

172627901
STABILISER BAR

Part#: 262790 Qty: 1

182037802
NUT
$31.25

Part#: 203780 Qty: 2$31.25

192047812
CLIP

Part#: 204781 Qty: 2

202788142
BRAKE DISC

Part#: 278814 Qty: 2

212281312
SCREW -M8 X 20-

Part#: 228131 Qty: 2

221043702
SCREW
$1.50

Part#: 104370 Qty: 2$1.50

232281324
WASHER

Part#: 228132 Qty: 4

242574241
RH DISC SHIELD

Part#: 257424 Qty: 1

242574231
LH DISC SHIELD
$82.42

Part#: 257423 Qty: 1$82.42

252506576
SCREW -M6 X 14-

Part#: 250657 Qty: 6

262423921
LH SPHERICAL TIE-ROD
$180.78

Part#: 242392 Qty: 1$180.78

262423911
RH SPHERICAL TIE-ROD
$174.77

Part#: 242391 Qty: 1$174.77

272362422
STABILISER BAR BUSH

Part#: 236242 Qty: 2

282447782
RETAINER BRACKET

Part#: 244778 Qty: 2

29121647142
NUT
$1.50

Part#: 12164714 Qty: 2$1.50

30125783212
NUT

Part#: 12578321 Qty: 2

31126014744
WASHER
$0.25

Part#: 12601474 Qty: 4$0.25

322203256
SHIM PLATE
$3.99

Part#: 220325 Qty: 6$3.99

3323759012
SCREW
$5.25

Part#: 237590 Qty: 12$5.25
