Ferrari Philadelphia Parts

Table 140

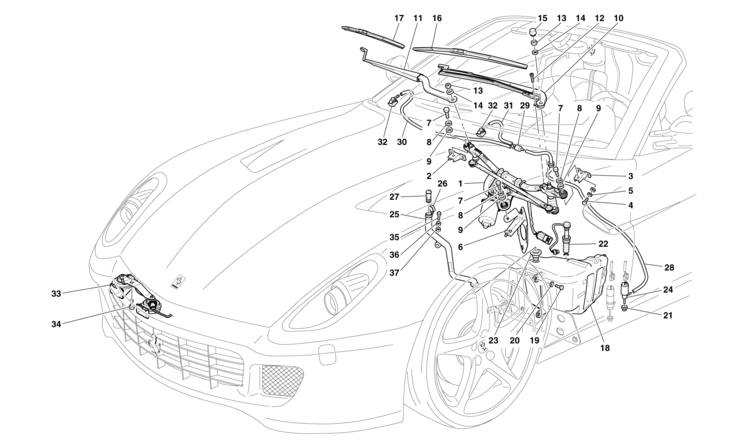

Table 140 - WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS

Ref.Part#Qty.DescriptionPrice
1685778001
COMPLETE WINDSCREEN WIPER LINKAGE -Not for GD-

Part#: 68577800 Qty: 1

1691340001
COMPLETE WINDSCREEN WIPER LINKAGE -Applicable for GD-

Part#: 69134000 Qty: 1

2693616001
CENTRAL BRACKET

Part#: 69361600 Qty: 1

3690174001
LATERAL BRACKET -Not for GD-

Part#: 69017400 Qty: 1

3691342001
LATERAL BRACKET -Applicable for GD-

Part#: 69134200 Qty: 1

4160433244
SCREW
$1.05

Part#: 16043324 Qty: 4$1.05

5126467244
WASHER
$0.25

Part#: 12646724 Qty: 4$0.25

6690173001
WINDSCREEN WIPER MOTOR MOUNTING BRACKET -Not for GD-

Part#: 69017300 Qty: 1

6698662001
WINDSCREEN WIPER MOTOR MOUNTING BRACKET -Applicable for GD-

Part#: 69866200 Qty: 1

7109027243
SCREW

Part#: 10902724 Qty: 3

8111946743
WASHER

Part#: 11194674 Qty: 3

9126406243
WASHER
$0.39

Part#: 12640624 Qty: 3$0.39

10812043001
DRIVER SIDE WIPER ARM -Not for GD-

Part#: 81204300 Qty: 1

10812042001
DRIVER SIDE WIPER ARM -Applicable for GD-

Part#: 81204200 Qty: 1

11672647001
PASSENGER SIDE WIPER ARM -Not for GD-

Part#: 67264700 Qty: 1

11678431001
PASSENGER SIDE WIPER ARM -Applicable for GD-

Part#: 67843100 Qty: 1

12658641001
SCREW
$2.00

Part#: 65864100 Qty: 1$2.00

13121647142
NUT
$1.50

Part#: 12164714 Qty: 2$1.50

14659176002
WASHER

Part#: 65917600 Qty: 2

15158118872
CAP
$9.67

Part#: 15811887 Qty: 2$9.67

16805349001
DRIVER SIDE WINDSCREEN WIPER BLADE -Not for GD-
$115.00

Part#: 80534900 Qty: 1$115.00

16805390001
DRIVER SIDE WINDSCREEN WIPER BLADE -Applicable for GD-

Part#: 80539000 Qty: 1

17805350001
PASSENGER SIDE WINDSCREEN WIPER BLADE -Not for GD-
$92.25

Part#: 80535000 Qty: 1$92.25

17805391001
PASSENGER SIDE WINDSCREEN WIPER BLADE -Applicable for GD-

Part#: 80539100 Qty: 1

18685780001
WINDSCREEN-HEADLIGHT WASHER FLUID CONTAINER -Not for USA, CDN-

Part#: 68578000 Qty: 1

18699522001
WINDSCREEN-HEADLIGHT WASHER FLUID CONTAINER -Applicable for USA, CDN-

Part#: 69952200 Qty: 1

19109025244
SCREW

Part#: 10902524 Qty: 4

201274944
WASHER
$0.65

Part#: 127494 Qty: 4$0.65

21657751001
GASKET
$5.11

Part#: 65775100 Qty: 1$5.11

22657587001
FLUID LEVEL SENSOR
$115.00

Part#: 65758700 Qty: 1$115.00

23655817001
GASKET

Part#: 65581700 Qty: 1

24653587001
WINDSCREEN WASHER PUMP
$128.38

Part#: 65358700 Qty: 1$128.38

25678929001
FILLER PIPE

Part#: 67892900 Qty: 1

26664213001
CAP
$16.08

Part#: 66421300 Qty: 1$16.08

27664214001
FILTER

Part#: 66421400 Qty: 1

28669813001
PIPE FROM ELECTRIC PUMP TO VALVE

Part#: 66981300 Qty: 1

29616481001
CHECK VALVE
$77.11

Part#: 61648100 Qty: 1$77.11

30669814001
PIPE FROM VALVE TO RH NOZZLE

Part#: 66981400 Qty: 1

31669815001
PIPE FROM VALVE TO LH NOZZLE

Part#: 66981500 Qty: 1

32651910002
SPRAY NOZZLE
$7.50

Part#: 65191000 Qty: 2$7.50

332047041
HORN
$36.37

Part#: 204704 Qty: 1$36.37

34138363241
SCREW
$1.65

Part#: 13836324 Qty: 1$1.65

35109778241
SCREW

Part#: 10977824 Qty: 1

361274931
WASHER
$0.10

Part#: 127493 Qty: 1$0.10

37611487001
WASHER

Part#: 61148700 Qty: 1
