Ferrari Philadelphia Parts

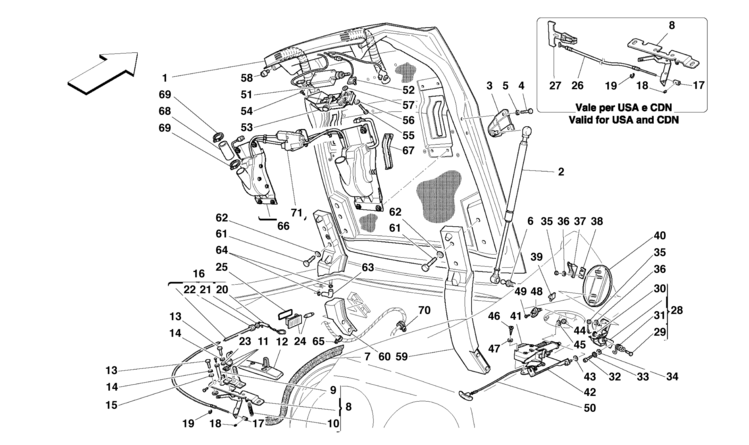

Table 116

Table 116 - BOOT DOOR AND PETROL COVER

Ref.Part#Qty.DescriptionPrice
1687102001
COMPLETE TRUNK DOOR

Part#: 68710200 Qty: 1

2690593002
SHOCK ABSORBER FOR HOOD SUPPORT
$34.76

Part#: 69059300 Qty: 2$34.76

3688580002
BRACKET

Part#: 68858000 Qty: 2

4109778244
SCREW

Part#: 10977824 Qty: 4

5126378014
WASHER

Part#: 12637801 Qty: 4

6691064002
PIN

Part#: 69106400 Qty: 2

7685485001
BONNET GASKET

Part#: 68548500 Qty: 1

8664660001
INNER DEVICE FOR HOOD UNLOCK -Not as spare part- -Replaced by 69411200-

Part#: 66466000 Qty: 1

8694112001
INNER DEVICE FOR HOOD UNLOCK

Part#: 69411200 Qty: 1

9637093001
ROLL

Part#: 63709300 Qty: 1

10637095001
SPRING

Part#: 63709500 Qty: 1

11631436001
STRIKER

Part#: 63143600 Qty: 1

12638617001
STRIKER PLATE OVERLAP

Part#: 63861700 Qty: 1

13109020874
SCREW

Part#: 10902087 Qty: 4

141274944
WASHER
$0.65

Part#: 127494 Qty: 4$0.65

15126476242
WASHER

Part#: 12647624 Qty: 2

16690592001
COMPLETE EMERGENCY CABLE

Part#: 69059200 Qty: 1

17602766071
CONNECTION -Q.ty 2 for cars USA and CDN-
$64.45

Part#: 60276607 Qty: 1$64.45

18602768051
DOWEL -Q.ty 2 for cars USA and CDN-
$1.22

Part#: 60276805 Qty: 1$1.22

19110876761
FLEXIBLE RING -Q.ty 2 for cars USA and CDN-

Part#: 11087676 Qty: 1

20693066001
CURVED PIPE

Part#: 69306600 Qty: 1

21161023101
NUT

Part#: 16102310 Qty: 1

222121911
NUT
$5.98

Part#: 212191 Qty: 1$5.98

23126476242
WASHER

Part#: 12647624 Qty: 2

241395171
ROOF LIGHT

Part#: 139517 Qty: 1

251578721
GASKET

Part#: 157872 Qty: 1

261865001
CABLE FOR HANDLE -Valid for USA and CDN-

Part#: 186500 Qty: 1

27664039001
HANDLE FOR SAFETY CHILDREN -Valid for USA and CDN-

Part#: 66403900 Qty: 1

28645759001
COMPLETE LID HINGE

Part#: 64575900 Qty: 1

29631964001
PIN

Part#: 63196400 Qty: 1

30110876761
FLEXIBLE RING

Part#: 11087676 Qty: 1

31631965001
SPRING

Part#: 63196500 Qty: 1

32143041242
SCREW
$0.75

Part#: 14304124 Qty: 2$0.75

33126378782
WASHER

Part#: 12637878 Qty: 2

34126052742
WASHER

Part#: 12605274 Qty: 2

35130460114
NUT
$0.50

Part#: 13046011 Qty: 4$0.50

36135791014
WASHER

Part#: 13579101 Qty: 4

37666799001
PLATE

Part#: 66679900 Qty: 1

38668049002
SPACER

Part#: 66804900 Qty: 2

39638799002
RUBBER PAD
$16.90

Part#: 63879900 Qty: 2$16.90

40685820001
FUEL INLET LID

Part#: 68582000 Qty: 1

41653959001
LID ACTUATOR
$184.81

Part#: 65395900 Qty: 1$184.81

42666798001
BRACKET

Part#: 66679800 Qty: 1

43615294002
GASKET

Part#: 61529400 Qty: 2

441686982
NUT
$1.31

Part#: 168698 Qty: 2$1.31

45126378242
WASHER
$0.50

Part#: 12637824 Qty: 2$0.50

46156412752
SCREW

Part#: 15641275 Qty: 2

47144962772
WASHER
$0.84

Part#: 14496277 Qty: 2$0.84

481530691
SWITCH
$8.25

Part#: 153069 Qty: 1$8.25

49159169771
SCREW
$1.08

Part#: 15916977 Qty: 1$1.08

50666782001
FUEL INLET LID SAFETY CABLE

Part#: 66678200 Qty: 1

51631911001
ACTUATOR

Part#: 63191100 Qty: 1

521739771
MICRO-SWITCH

Part#: 173977 Qty: 1

53631433001
BONNET LOCK
$316.75

Part#: 63143300 Qty: 1$316.75

54159038702
SCREW

Part#: 15903870 Qty: 2

55109032243
SCREW
$0.30

Part#: 10903224 Qty: 3$0.30

56106154743
WASHER
$0.23

Part#: 10615474 Qty: 3$0.23

57105194243
WASHER
$0.39

Part#: 10519424 Qty: 3$0.39

58671211002
RUBBER

Part#: 67121100 Qty: 2

59687095001
R.H. SEMI-LEVER -Arrives also with motorized carrier 68708600- -Tab. 118 Ref. 1-

Part#: 68709500 Qty: 1

60687096001
L.H. SEMI-LEVER -Arrives also with motorized carrier 68708600- -Tab. 118 Ref. 1-

Part#: 68709600 Qty: 1

61162877318
SCREW

Part#: 16287731 Qty: 8

62126252018
WASHER

Part#: 12625201 Qty: 8

63690784002
WATER EXHAUST TUBE

Part#: 69078400 Qty: 2

64130004904
SCREW COLLAR
$1.90

Part#: 13000490 Qty: 4$1.90

65104414901
BRACKET WITH SHEATH

Part#: 10441490 Qty: 1

66688262001
COMPLETE REAR LOCK

Part#: 68826200 Qty: 1

67693366001
R.H. AESTHETIC COVER

Part#: 69336600 Qty: 1

67693367001
L.H. AESTHETIC COVER

Part#: 69336700 Qty: 1

68693485002
WATER EXHAUST TUBE

Part#: 69348500 Qty: 2

691809574
COLLAR FOR SLEEVE

Part#: 180957 Qty: 4

70104411901
BRACKET WITH SHEATH
$3.00

Part#: 10441190 Qty: 1$3.00

712141041
ELECTRIC MOTOR

Part#: 214104 Qty: 1
