Ferrari Philadelphia Parts

Table 121

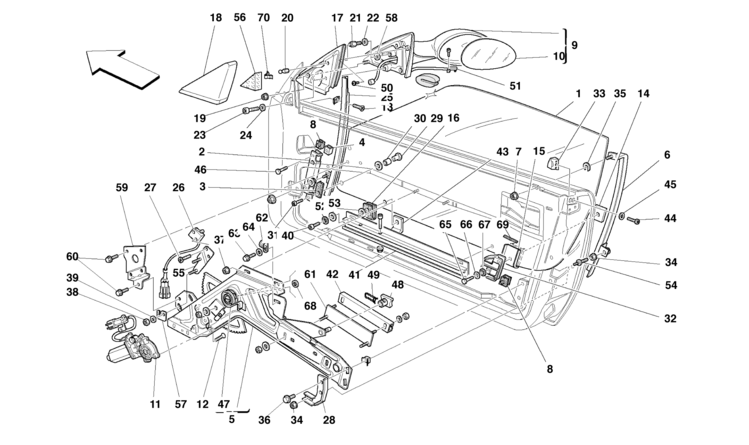

Table 121 - DOORS - POWER WINDOW AND REARVIEW MIRROR

Ref.Part#Qty.DescriptionPrice
1685433001
R.H. SIDE GLASS

Part#: 68543300 Qty: 1

1685434001
L.H. SIDE GLASS

Part#: 68543400 Qty: 1

2637681001
R.H. FRONT GUIDE SHOE
$65.89

Part#: 63768100 Qty: 1$65.89

2637682001
L.H. FRONT GUIDE SHOE

Part#: 63768200 Qty: 1

3634869002
GASKET

Part#: 63486900 Qty: 2

4638901008
GASKET
$8.91

Part#: 63890100 Qty: 8$8.91

5660861001
COMPLETE R.H. DEVICE FOR GLASS LIFT

Part#: 66086100 Qty: 1

5660862001
COMPLETE L.H. DEVICE FOR GLASS LIFT

Part#: 66086200 Qty: 1

6645797001
R.H. REAR GUIDE

Part#: 64579700 Qty: 1

6645798001
L.H. REAR GUIDE

Part#: 64579800 Qty: 1

7130461142
NUT

Part#: 13046114 Qty: 2

8637679008
CLIP
$23.54

Part#: 63767900 Qty: 8$23.54

9647152101
R.H. OUTER REAR VIEW MIRROR -Not for USA, CDN, AUS and GB-

Part#: 64715210 Qty: 1

9652487101
R.H. OUTER REAR VIEW MIRROR -Valid for USA and CDN-

Part#: 65248710 Qty: 1

9653202101
R.H. OUTER REAR VIEW MIRROR -Valid for AUS-

Part#: 65320210 Qty: 1

9652423101
R.H. OUTER REAR VIEW MIRROR -Valid for GB-

Part#: 65242310 Qty: 1

9647153101
L.H. OUTER REAR VIEW MIRROR -Not for USA, CDN, AUS and GB-

Part#: 64715310 Qty: 1

9652488101
L.H. OUTER REAR VIEW MIRROR -Valid for USA and CDN-

Part#: 65248810 Qty: 1

9653203101
L.H. OUTER REAR VIEW MIRROR -Valid for AUS-

Part#: 65320310 Qty: 1

9652424101
L.H. OUTER REAR VIEW MIRROR -Valid for GB-

Part#: 65242410 Qty: 1

10662132001
R.H. OUTER REAR VIEW MIRROR GLASS -Not for USA, CDN and GD-

Part#: 66213200 Qty: 1

10662136001
R.H. OUTER REAR VIEW MIRROR GLASS -Valid for USA and CDN-

Part#: 66213600 Qty: 1

10662134001
R.H. OUTER REAR VIEW MIRROR GLASS -Valid for GD-

Part#: 66213400 Qty: 1

10662133001
L.H. OUTER REAR VIEW MIRROR GLASS -Not for GB-

Part#: 66213300 Qty: 1

10662135001
L.H. OUTER REAR VIEW MIRROR GLASS -Valid for GB-

Part#: 66213500 Qty: 1

11632118001
R.H. GLASS LIFTING MOTOR
$977.96

Part#: 63211800 Qty: 1$977.96

11632119001
L.H. GLASS LIFTING MOTOR

Part#: 63211900 Qty: 1

12159179048
SCREW

Part#: 15917904 Qty: 8

13627976002
SCREW
$1.45

Part#: 62797600 Qty: 2$1.45

14637680002
FIXING PLATE

Part#: 63768000 Qty: 2

15631688002
PRE-LOADING REGULATOR

Part#: 63168800 Qty: 2

16658073004
GASKET

Part#: 65807300 Qty: 4

17647406001
R.H. GASKET
$695.72

Part#: 64740600 Qty: 1$695.72

17647407001
L.H. GASKET

Part#: 64740700 Qty: 1

18645865001
R.H. INNER MOULDING TRIANGLE

Part#: 64586500 Qty: 1

18645864001
L.H. INNER MOULDING TRIANGLE

Part#: 64586400 Qty: 1

19130460112
NUT
$0.50

Part#: 13046011 Qty: 2$0.50

20650484002
SPHERIC HEAD NUT

Part#: 65048400 Qty: 2

21673863002
SCREW

Part#: 67386300 Qty: 2

22144961012
WASHER

Part#: 14496101 Qty: 2

23130261212
SCREW
$0.63

Part#: 13026121 Qty: 2$0.63

24144978012
WASHER

Part#: 14497801 Qty: 2

25635795001
R.H. FRONT GLASS GUIDE
$107.99

Part#: 63579500 Qty: 1$107.99

25635796001
L.H. FRONT GLASS GUIDE

Part#: 63579600 Qty: 1

261686172
MICRO-SWITCH
$118.14

Part#: 168617 Qty: 2$118.14

27156439754
SCREW

Part#: 15643975 Qty: 4

28652914001
R.H. BRACKET

Part#: 65291400 Qty: 1

28652920001
L.H. BRACKET

Part#: 65292000 Qty: 1

29629329004
BUSHING
$4.29

Part#: 62932900 Qty: 4$4.29

30629328004
SPACER
$1.22

Part#: 62932800 Qty: 4$1.22

31132973774
SCREW
$0.50

Part#: 13297377 Qty: 4$0.50

32638536001
R.H. MOVING GUIDE
$12.87

Part#: 63853600 Qty: 1$12.87

32638537001
L.H. MOVING GUIDE

Part#: 63853700 Qty: 1

33651743001
R.H. SMALL BLOCK -Not as spare part- -Replaced by 69204100-
$1.50

Part#: 65174300 Qty: 1$1.50

33692041001
R.H. SMALL BLOCK
$12.50

Part#: 69204100 Qty: 1$12.50

33651744001
L.H. SMALL BLOCK -Not as spare part- -Replaced by 69204200-

Part#: 65174400 Qty: 1

33692042001
L.H. SMALL BLOCK

Part#: 69204200 Qty: 1

34140397144
NUT

Part#: 14039714 Qty: 4

351058642
WASHER

Part#: 105864 Qty: 2

36138363244
SCREW
$1.65

Part#: 13836324 Qty: 4$1.65

371383210112
NUT
$0.55

Part#: 13832101 Qty: 12$0.55

38161017114
NUT

Part#: 16101711 Qty: 4

39144961014
WASHER

Part#: 14496101 Qty: 4

40143054242
SCREW
$2.17

Part#: 14305424 Qty: 2$2.17

41650362001
R.H. SLIDING GUIDE

Part#: 65036200 Qty: 1

41650361001
L.H. SLIDING GUIDE

Part#: 65036100 Qty: 1

42650466002
SLIDING GUIDE

Part#: 65046600 Qty: 2

43650440004
PLATE

Part#: 65044000 Qty: 4

44156878702
SCREW

Part#: 15687870 Qty: 2

45105192242
WASHER

Part#: 10519224 Qty: 2

46132973772
SCREW
$0.50

Part#: 13297377 Qty: 2$0.50

47632060002
HELICOIDAL SPRING

Part#: 63206000 Qty: 2

48640811006
SMALL BLOCK FOR GLASS GUIDE

Part#: 64081100 Qty: 6

49640812006
CLIP FOR SMALL BLOCK

Part#: 64081200 Qty: 6

50654089002
SCREW
$2.98

Part#: 65408900 Qty: 2$2.98

51658894001
OUTSIDE TEMPERATURE FEELER -L.H. Side-

Part#: 65889400 Qty: 1

521274942
WASHER
$0.65

Part#: 127494 Qty: 2$0.65

53126437244
WASHER
$0.29

Part#: 12643724 Qty: 4$0.29

54627713002
STUD
$14.72

Part#: 62771300 Qty: 2$14.72

55647493001
R.H. MICROSWITCH BRACKET

Part#: 64749300 Qty: 1

55647494001
L.H. MICROSWITCH BRACKET

Part#: 64749400 Qty: 1

56650931002
SEALING

Part#: 65093100 Qty: 2

571626062
CLIP
$1.47

Part#: 162606 Qty: 2$1.47

58126011742
WASHER
$0.26

Part#: 12601174 Qty: 2$0.26

59661770001
R.H. BRACKET

Part#: 66177000 Qty: 1

59661771001
L.H. BRACKET

Part#: 66177100 Qty: 1

60138363246
SCREW
$1.65

Part#: 13836324 Qty: 6$1.65

61650438001
R.H. INTERMEDIATE PLATE

Part#: 65043800 Qty: 1

61650439001
L.H. INTERMEDIATE PLATE

Part#: 65043900 Qty: 1

62104186012
BRACKET

Part#: 10418601 Qty: 2

63109021802
SCREW
$0.35

Part#: 10902180 Qty: 2$0.35

64126444242
WASHER
$0.50

Part#: 12644424 Qty: 2$0.50

65109032242
SCREW
$0.30

Part#: 10903224 Qty: 2$0.30

66135502772
WASHER

Part#: 13550277 Qty: 2

671274942
WASHER
$0.65

Part#: 127494 Qty: 2$0.65

68672550002
SPACER -Possible fitting-

Part#: 67255000 Qty: 2

69671930002
STRIP

Part#: 67193000 Qty: 2

70650483002
CLIP
$1.22

Part#: 65048300 Qty: 2$1.22
