Table 36

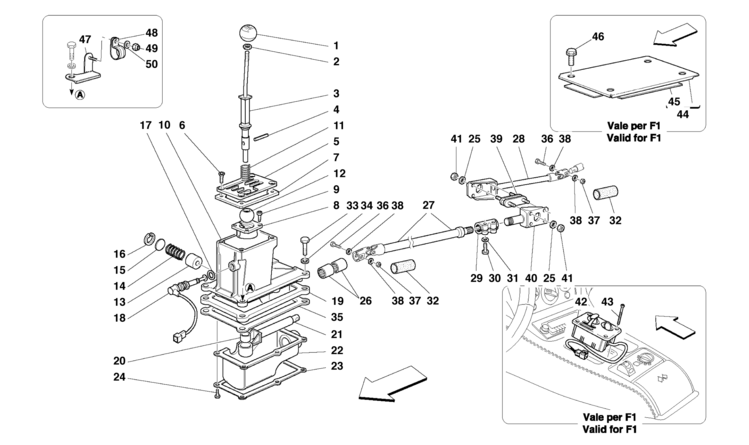

Table 36 - OUTSIDE GEARBOX CONTROLS

Ref.Part#Qty.DescriptionPrice
11567121
KNOB -Not for F1-
$216.57

Part#: 156712 Qty: 1$216.57

11654831
KNOB -Carbon- -Optional- -Not for F1-

Part#: 165483 Qty: 1

21080101
COUNTER NUT -Not for F1-
$29.89

Part#: 108010 Qty: 1$29.89

31953251
GEARBOX CONTROL LEVER -Not for F1- -Not for GD-

Part#: 195325 Qty: 1

31953321
GEARBOX CONTROL LEVER -Not for F1- -Valid for GD-

Part#: 195332 Qty: 1

41469941
PIN -Not for F1-

Part#: 146994 Qty: 1

51671271
GEAR SELECTOR -Not for F1- -Not for GD-

Part#: 167127 Qty: 1

51770231
GEAR SELECTOR -Carbon- -Optional- -Not for F1- -Not for GD-

Part#: 177023 Qty: 1

51757051
GEAR SELECTOR -Not for F1- -Valid for GD-

Part#: 175705 Qty: 1

51770241
GEAR SELECTOR -Carbon- -Optional- -Not for F1- -Valid for GD-

Part#: 177024 Qty: 1

61578834
SCREW -Not for F1- -Not for GD-
$2.15

Part#: 157883 Qty: 4$2.15

61561004
SCREW -Not for F1- -Valid for GD-

Part#: 156100 Qty: 4

71689551
GASKET -Not for F1- -Not for GD-
$38.39

Part#: 168955 Qty: 1$38.39

71718231
GASKET -Not for F1- -Valid for GD-

Part#: 171823 Qty: 1

81547411
BUSHING -Not for F1-

Part#: 154741 Qty: 1

9143030244
SCREW -Not for F1-
$1.09

Part#: 14303024 Qty: 4$1.09

101554351
TURRET -Not for F1- -Not for GD-

Part#: 155435 Qty: 1

101574531
TURRET -Not for F1- -Valid for GD-

Part#: 157453 Qty: 1

111591371
SPRING -Not for F1-

Part#: 159137 Qty: 1

121547451
BALL -Not for F1-

Part#: 154745 Qty: 1

131786921
PIN -Not for F1- -Not for GD-

Part#: 178692 Qty: 1

131547441
PIN -Not for F1- -Valid for GD-

Part#: 154744 Qty: 1

141033181
SPRING -Not for F1-
$4.65

Part#: 103318 Qty: 1$4.65

151561011
SPRING RETAINING DISC -Not for F1-

Part#: 156101 Qty: 1

161033261
SEEGER RING -Not for F1-
$0.21

Part#: 103326 Qty: 1$0.21

17126015741
WASHER -Not for F1-
$0.46

Part#: 12601574 Qty: 1$0.46

181159801
SWITCH -Not for F1-
$125.00

Part#: 115980 Qty: 1$125.00

191558131
GASKET -Not for F1- -Not for GD-

Part#: 155813 Qty: 1

191583411
GASKET -Not for F1- -Valid for GD-

Part#: 158341 Qty: 1

201274461
BALL JOINT SEAT -Not for F1-
$38.59

Part#: 127446 Qty: 1$38.59

211554801
ROCKER IN TURRET -Not for F1-

Part#: 155480 Qty: 1

221561281
RUBBER BOOT -Not for F1- -Not for GD-

Part#: 156128 Qty: 1

221579621
RUBBER BOOT -Not for F1- -Valid for GD-

Part#: 157962 Qty: 1

231561291
FRAME -Not for F1- -Not for GD-

Part#: 156129 Qty: 1

231579611
FRAME -Not for F1- -Valid for GD-

Part#: 157961 Qty: 1

24104446216
SCREW -Not for F1-

Part#: 10444621 Qty: 6

25126013748
WASHER -Not for F1-
$0.49

Part#: 12601374 Qty: 8$0.49

261839822
BUSHING -Not for F1-

Part#: 183982 Qty: 2

271699741
FRONT CONTROL BAR FOR GEAR BOX -Not for F1-

Part#: 169974 Qty: 1

281699791
REAR CONTROL BAR FOR GEAR BOX -Not for F1-

Part#: 169979 Qty: 1

291554731
CONNECTION -Not for F1-

Part#: 155473 Qty: 1

30160436242
SCREW -Not for F1-
$0.90

Part#: 16043624 Qty: 2$0.90

311274962
WASHER -Not for F1-
$0.50

Part#: 127496 Qty: 2$0.50

321608342
SHEATH -Not for F1-

Part#: 160834 Qty: 2

33160437244
SCREW -Not for F1-
$1.29

Part#: 16043724 Qty: 4$1.29

34126013744
WASHER -Not for F1-
$0.49

Part#: 12601374 Qty: 4$0.49

351597621
SPACER -Possible fitting- -Not for F1-

Part#: 159762 Qty: 1

36109030212
SCREW -Not for F1-

Part#: 10903021 Qty: 2

371029482
NUT -Not for F1-
$2.29

Part#: 102948 Qty: 2$2.29

38135502014
WASHER -Not for F1-
$1.00

Part#: 13550201 Qty: 4$1.00

391639262
FIXING PAD -Not for F1-
$505.43

Part#: 163926 Qty: 2$505.43

401699761
BAR FIXING -Not for F1-

Part#: 169976 Qty: 1

41140585198
NUT -Not for F1-
$1.49

Part#: 14058519 Qty: 8$1.49

422133411
F1 GEARBOX CONTROL DASHBOARD -Valid for F1- -Not for GD-

Part#: 213341 Qty: 1

422133421
F1 GEARBOX CONTROL DASHBOARD -Valid for F1- -Valid for GD-

Part#: 213342 Qty: 1

43654045004
SCREW -Valid for F1-
$0.77

Part#: 65404500 Qty: 4$0.77

44652004001
COVER CLOSING TUNNEL -Valid for F1-

Part#: 65200400 Qty: 1

45652005001
INSULATION -Valid for F1-

Part#: 65200500 Qty: 1

46162870244
SCREW -Valid for F1-

Part#: 16287024 Qty: 4

471833501
BRACKET FORCABLES FIXING

Part#: 183350 Qty: 1

48104419901
BRACKET WITH SHEATH
$1.20

Part#: 10441990 Qty: 1$1.20

491029481
NUT
$2.29

Part#: 102948 Qty: 1$2.29

50126466011
WASHER

Part#: 12646601 Qty: 1
